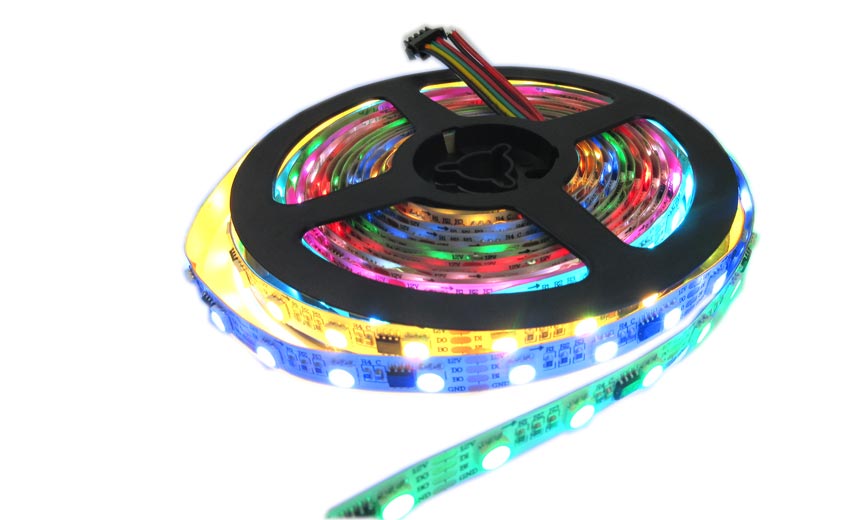

WS2818 Digital LED Strip Light
WS2818 Break-point Transmission LED Strip
1. 5V/12V available, that work on different applications of stable pressure.
2. Built-in 12V voltage regulator tube, only add a resistance to IC VDD pin when the voltage is below 12V.
3. Adopts the built-in signal reshaping circuit to achieve the signal waveform shaping, and thus no signal waveform distortion takes place.
4. Built-in power-on reset and brown-out reset circuits.
5. The gray levels of each pixel of 256 levels, and the refresh frequency reaches to 2KHz/s.
6. Serial cascading interface, data receiving and decoding are all achieved by one signal line.
7. Signal Break-point Continuous Transmission, any pixel’s failure, it won’t affect the whole display effect.
8. The distance of any two signal transmission points is less than 5 meters, there’s no extra circuits needed.
9. When the refresh rate of 30fps, the cascade number are not less than 1024 pixels.
10. Send data at speeds of 800Kbps.
11. Good consistency reliability, high cost-effective.
Share This Product
Product Details
Features
- WS2818 is a 3-channel LED driver control circuit, its internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, which achieves highly consistent color effect.

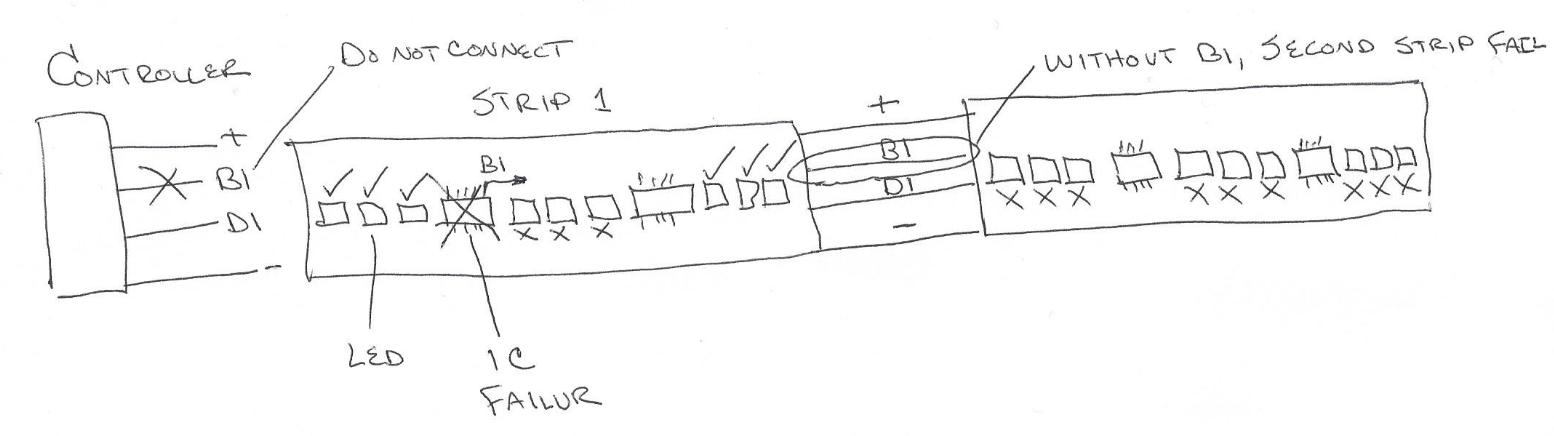

WS2818 has strong features in Signal Break-point Continuous Transmission, it adopts dual signal transmission, these signals are able to work together without interaction. The user can select the first chip DIN/BIN as the control signal input pin, and the follow-up cascade chips will automatically identify the output signal released by the first chip which not to affect the whole display effect.
WS2818 adopts Single-line Return-to-Zero communication protocol. After the chip gets power-on reset, the DIN port receive data from controller, the first chip collects initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. The data reduced 24bit after transmitted through every pixel. Since WS2818 adopts auto-reshaping transmit technology, making the pixel cascade numbers are not limited to the signal transmission, but to signal transmission speed. When BIN works as control signal receiving interface, its control data is 24bit more than the DIN interface, so as to ensure that the two ways to control the number of pixels is the same
Based on the received 24bit data, the internal data latch generates different duty cycle control signals in the OUTR, OUTG, OUTB port. All chips synchronous send the received data to each segment when the DIN port input a reset signal. It will receive new data again After the reset signal finished. Before a new reset signal received, the control signal of OUTR, OUTG, OUTB pin unchanged. The chip exports PWM data to OUTR, OUTG, OUTB pins, after receive a low voltage reset signal the time retain over 300us.
SOP8 and MSOP8 packaging available for sale.
Dimension
Specifications
12v 30 60 led/m Black /white PCB digital full color WS2818 IC RGB led strip
|
Model number
|
WTP-ws2818-60led
|
||
|
LED TYPEE
|

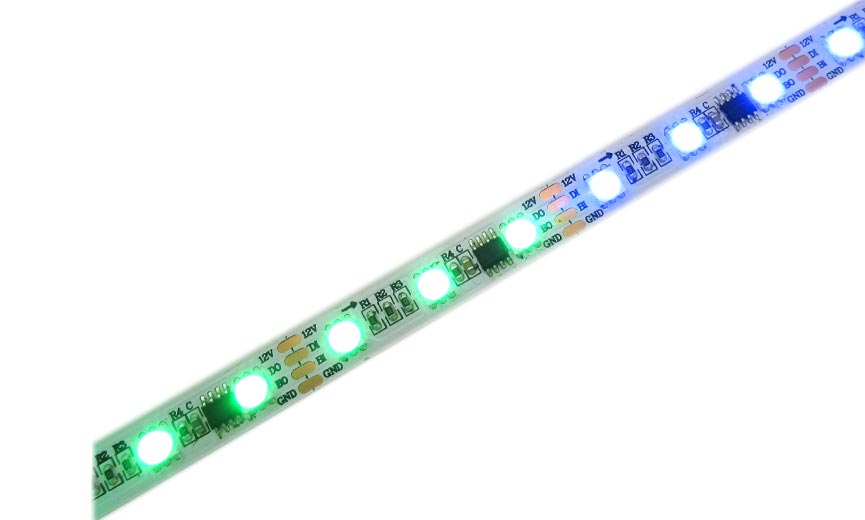

ws2818 5050SMD LEDS
|
||
|
PCB color
|
white/black PCB
|
||
|
PCB Width
|
10mm
|
||
|
View angle
|
120 degree
|
||
|
Function
|
Break-point transmission
|
||
|
POWER
|
14.4W/M
|
||
|
Voltage
|
DC12V
|
||
|
Installation
|
wiht 3M adhesive back ,easy for installation
|
||
|
IP rate
|
IP20(non -waterproof /IP65(Silicon tube waterproof )
|
||
|
Package
|
5M/reel .with anti-static bag ,or customized
|
||
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters
Connect and more details
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
