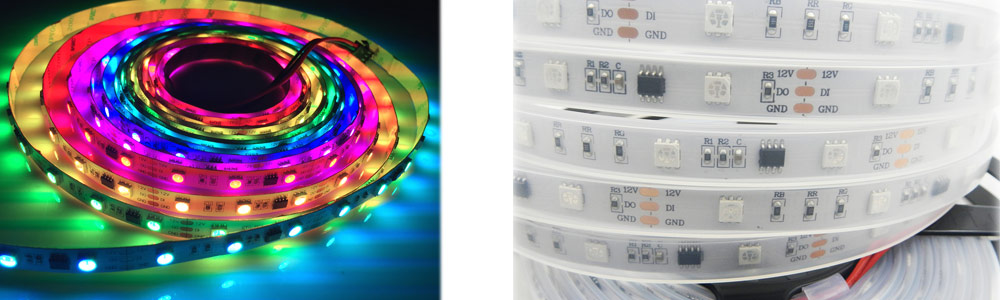

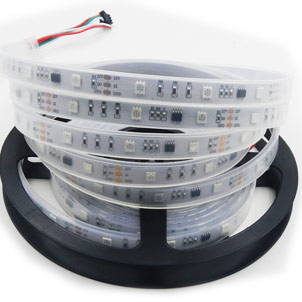

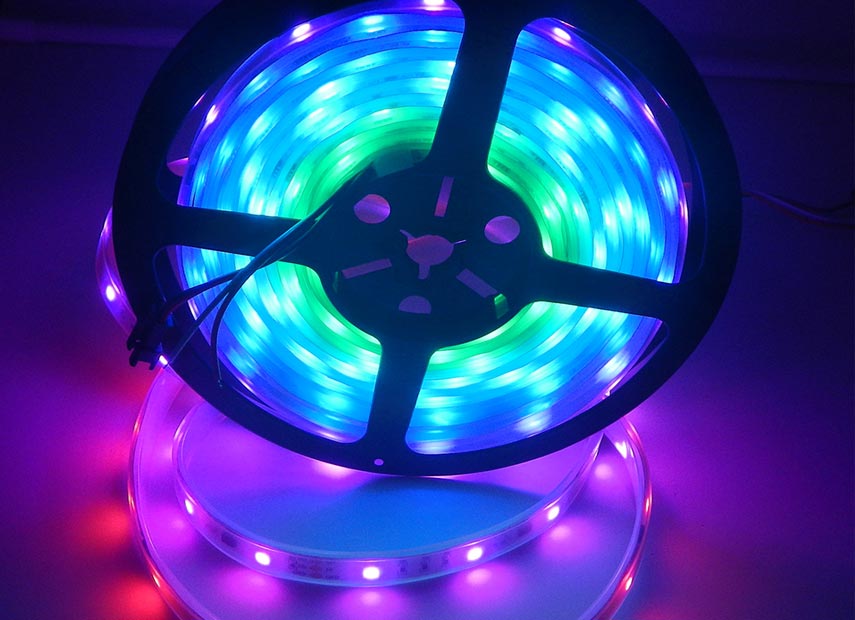

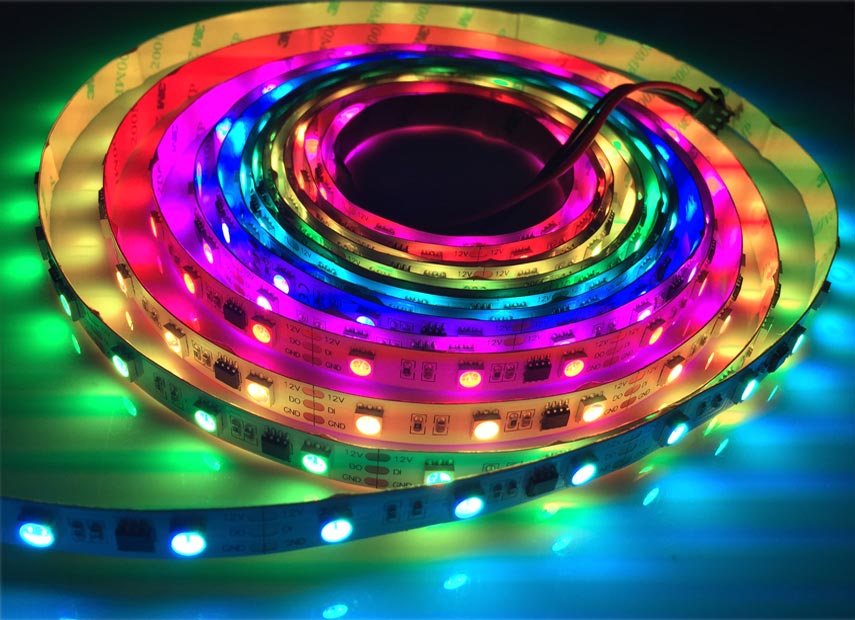

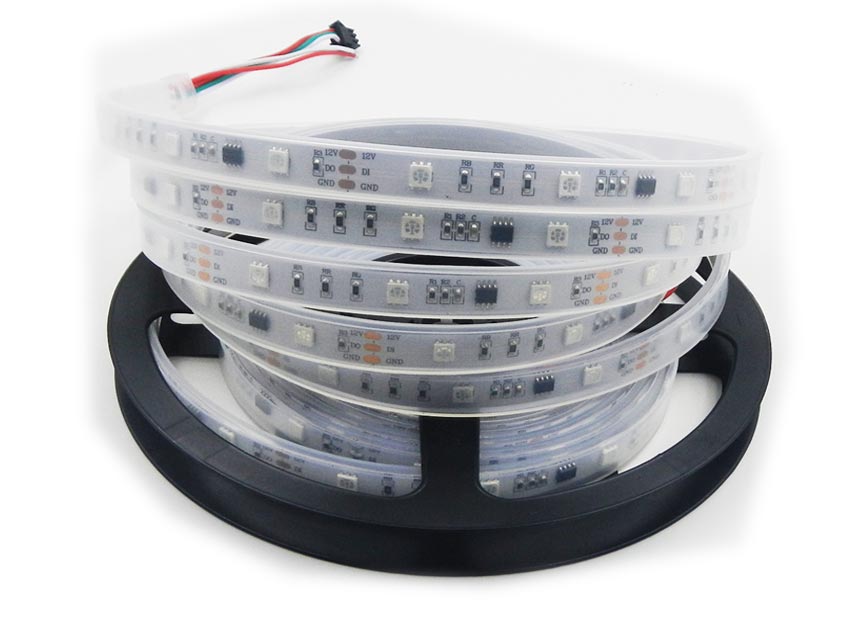

WS2811 12v Digital Led Strip
WS2811 60led Rgb LED Strip
- WS2811 LED Strip use the FPCB flexible printed circuit board to be assembly circuit boards use SMD LED lights and components to be assembled so that the thickness of the product only just like Occupy a small space and can be arbitrarily cut FPC is soft material can random winding and wound freely movable in three dimensional space without breaking suitable for irregular place and narrow space of places to install but also as any possible bending suitable for advertising decorative lighting any combination of the kinds of patterns.
- WS2811 is single signal IC one data cable DAT two power lines 256 gray scale high brightness fast data transfer fast screen refresh etc with the controller you can achieve monochrome gradient water horse racing text numbers chase English pictures animations video any effects and so on.
Share This Product
Product Details
Features
-
1)Addressable full color led strips—WS2811 IC/UCS1903 IC
2)60pcs led per one meter
3) individually control ———-1 ic& 6led chip
4)Standard Reel Length: 5meter/roll, also can be customized.

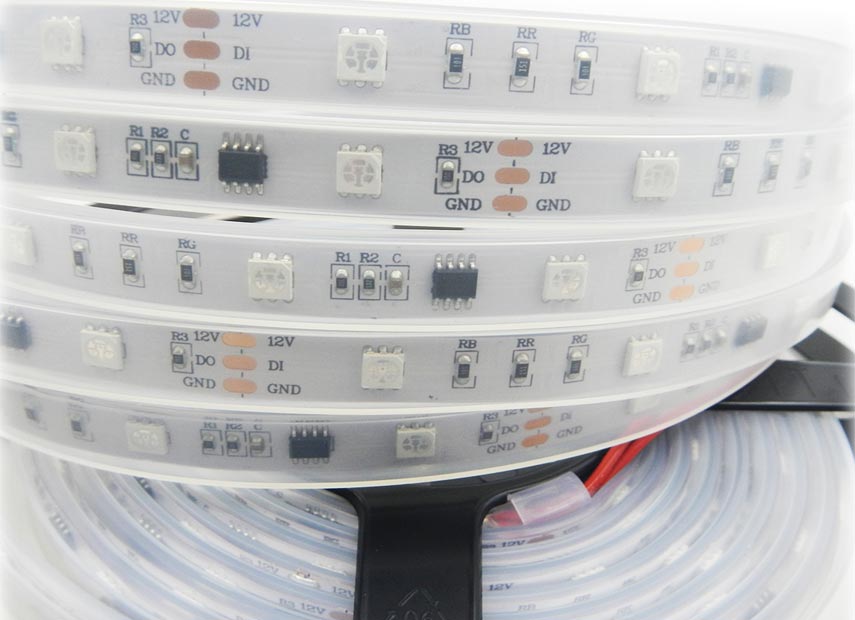

5) Cutted: 6 integrated RGB LEDs per segment, can be cutted per 6LED.
Solder to the 0.1” copper pads and you’re good to go.6)Power supply: You must use a 12 DC power supply to power this strip, do not use higher than 12V or you can destroy the entire strip

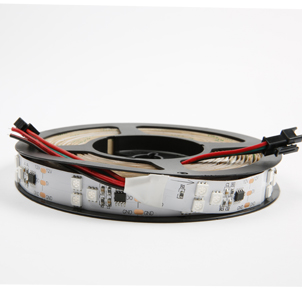

7)3PIN JST SM connector(non-waterproof)soldered in each end of strip,extra 2single wire for powering in input side
8)Customised length available

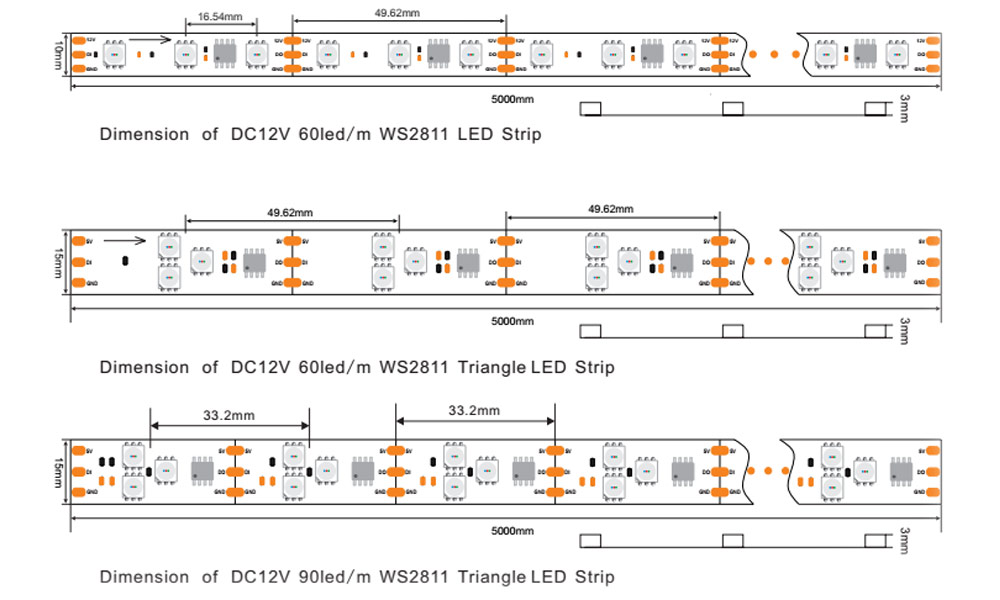

Dimension
Specifications
1 meter led strip Specifications
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
