DMX512 Rgbw LED Strip

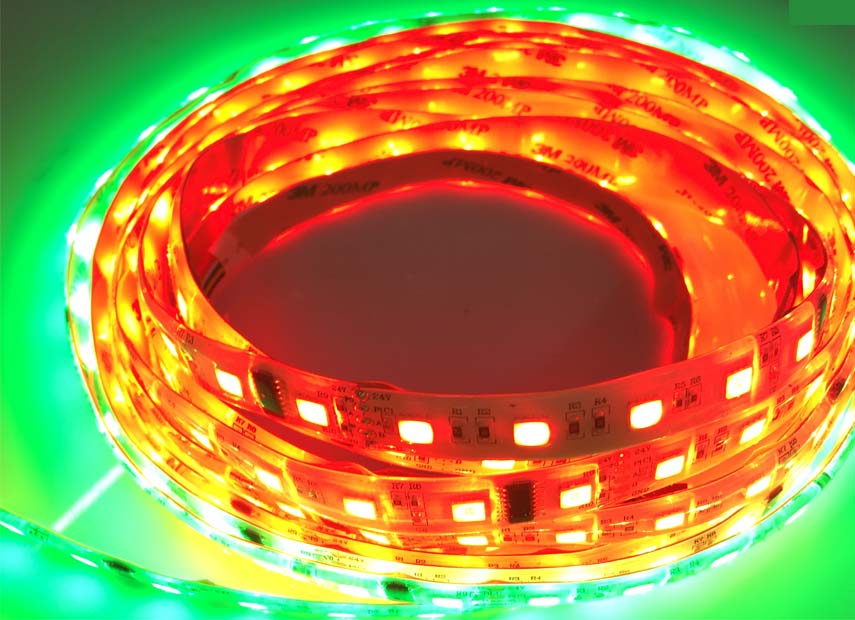

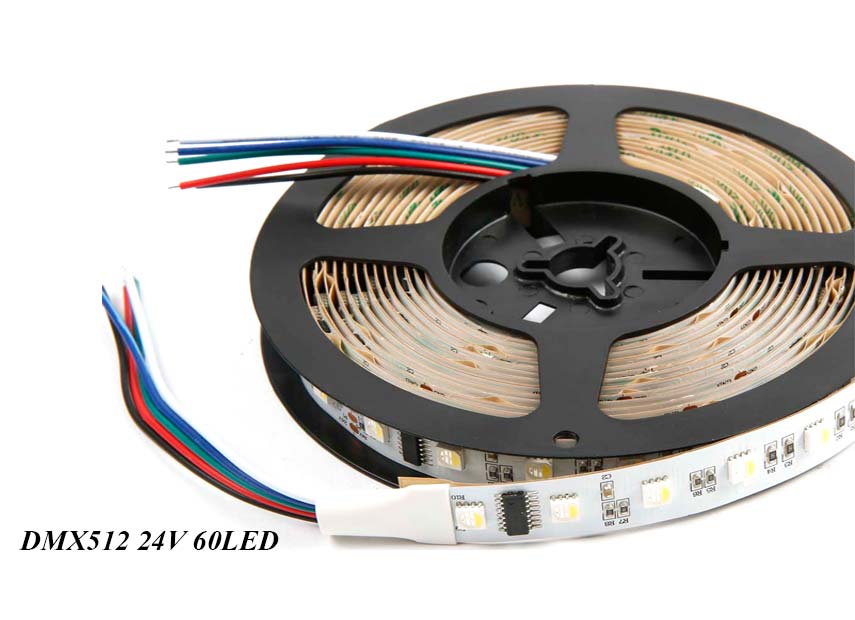

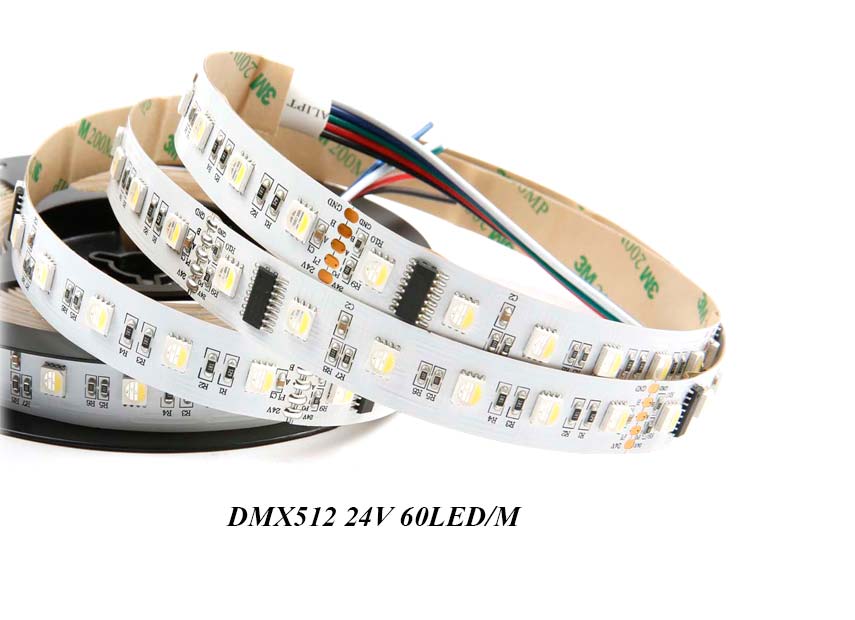

24V 60LED DMX512 RGBW LED STRIP
For dmx512 led strip:
- 1,No matter what or how many ic broken,the led strip will work normally.
DMX IC we use the 5 cable dmx512 double signal,256 gray scale high brightness fast data transfer fast screen refresh etc .Using international standards DMX512 protocol products with one and multi point damage does not affect other parts of the strips and continue work etc.
2,24V RGBW DMX512 LED strip Connection:
DC+: connect to power supply DC+
DMX+ (A): connect to controller DMX+ (A)
DMX- (B): connect to controller DMX- (B)
PI:Write the address,one address cable
GND: connect to power supply GND & controller GND
Share This Product
Product Details
Features
1, Adopt best flexibility FPC as a substrate, FPC has good electrical conductivity, heat fast, resistant to bending, can be bent into any shape

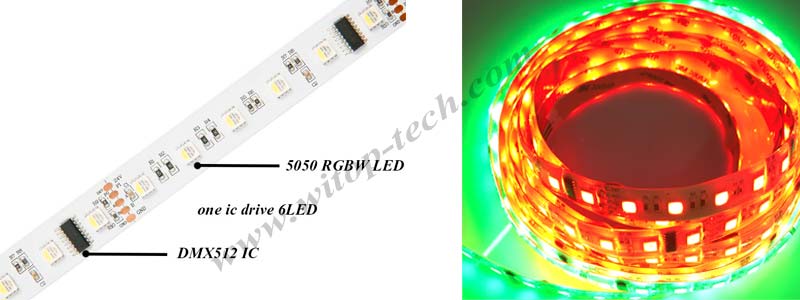

2, Using SMD5050RGBW lamp beads, you can achieve when the white light off, to ensure a high end of consistency when light white the use of external driver chip DMX512, to achieve addressable, programmable digital light efffect.
3, Compatible and extended DMX512 (1990) signal protocol, the control mode is differential parallel, built-in 485 decoding module, anti-interference
4, Support Coding after installation operation, you can program the controller to achieve any animation products
5, Low-voltage DC24V power supply, the user and crowed is more secure
6, can be made of waterproof level of diversification, Droping glue waterproof (IP54), full silicone tube casing waterproof (IP67), Silcione tube+ pouring glue (IP68), as well as the latest process machine extrusion (IP68)
7, Each group LED (6LED as one unit/group, cuttable) as one pixel, takes 4 channels (R/G/B/W each chip takes 1CH), can OEM customized color effects from our engineer.

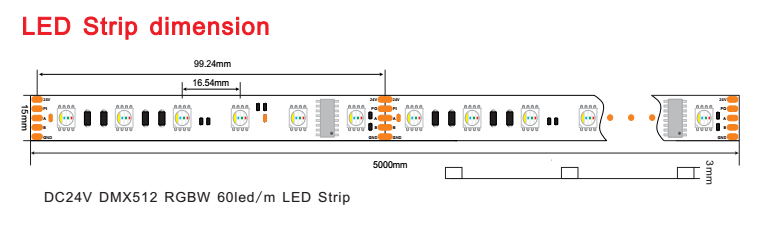

Dimension
Specifications
4in1 RGBW DMX512 LED Strip
| Item Model | WST-5050RGBW-60 |
| LED Type | SMD5050 |
| LED Quantity | 60Leds/M |
| IC Type | DMX512 |
| Wattage | 19.2W/M |
| Pixel/m | 10 Pixel/m |
| PCB Width | 15mm width, Flexible |
| Length/Reel | 5M/Reel |
| Working Voltage | DC24V |
| Package | Anti-Static Bag ,5m/spool |
| Light Color | Full Colors with RGBW 4in1 LED |
| IP Grade | IP20:Non-waterproof with 3M Adhesive tape |
| IP65:Soft glue waterproof with 3M Adhesive tape | |
| IP66:Soft tube waterproof | |
| IP68:Soft tube+glue waterproof | |
| PCB Color | White ,Black |
| Cut size | 100mm/cut |
| Working Temperature | -20 to 45 Degree |
| Warranty | 2 Years |
Related product

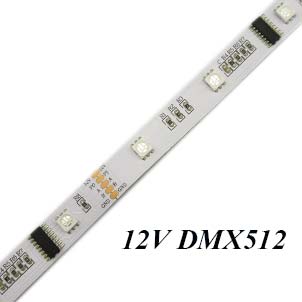

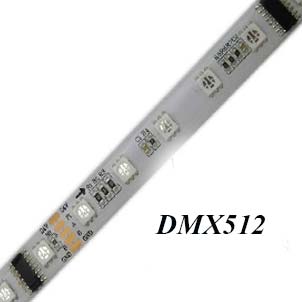

Other CIY DMX LED Strip
|
DMX512 |
30leds/m |
10IC/m |
12VDC |
Dream Color,1 pc coding wire,1pc DAT wire,or 2 DAT wires |
|
32leds/m |
32IC/m |
5VDC |
||
|
48leds/m |
8IC/m |
24VDC |
||
|
60leds/m |
10IC/m |
24VDC |
||
|
72leds/m |
24IC/m |
12VDC |
||
|
60leds/m RGBW |
10IC/m |
24VDC |
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
