SK6812 WWA Addressable RGB LED Chip

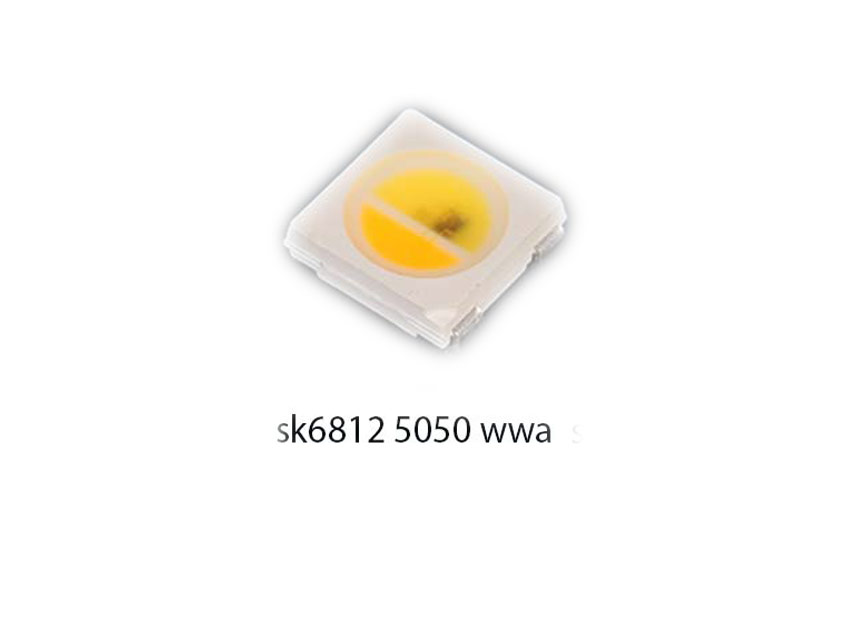

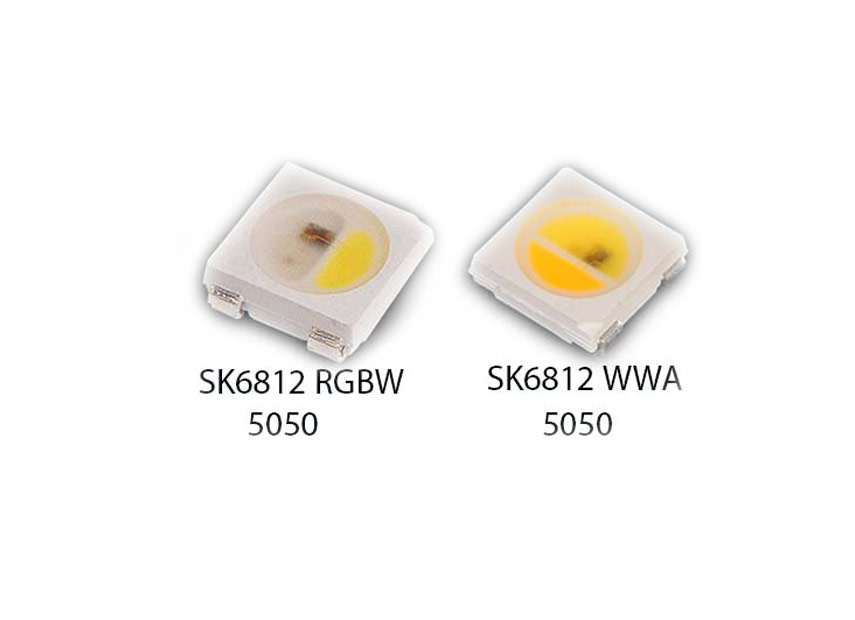

SK6812 5050 WWA LED Chip Pixel
-

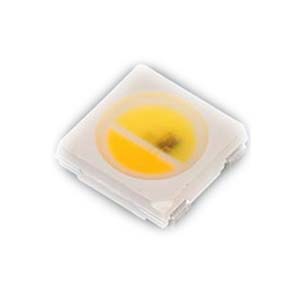

SK6812 WWA is a smart LED lamp. which the SK6812 IC chip built in the SMD5050.It has 3 color temperature controlled by SK6812 IC. It works in 5V DC and each LED works in 0.3W per piece.

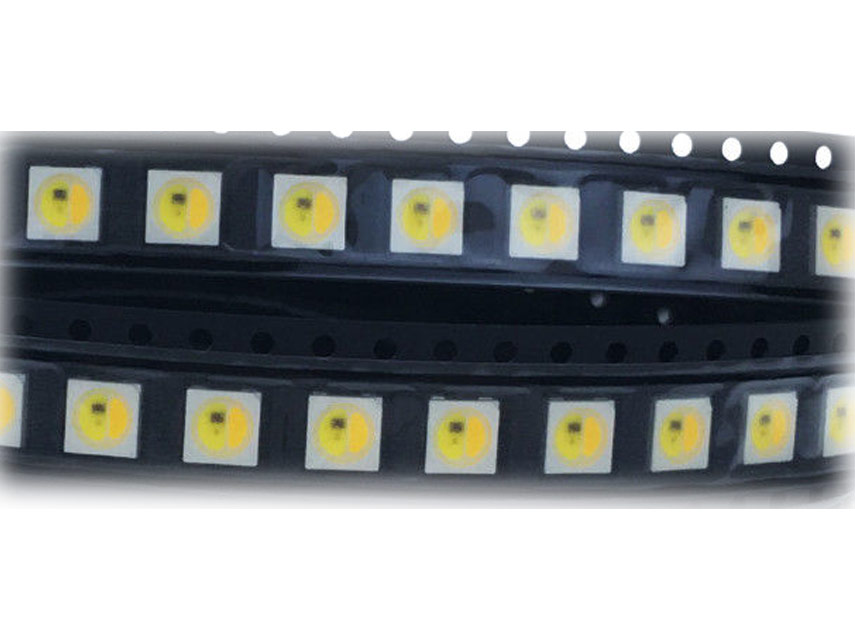

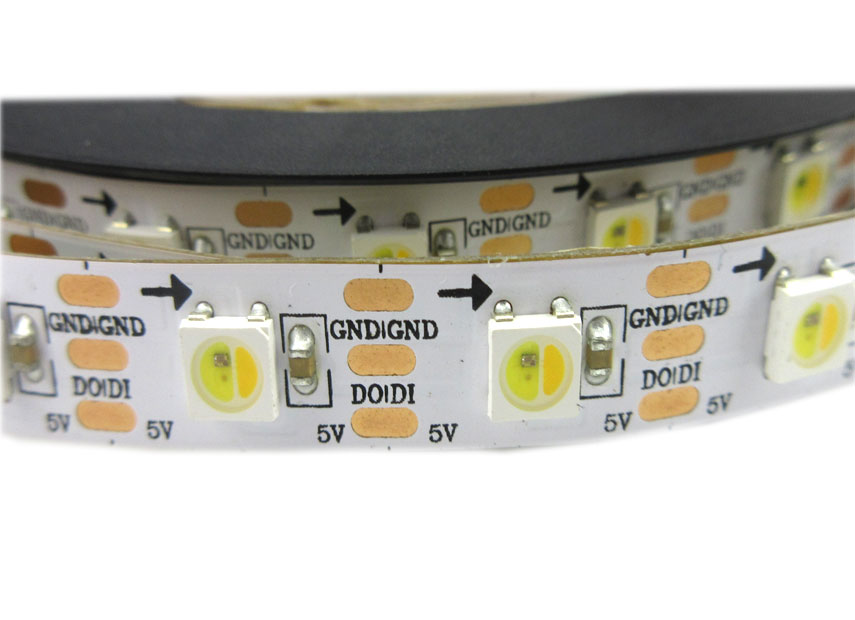

The SK6812 WWA LED strip is the smart Lamp made on a flexible LED strip. We have the 30LEDs,60LEDs and 144LEDs/m for standard type selling.
Cool White : 6000-7000K ,Warm White: 2700-3000K ,Amber: 1800-2000K.
Share This Product
Product Details
Features
-
SK6812 WWA(White+Warm white+Amber) is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The controlcircuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator. The data protocol being used is unipolar NRZ communication mode. The 24-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixelis reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limitedby signal transmission speed.The LED has a low driving voltage (which allows for environmental protection and energy saving),high brightness, scattering angle, good consistency, low power,and long life. The control circuit is integrated in the LED above
Specifications
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
