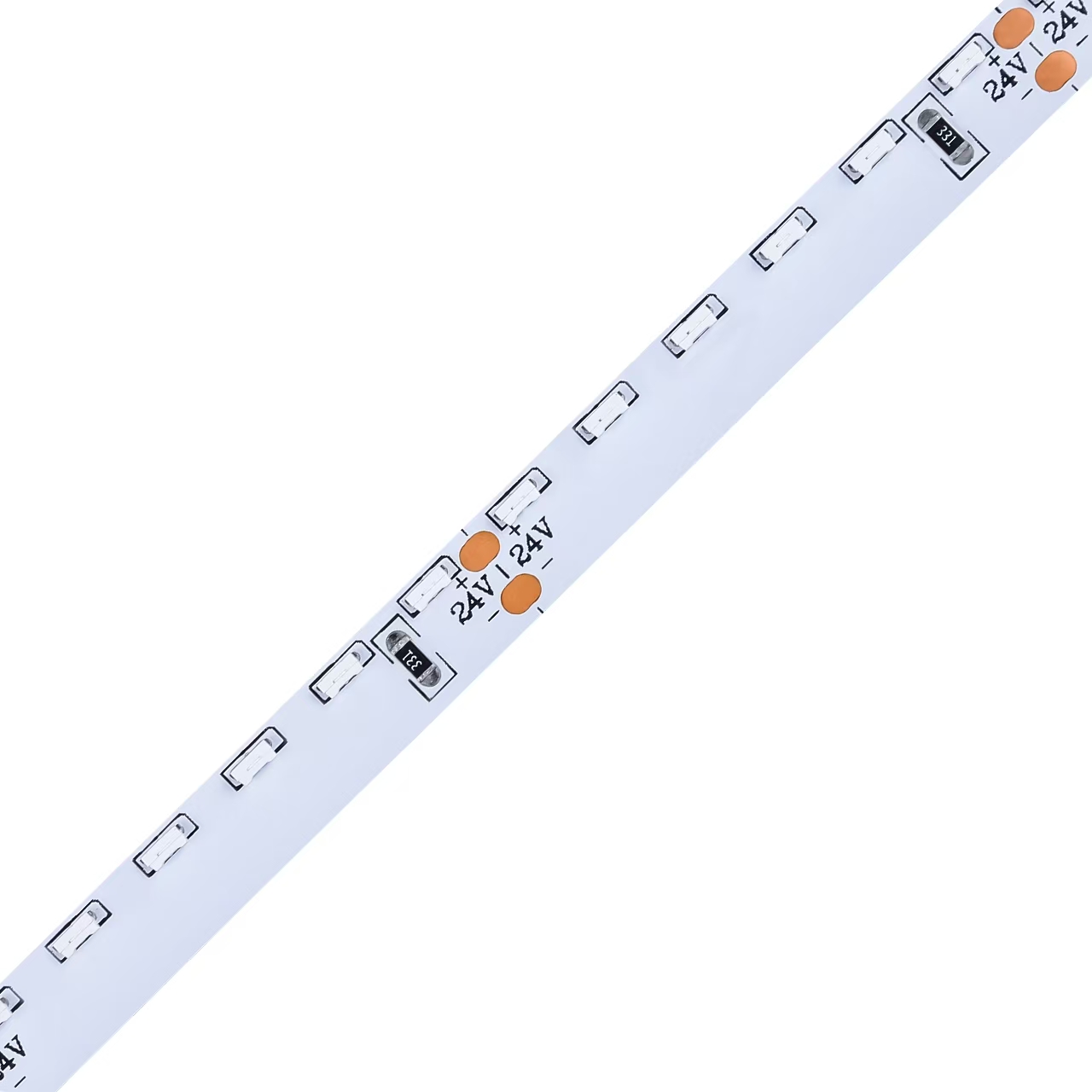

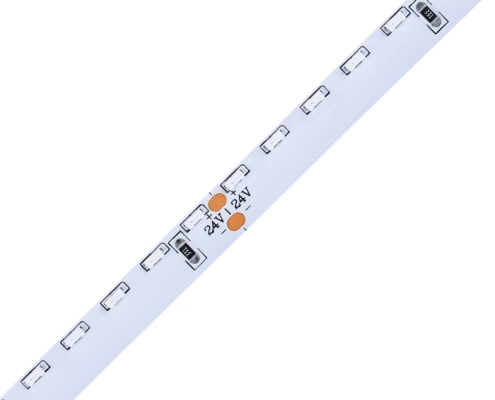

315 SMD 60/120leds 8mm
The 315 side-emitting single color light strip uses high-quality LED chips, which emits uniform light, high brightness and stability.
Its side-emitting design is suitable for linear decoration, hidden lighting and other scenes, and the light effect is soft and non-glaring.
The light strip has a light and thin structure, is easy to install, and supports cutting and customization to meet various length requirements.
Using durable materials, excellent heat dissipation performance and long life, it is widely used in home lighting, cabinet lighting and commercial space decoration.
Specification:
- 2.9W/FT(9.6W/M)
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- IP20/65/ 67/IP68 rating
- 24V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | Max Power(w/m) |
PCB Width(mm) |
Color Temperature |
Luminous efficacy(LM/W) |
Voltage(V) | Cut Length(mm) |
CRI |
| WP-315-60D-8 | 60 | 4.8 | 8 | 2700K/4000K/6500K | 90-120 | 12 | 50 | 80/90/95+ |
| WP-315-60D-8 | 60 | 4.8 | 8 | 2700K/4000K/6501K | 90-120 | 24 | 100 | 80/90/95+ |
| WP-315-120D-8 | 120 | 9.6 | 8 | 2700K/4000K/6502K | 90-120 | 12 | 25 | 80/90/95+ |
| WP-315-120D-8 | 120 | 9.6 | 8 | 2700K/4000K/6503K | 90-120 | 24 | 50 |
