RGBW VS RGB Led Strip
RGBW Led Strip VS RGB Led Strip
RGB LED strip has been around for a while now and has opened the door to previously unheard-of lighting possibilities, allowing not only a wide range of customisable colours but also the ability to cut and join any length to create totally unique shapes. In response to popular demand though, there’s now a new kid on the block, RGB+W, which adds an extra white chip into the mix. Why might you need this? Read on..
The difference between RGB and RGBW LED strip?

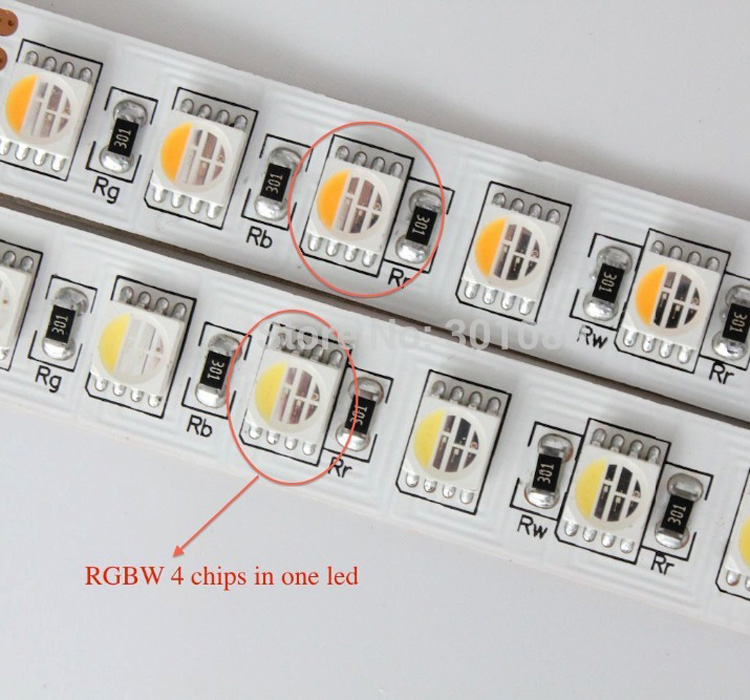

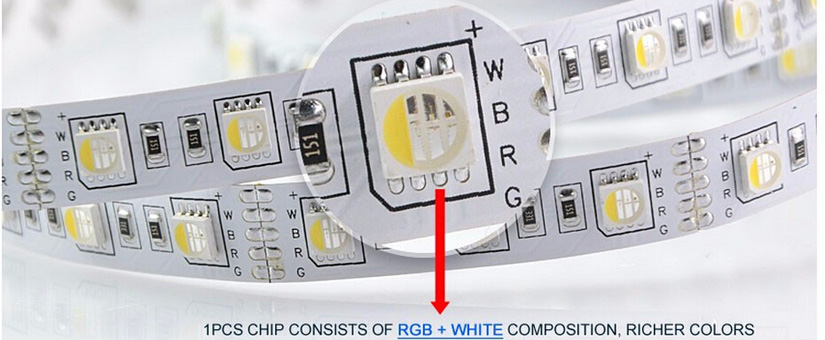

Standard RGB LED strip uses a 3-in-1 LED chip made up of red, green and blue chips. It can produce a wide range of colors by mixing the three and looks almost white with all three at full brightness. RGB+W LED strip uses either a 4-in-1 LED chip that has a white chip as well as red, green and blue or an RGB chip alongside a white chip
Why would you want an extra white chip?
Although RGB can produce a color close to white, a dedicated white LED provides a much purer white tone and allows you the option of an extra warm or cool white chip. The extra white chip also provides extra scope for color mixing with the RGB chips to create a huge range of unique shades.
Which is better?
The better choice is really down to the application. If all you’re after are basic RGB colors with no requirement for pure white then basic RGB LED strip is generally more cost effective and efficient. However for those looking for the option of white and RGB colors, as well as a mix of both, then RGB+W is a better bet.
Are the controllers different?
Yes. RGB+W lighting controllers have five outputs, one for each color and one for power. As RGB has one less chip, it only requires four. The functionality of the control also has to be different to control the white part of the LED in RGB+W.
What would you recommend?
RGB+W is undoubtedly a much more capable product that standard RGB LED strip. However, it is of course a bit more expensive. Our favorite multi-color solution is the Maxilux Color Strip RGBW, which comes packaged in an simple format. Start with a Color Strip 5m Reel Pack which contains 5m of Color Strip which you can cut to size join using the two solder-less connecting cables included (extra cables available separately). Then simply add a Color Strip Control Pack which contains a blue-tooth controller and a power supply suitable for the 5m Reel Pack.
Alternatively you can choose from one of our complete Multi-Color LED Strip Kits that contain everything you need for the average home install.
ws2801/ws2811/ws2812B/ws2813/ws2815/LPD8806/LPD6803/SK6812/APA102/Sk6822/Sk9822/UCS2903/UCS2903/TM1814/TM1914/DMX512 and so on.
RGB Led Strip Show
The RGBW has SK6812RGBW/DMXRGBW and so on.
RGBW Led Strip Show
Learn more RGB and RGBW Led Strip, contact us please.
