Round 360 White Neon D30

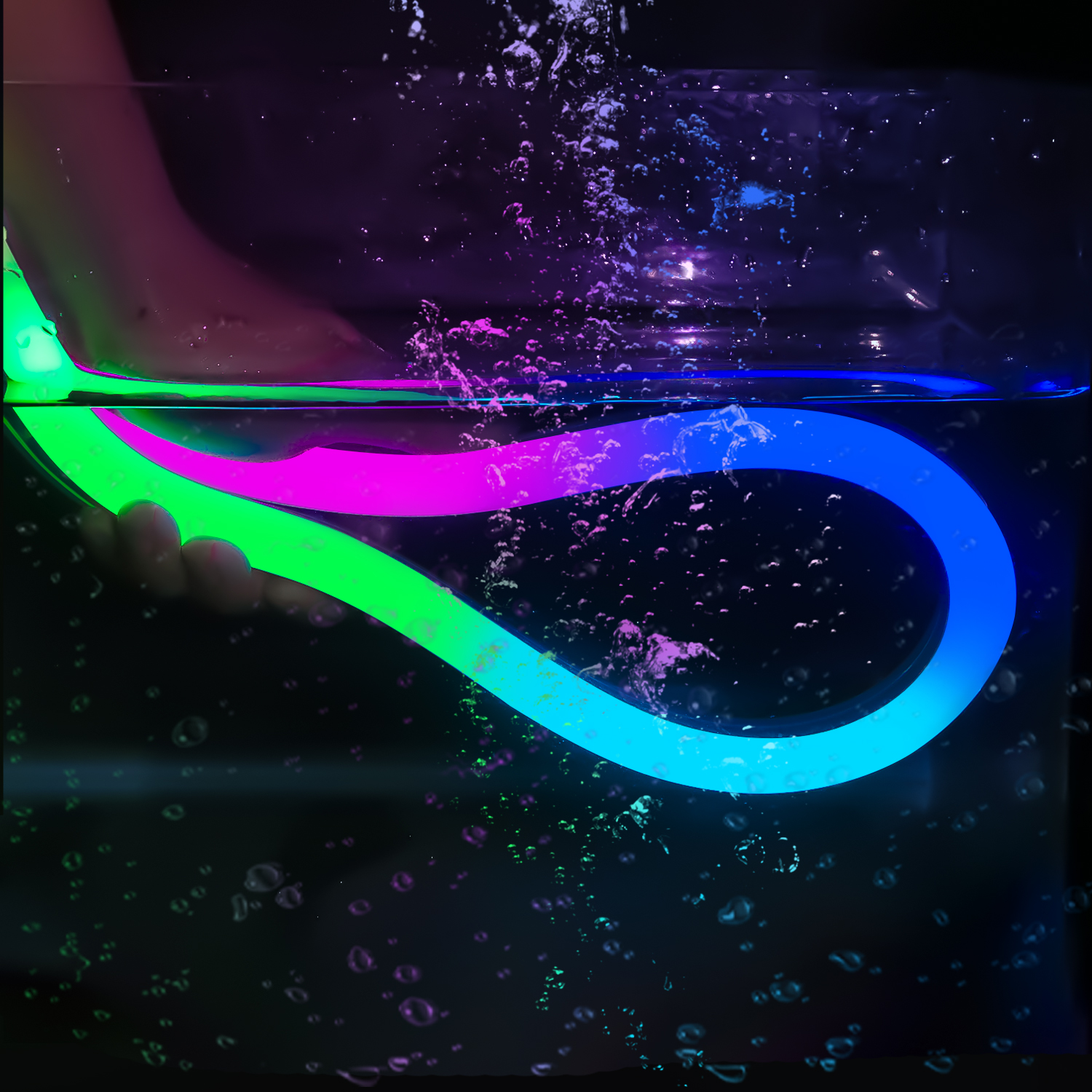

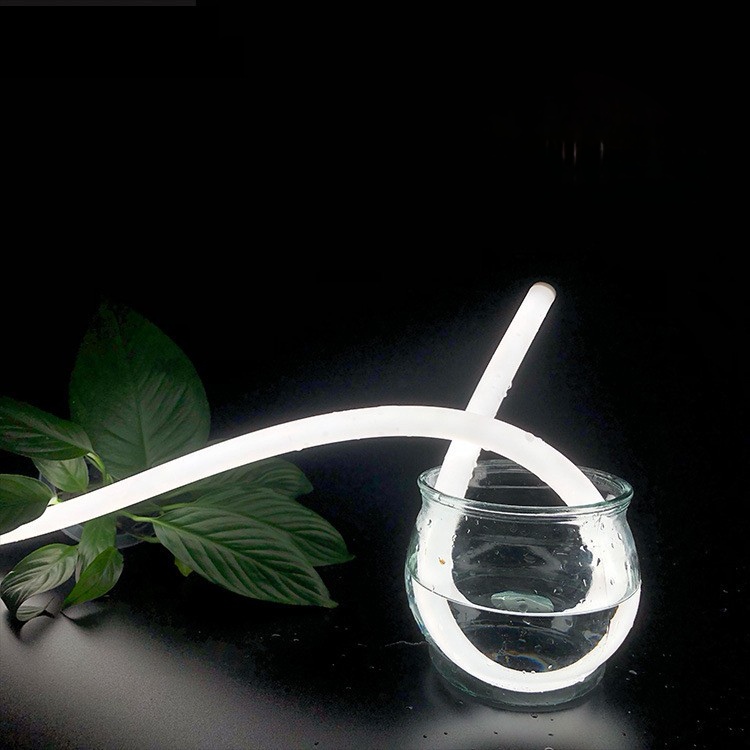

WITOP 360 Flexible Neon LED emits light in all directions – 360° Uniform Illumination.
The external coating is made of anti-UV, food grade silicone, extremely flexible and suitable for a wide range of applications.
It is available in different diameters:13mm, 20mm, 23mm, 25mm, 30mm, 40mm, 50mm. You can choose different white temperatures, colors or the RGB version.
Specification:
- Voltage: 12V/24V
- Wattage: 28.8W Per Metre
- IP Rating: IP67
- Beam Angle : 360 °
- Dimension: 30mm
- Storage Temperature: -25 ~ 60°C
- Ambient Temperature: -25 ~ 50°C
- Standard Packaging: 5M/Roll
- Accessories: Mounting clips, aluminum profile, flexible profile
Specifications
| Product Model | CCT/Color | IC Protocol | Pixels/m | Max Power(w/m) | Luminous Efficacy(LM/W) | Cut Length (mm)@12V | Cut Length (mm)@24V | CRI |
| WTP – D30 – S | Red, Green, Blue, etc | / | / | 20 | 20 – 50 | 25 | 50 | Single color |
| WTP – D30 – W | 3000K/4000K/6500K | / | / | 20 | 45 – 65 | 25 | 50 | 80+, 90+, 95+ |
| WTP – D30 – CCT | CCT combination | / | / | 20 | 40 – 65 | 25 | 50 | 80+, 90+, 95+ |
| WTP – D30 – RGB | RGB | / | / | 28.8 | 20 – 50 | 50 | 100 | RGB |
| WTP – D30 – RGBW | RGBW | / | / | 38.4 | 20 – 50 | 50 | 100 | RGBW |
| WTP – D30 – S | Red, Green, Blue, etc | WS2811 | 8 | 23.04 | 20 – 50 | 50 | 100 | Single color |
| WTP – D30 – W | 3000K/4000K/6500K | WS2811 | 8 | 23.04 | 45 – 65 | 50 | 100 | 80+, 90+, 95+ |
| WTP – D30 – CCT | CCT combination | WS2811 | 10 | 19.2 | 40 – 65 | 50 | 100 | 80+, 90+, 95+ |

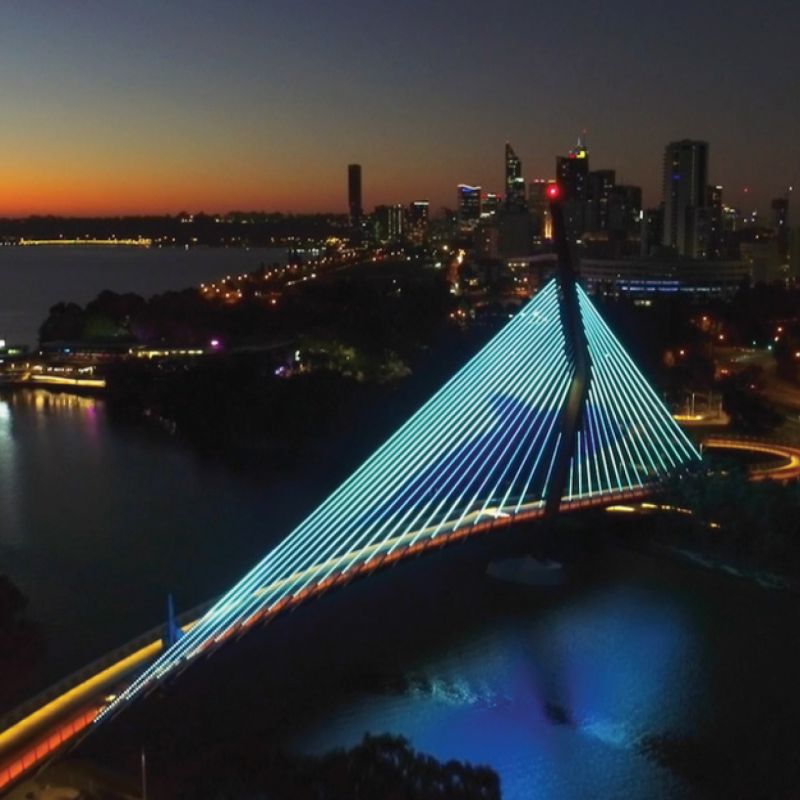

Application
