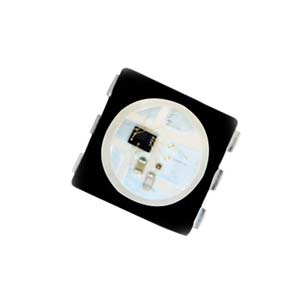

WS2815 Addressable Rgb LED Chip

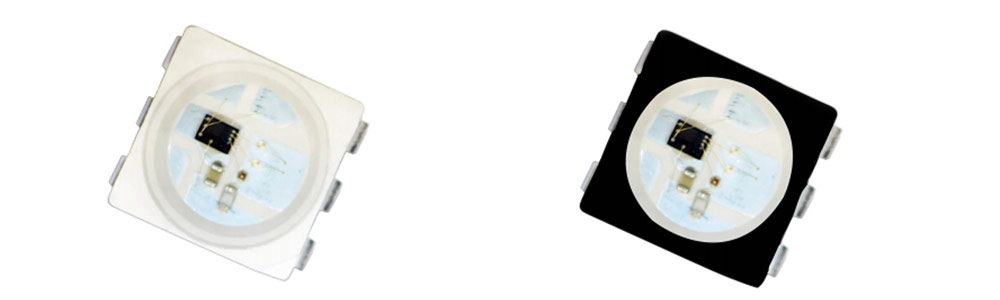

WS2815 Programmable Intelligent Digital Led Chip
- DC12V addressable Smart RGB Pixel Strip light- ws2815 IC built-in 5050 rgb Digital LED Strip
–Each smd 5050 (ws2815)has an IC(ws2815) inserted in,Each LED individually address controlled.
–You can design many different lighting effects or animations you want.
–This is the highest resolution one for the moment!
–Controller, power supply are available!
— programmable addressable 30 pixels 60pixels ws2815 led strip
Share This Product
Product Details
Features
- 1, The control circuit and the LED share the only power source.
2, 12V DC power supply, there are a decrease of the whole operating current, a decrease in voltage drop, and furthermore an increase consistency of three-color mixing even long distance signal transmission.
3, The control circuit and RGB chip are integrated in a 5050 components, to form an external control pixel.
4,Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of waveform of signal takes place.
5, Built-in power-on reset and brown-out reset circuits.
6,The gray levels of each pixel are of 256 levels, which achieves “256*256*256=16777216” full-color display, and the refresh frequency reaches to 2KHz/s.
7, Serial cascade interface, data receiving and decoding depend on just one signal line.
8, Dual-signal wires version, signal break-point continuous transmission.
9, Any two point the distance more than 3m transmission signal without any increase circuit.
10, When the refresh rate is 30fps, cascade numbers are far more than 1024 points.
11,Data transmitting at speeds of up to 800Kbps.
12, Good color consistency reliability, high cost-effective.
Specifications
Pin configuration:
Pin function:
Application Circuit:
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
