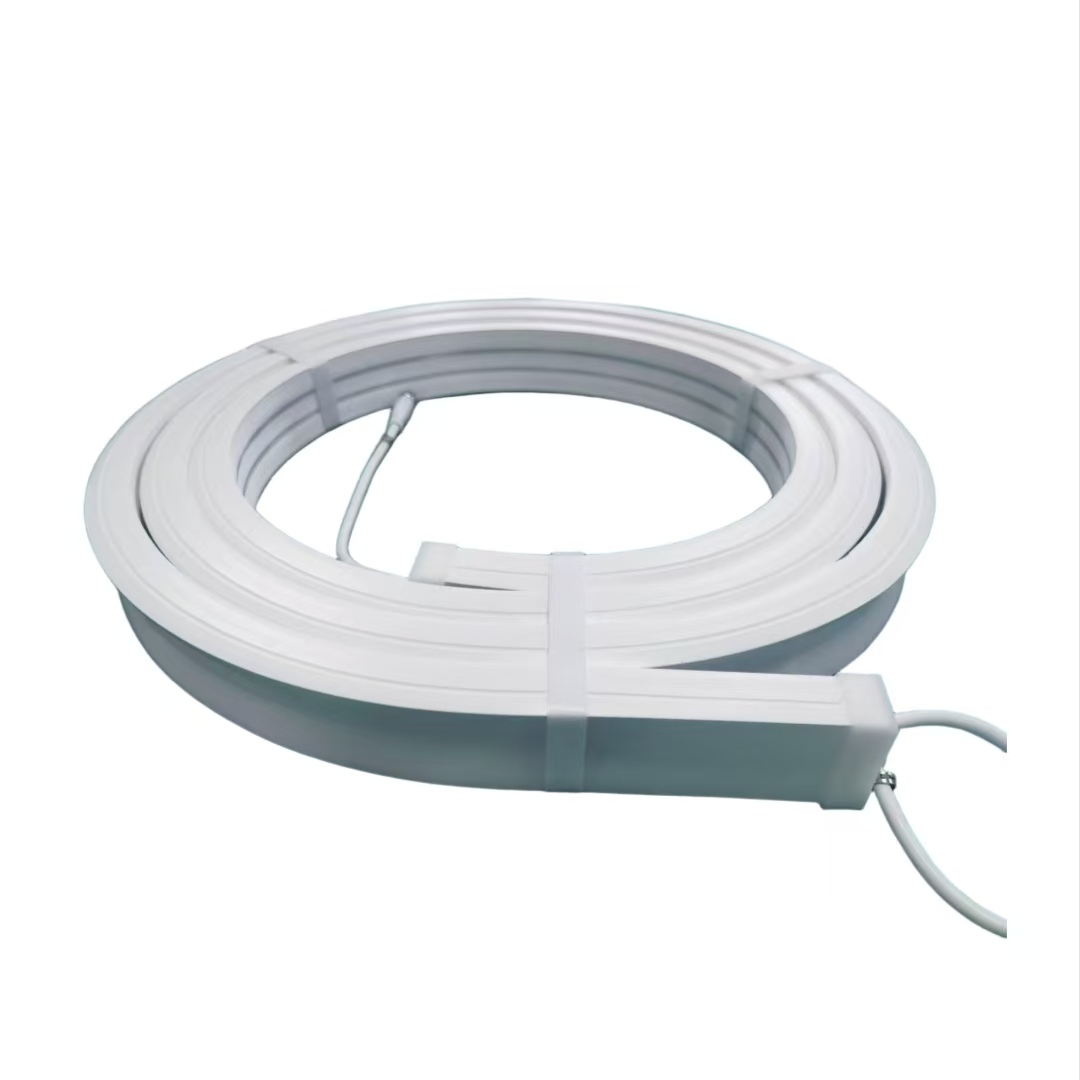

Neon Flex Top Bend V22
The Top bend Neon Flex with fan-shape emitting area.
The external coating is made of anti-UV, food grade silicone. 180 degree luminous angle and a flat mounting surface to support its installation on buildings or other objects.
Specification:
- Voltage: 12V/24V
- Wattage: 12W Per Metre
- IP Rating: IP67
- Beam Angle : 180 °
- Dimension:22mm
- Storagetemperature. : -25 ~ 60°C
- Ambient temperature. : -25 ~ 50°C
- Standard Packaging: 5M/Roll
- Accessories : Mountingclips ,aluminum profile,flexible profile
Specifications
| Product Model | CCT/Color | Max Power(w/m) | Luminous Efficacy(LM/W) | Cut Length (mm)@12V | Cut Length (mm)@24V | CRI |
| WTP – V22 – S | Red,Green,Blue,etc | 10 | 15 – 30 | 25 | 50 | Single color |
| WTP – V22 – W | 3000K/4000K/6500K | 10 | 30 – 50 | 25 | 50 | 80+,90+,95+ |
| WTP – V22 – CCT | CCT combination | 10 | 30 – 50 | 25 | 50 | 80+,90+,95+ |
