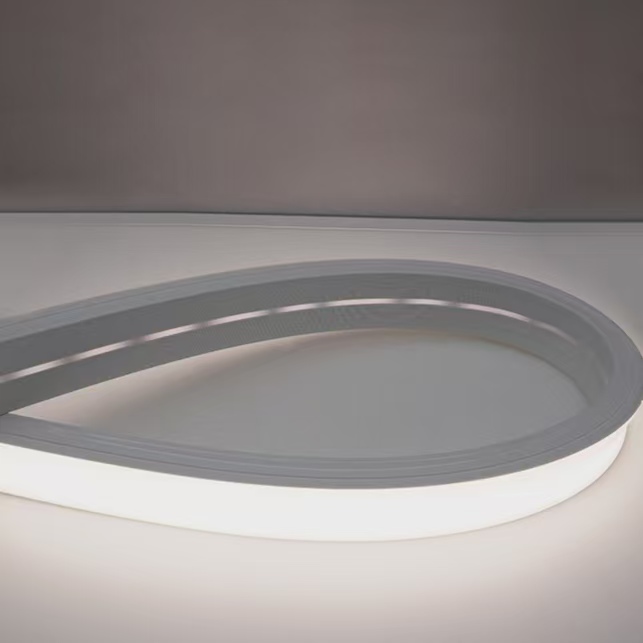

Neon Flex Top Bend 10030
WITOP Neon Flex Top bend light emitting Neon flex with vertical bending strip for indoor and outdoor application.
The size available is 100x30MM. The external coating is made of anti-UV, food grade silicone, extremely flexible and suitable for a wide range of applications.
Widely used in facade lights for skyscrapers, hotels, restaurants, swimming pool areas, resort decks near beaches.
Specification:
- Voltage: 12V/24V
- Wattage: 12W Per Metre
- IP Rating: IP67
- Beam Angle : 120 °
- Dimension:10x10mm
- Storagetemperature. : -25 ~ 60°C
- Ambient temperature. : -25 ~ 50°C
- Standard Packaging: 5M/Roll , 10M/Roll
- Accessories : Mountingclips ,aluminum profile,flexible profile
Application:
It can be used to outline the grand facades of skyscrapers, adding a dazzling touch to the city’s skyline at night.
In hotels, it creates a warm and inviting ambiance for the exteriors, welcoming guests with its gentle glow.
Restaurants can utilize it to highlight their architectural features, attracting diners with an alluring atmosphere.
For swimming pool areas, it provides safe and beautiful illumination for nighttime activities.
Resort decks near beaches also benefit from it, as it crafts a romantic and relaxing environment for visitors to enjoy the seaside scenery.
Moreover, it is suitable for decorating commercial plazas, shopping mall entrances, and park landscapes, enhancing the overall aesthetic and vibrancy of these places.
| Product Model | CCT/Color | IC Protocol | Pixels/m | Max Power(w/m) | Luminous Efficacy(LM/W) | Cut Length (mm)@12V | Cut Length (mm)@24V | CRI |
| WTP – WT10030 – S | Red, Green, Blue, etc | / | / | 10 | 20-50 | 25 | 50 | Single color |
| WTP – WT10030 – W | 3000K/4000K/6500K | / | / | 10 | 45-65 | 25 | 50 | 80+, 90+, 95+ |
| WTP – WT10030 – CCT | CCT combination | / | / | 10 | 40-65 | 25 | 50 | 80+, 90+, 95+ |
| WTP – WT10030 – RGB | RGB | / | / | 14.4 | 20-50 | 50 | 100 | RGB |
| WTP – WT10030 – RGBW | RGBW | / | / | 19.2 | 20-50 | 50 | 100 | RGBW |
| WTP – WT10030 – S | Red, Green, Blue, etc | WS2811/TM1934 | 8 | 11.52 | 20-50 | 50 | 100 | Single color |
| WTP – WT10030 – W | 3000K/4000K/6500K | WS2811/TM1934 | 8 | 11.52 | 45-65 | 50 | 100 | 80+, 90+, 95+ |
| WTP – WT10030 – CCT | CCT combination | WS2811/TM1934 | 10 | 9.6 | 40-65 | 50 | 100 | 80+, 90+, 95+ |
| WTP – WT10030 – RGB | RGB | WS2811/TM1934 | 10 | 14.4 | 20-50 | 50 | 100 | RGB |
| WTP – WT10030 – RGBW | RGBW | TM1824/SM16704UCS2904 | 10 | 19.2 | 20-50 | 50 | 100 | 80+, 90+, 95+ |
| WTP – WT10030 – S | Red, Green, Blue, etc | DMX512 | 6 | 14.4 | 20-50 | / | 166 | Single color |
| WTP – WT10030 – W | 3000K/4000K/6500K | DMX512 | 6 | 14.4 | 45-65 | / | 166 | 80+, 90+, 95+ |
| WTP – WT10030 – CCT | CCT combination | DMX512 | 6 | 14.4 | 40-65 | / | 166 | 80+, 90+, 95+ |
| WTP – WT10030 – RGB | RGB | DMX512 | 10 | 14.4 | 20-50 | 50 | 100 | RGB |
| WTP – WT10030 – RGBW | RGBW | DMX512 | 10 | 19.2 | 20-50 | 50 | 100 | 80+, 90+, 95+ |
