Neon Flex Side Bend 0817R

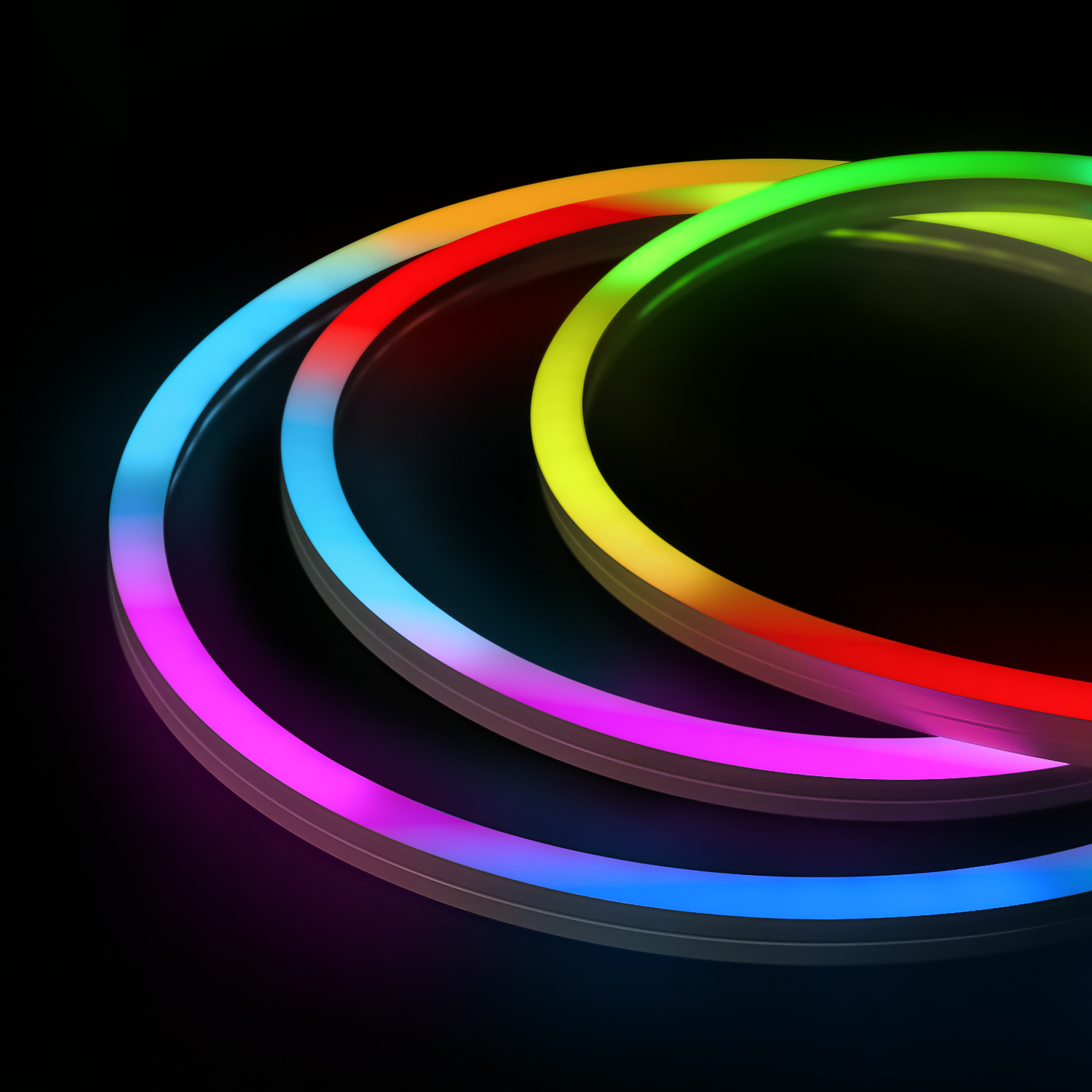

WITOP Neon Flex Side bend light emitting Neon flex with horizontal bending strip for indoor and outdoor application. The size available is 08x17MM.
The external coating is made of anti-UV, food grade silicone, extremely flexible and suitable for a wide range of applications.
Widely used in facade lights for skyscrapers, hotels, restaurants, swimming pool areas, resort decks near beaches.
Spe cification:
- Voltage: 12V/24V
- Wattage: 12W Per Metre
- IP Rating: IP67
- Beam Angle : 180 °
- Dimension:08x17mm
- Storagetemperature. : -25 ~ 60°C
- Ambient temperature. : -25 ~ 50°C
- Standard Packaging: 5M/Roll
- Accessories : Mountingclips ,aluminum profile,flexible profile
Specifications
| Product Model | CCT/Color | IC Protocol | Pixels/m | Max Power(w/m) | Luminous Efficacy(LM/W) | Cut Length (mm)@12V | Cut Length (mm)@24V | CRI |
| WTP-WS0817R -S | Red,Green,Blue,etc | / | / | 10 | 16 – 25 | 25 | 50 | Single color |
| WTP-WS0817R -W | 3000K/4000K/6500K | / | / | 10 | 25 – 35 | 25 | 50 | 80+,90+,95+ |
| WTP-WS0817R -CCT | CCT combination | / | / | 10 | 20 – 30 | 25 | 50 | 80+,90+,95+ |
| WTP-WS0817R -RGB | RGB | / | / | 14.4 | 15 – 30 | 50 | 100 | RGB |
| WTP-WS0817R -S | Red,Green,Blue,etc | WS2811 | 8 | 11.52 | 16 – 25 | 50 | 100 | Single color |
| WTP-WS0817R -W | 3000K/4000K/6500K | WS2811 | 8 | 11.52 | 25 – 35 | 50 | 100 | 80+,90+,95+ |
| WTP-WS0817R -CCT | CCT combination | WS2811 | 10 | 9.6 | 20 – 30 | 50 | 100 | 80+,90+,95+ |
| WTP-WS0817R -RGB | RGB | WS2811 | 10 | 14.4 | 15 – 30 | 50 | 100 | RGB |
