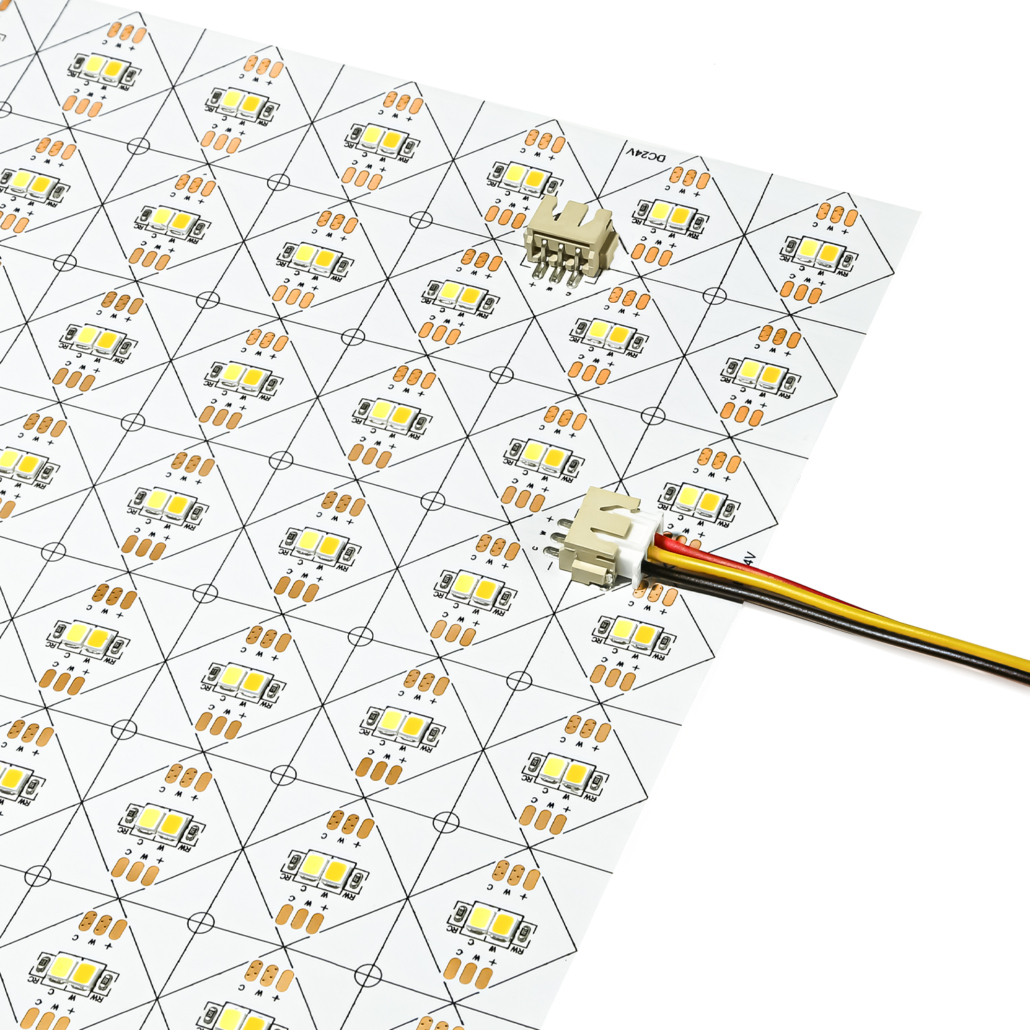

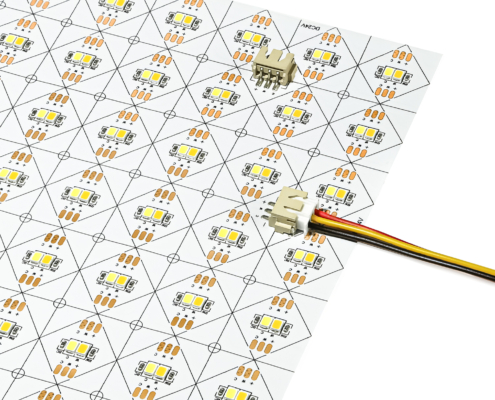

LED Flex Sheet Tunable White
DIY Flex Led Sheet is a fully modular way to backlight your display and signage.
Easily trim to shape using the on-board trim lines and create complex layouts for most applications.
With intuitive, plug and play connections; setting up is fast, simple and safe, reducing installation time and expense.
Unlike most backlighting or signage modules, FlexSheet is also daisy-chain linkable for larger scale projects with optical options available to increase the spread of light.
Specification:
- Power(W): 90
- Voltage/(V):DC24V
- Size(mm):L480xW240
- LED TyPe:SMD2835
- LED QTY(Sheet):288LEDs
- LED Segment(seg):12LEDs
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model LEDs/sheet | Max Power(W) | Dimension (mm) | CCT/Color | Luminous efficacy(LM/W) | Voltage(V) | Cut Segment(mm) | CRI |
| WP-2835CCT-440D 2835440Leds | 60 | L480*W240 | 2700K-6500K | 100-110 | 24 | 24×21.8mm(2LED) | 80/90/95+ |
