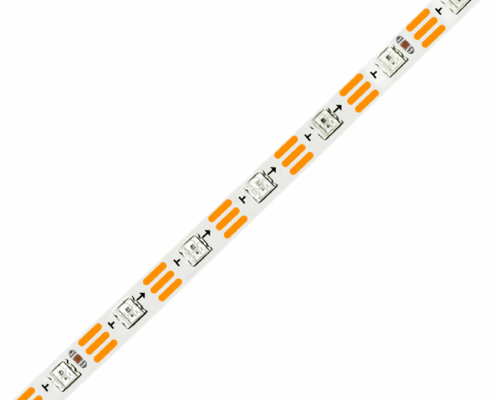

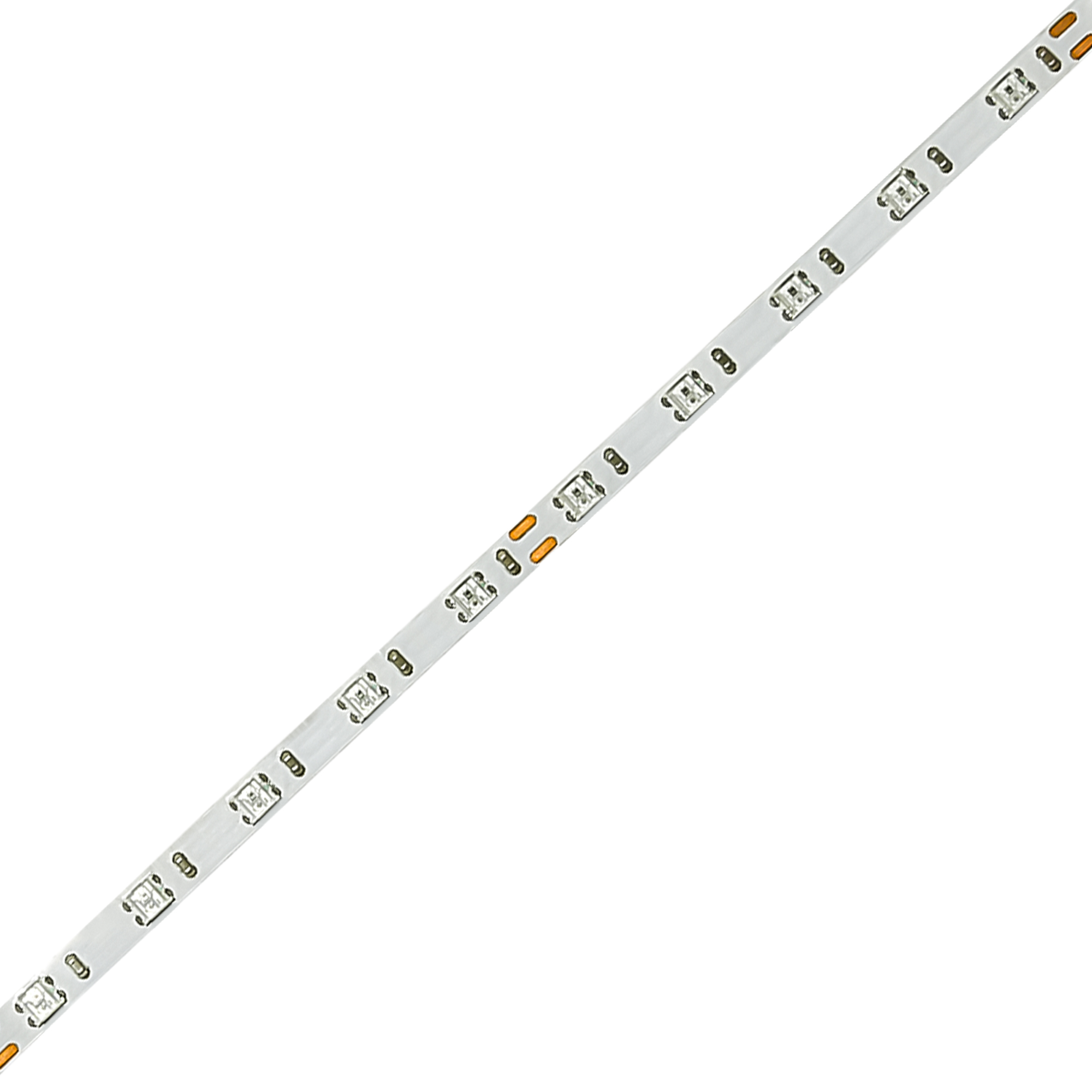

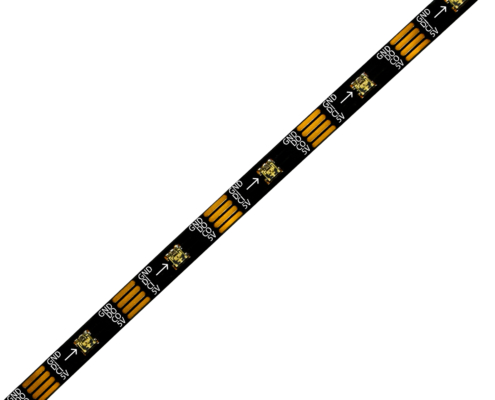

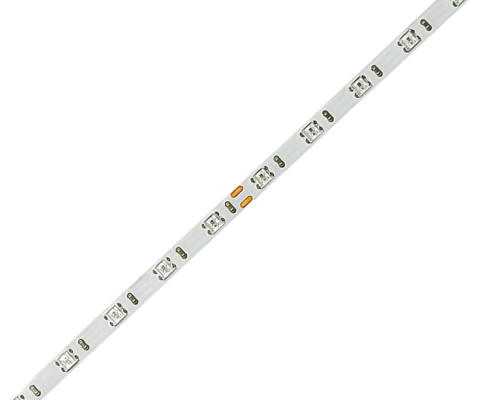

CS8805/WS2812 2020RGB 148Leds 2.65mm 1100mm/pc
Mini 2812C/CS8805 2020 full-color 2.6MM built-in hidden car atmosphere light strip, 64-color universal mini thin light strip, flexible light without darkness, high brightness, low power consumption, suitable for car interior decoration, creating personality atmosphere.
Through APP or controller, multi mode switching, gradient, jump and other effects can be achieved. It is easy to install and compatible with a variety of car models.
Specification:
- 3.3W/FT(11.2W/M)
- 1 LEDs per pixel,148 LEDs/m
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- Controlled with CS8805/WS2812C
- IP20/65/ 67 /IP68 rating
- 5V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Protocol | Pixels/m | Voltage(V) | Max Power(w/m) |
PCB Width(mm) |
Cut Length(mm) |
| WP-H2020RGB-148D-2.65 | 148 | CS8805/WS2812C | 148 | 5 | 11.2 | 2.65 | 27 |
Application
