APA102/SK9822/HD107S 5050RGB 30-144Leds

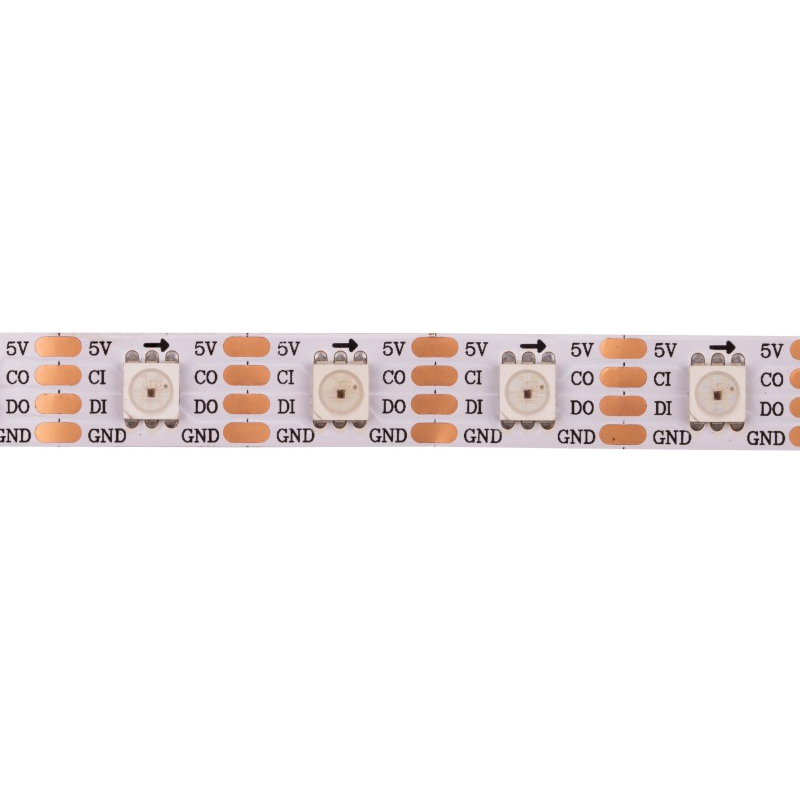

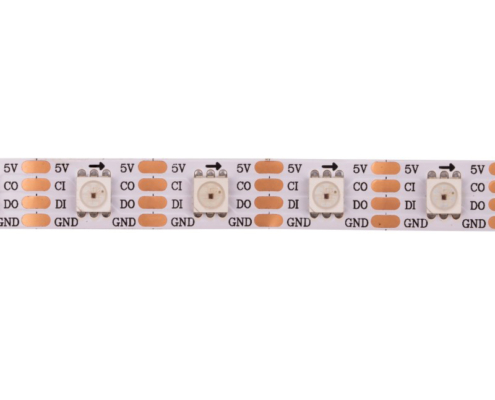

APA102/SK9822 light strip is a rigid LED light strip based on built-in IC, 5050SMD, which has the characteristics of high brightness and fast data transmission.
Its built-in clock-wire and data-wire can achieve precise color control and dynamic effects, and support multi-segment synchronous display.
Applications include architectural decoration, stage lighting,billboards, home smart lighting and creative installations, suitable for scenes that require high-quality dynamic light effects.
Specification:
- 4.3W/FT(14.4W/M)
- 1 LEDs per pixel(18 LEDs/ft,60 LEDs/m)
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- Controlled with APA102/SK9822/HD107S
- IP20/65/ 67 /IP68 rating
- 5V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Protocol | Pixels/m | Voltage(V) | Max Power(w/m) | PCB Width(mm) | Cut Length(mm) |
| WP-H5050RGB-30D-10 | 30 | APA102/SK9822/HD107S | 30 | 5 | 6 | 10 | 33.3 |
| WP-H5050RGB-60D-10 | 60 | APA102/SK9822/HD107S | 60 | 5 | 12 | 10 | 16.6 |
| WP-H5050RGB-72D-12 | 72 | APA102/SK9822/HD107S | 72 | 5 | 14.4 | 12 | 13.8 |
| WP-H5050RGB-144D-12 | 144 | APA102/SK9822/HD107S | 144 | 5 | 28.8 | 12 | 6.9 |
