APA102 2020RGB 100/200Leds 3/4mm

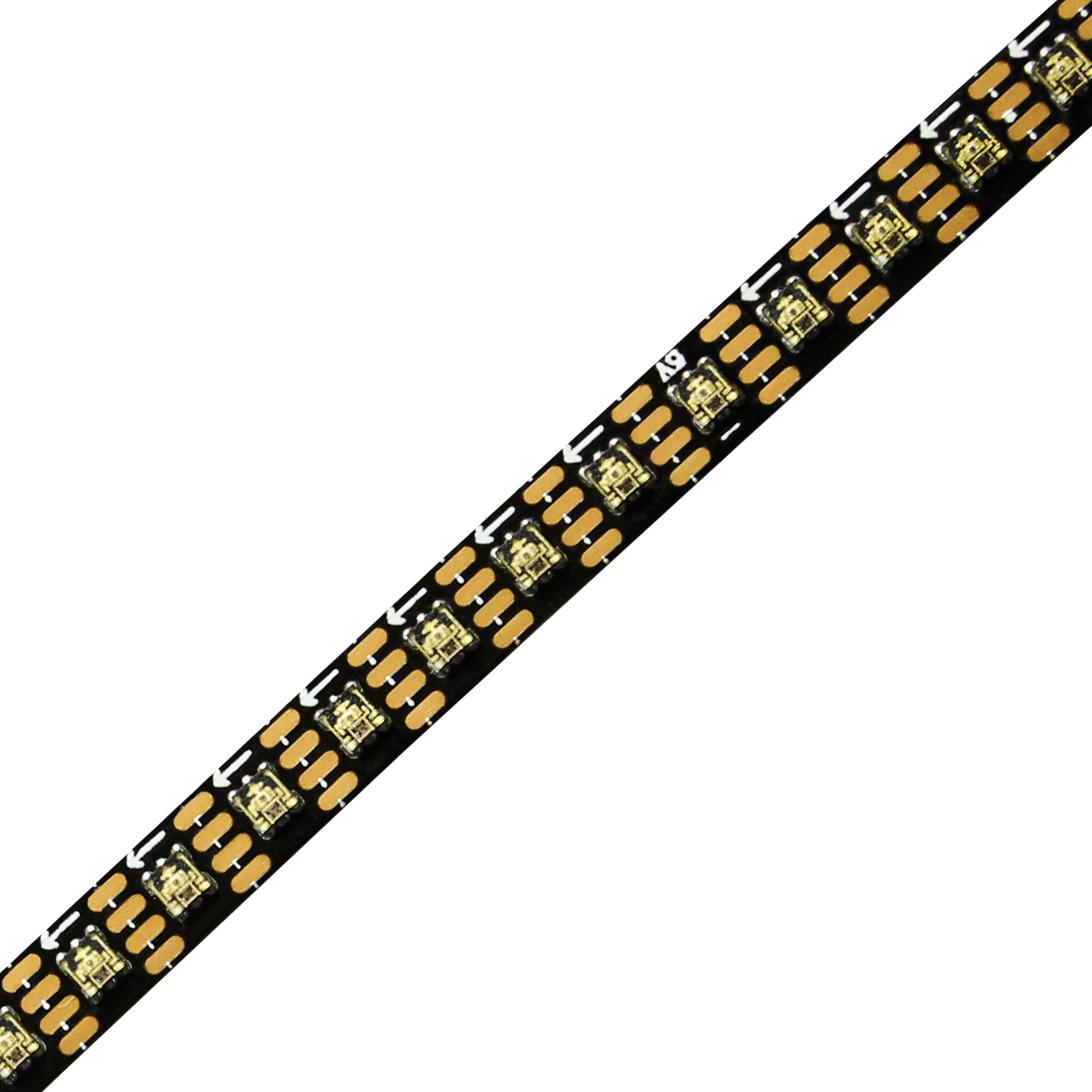

APA102/SK9822 light strip is based on built-in IC, 2020SMD, mini PCB, wider installation scene and fast data transmission.
Its built-in clock-wire and data-wire can achieve precise color control and dynamic effects, and support multi segment synchronous display.
Application areas include architectural decoration, stage lighting, billboards, home smart lighting and creative devices, etc., suitable for scenes that require high-quality dynamic light effects.
Specificstion：
- 4.6W/FT(20W/M)
- 1 LEDs per pixel(18 LEDs/ft,60 LEDs/m)
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- Controlled with APA102
- IP20/65/ 67 /IP68 rating
- 5V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Protocol | Pixels/m | Voltage(V) | Max Power(w/m) |
PCB Width(mm) |
Cut Length(mm) |
| WP-H2020RGB-100D-10 | 100 | APA102/SK9822/HD107S | 100 | 5 | 20 | 3 | 10 |
| WP-H2020RGB-200D-10 | 200 | APA102/SK9822/HD107S | 200 | 5 | 40 | 5 | 5 |
