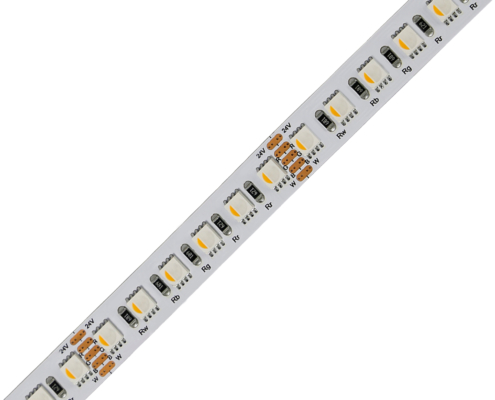

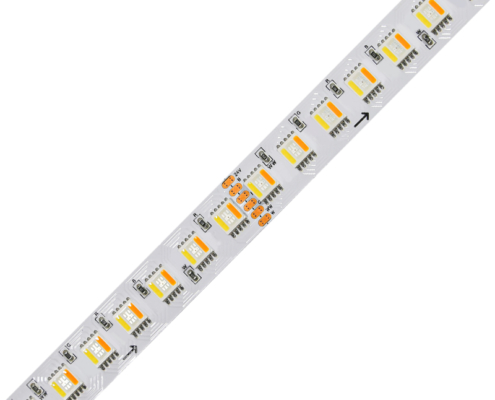

5050 SMD RGBCW 30-112Leds/m
Using 5050 LED chips, each LED integrates RGB+cold white light+warm white light, supporting full color conversion and color temperature adjustment.
The number of each lamp bead is optional (30/ 60 /84/96/,112 leds per meter etc.), the working Voltage(V) is DC 12V or 24V, with low power consumption and high light efficiency.
Compatible with APP or remote control, suitable for home background lighting, commercial displays, stage lighting, KTV decoration and other scenes to meet visual lighting needs.
- 9.4W/FT(31.36W/M)
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- IP20/65/ 67/IP68 rating
- 24V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | Max Power(w/m) |
PCB Width(mm) |
Color Temperature |
Luminous efficacy(LM/W) |
Voltage(V) | Cut Length(mm) |
CRI |
| WP-5050RGBCW-30D-12 | 30 | 8.4 | 12 | RGBCW | 60 | 12 | 100 | 90 |
| WP-5050RGBCW-60D-10 | 60 | 16.8 | 10 | RGBCW | 60 | 12 | 50 | 90 |
| WP-5050RGBCW-60D-12 | 60 | 16.8 | 12 | RGBCW | 60 | 12 | 50 | 90 |
| WP-5050RGBCW-60D-10 | 60 | 16.8 | 10 | RGBCW | 60 | 24 | 100 | 90 |
| WP-5050RGBCW-60D-12 | 60 | 16.8 | 12 | RGBCW | 60 | 24 | 100 | 90 |
| WP-5050RGBCW-84D-12 | 84 | 23.5 | 12 | RGBCW | 60 | 24 | 71.4 | 90 |
| WP-5050RGBCW-112D-12 | 112 | 31.36 | 12 | RGBCW | 60 | 24 | 62.5 | 90 |
