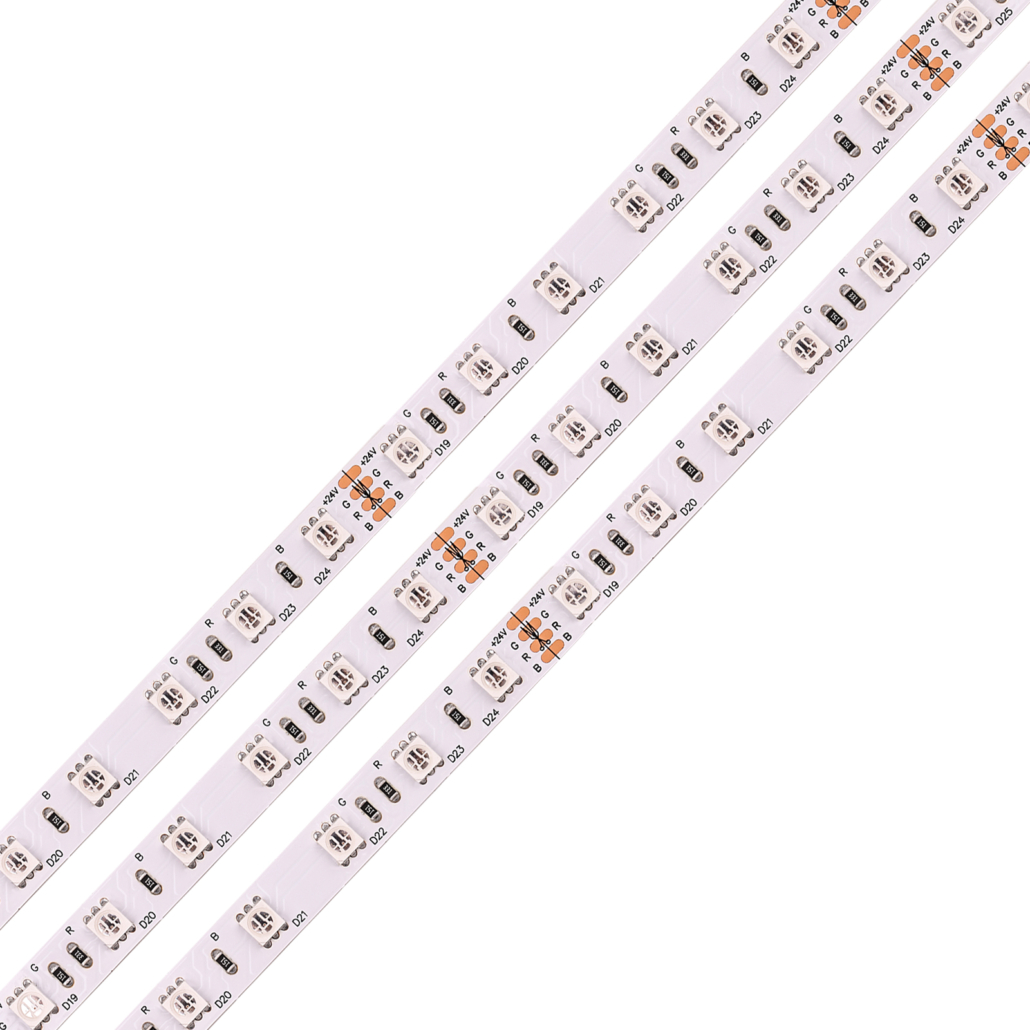

5050 SMD RGB 30-96Leds/m
The 5050 colorful RGB light strip uses high-brightness 5050 RGB LED chips, with a variety of LED quantities to choose from.
It has rich colors and can achieve a variety of color changes.
Supports DC 12V or 24V power supply, low power consumption, and compatible with a variety of RGB controllers. Using flexible FPC circuit board, easy to bend and install.
Suitable for decorative lighting, atmosphere creation, commercial displays,
entertainment venues, etc.
Specification:
- 4.3W/FT(14.4W/M)
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- IP20/65/ 67/IP68 rating
- 24V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | Max Power(w/m) |
PCB Width(mm) |
Color Temperature |
Luminous efficacy(LM/W) |
Voltage(V) | Cut Length(mm) |
CRI |
| WP-5050RGB-30D-10 | 30 | 7.2 | 10 | RGB | 35-50 | 12 | 100 | / |
| WP-5050RGB-30D-10 | 30 | 7.2 | 10 | RGB | 35-50 | 24 | 50 | / |
| WP-5050RGB-60D-8 | 60 | 14.4 | 8 | RGB | 35-50 | 12 | 50 | / |
| WP-5050RGB-60D-10 | 60 | 14.4 | 10 | RGB | 35-50 | 12 | 50 | / |
| WP-5050RGB-60D-10 | 60 | 14.4 | 10 | RGB | 35-50 | 24 | 100 | / |
| WP-5050RGB-60D-12 | 60 | 14.4 | 12 | RGB | 35-50 | 24 | 100 | / |
| WP-5050RGB-96D-10 | 96 | 16 | 10 | RGB | 35-50 | 12 | 31.25 | / |
