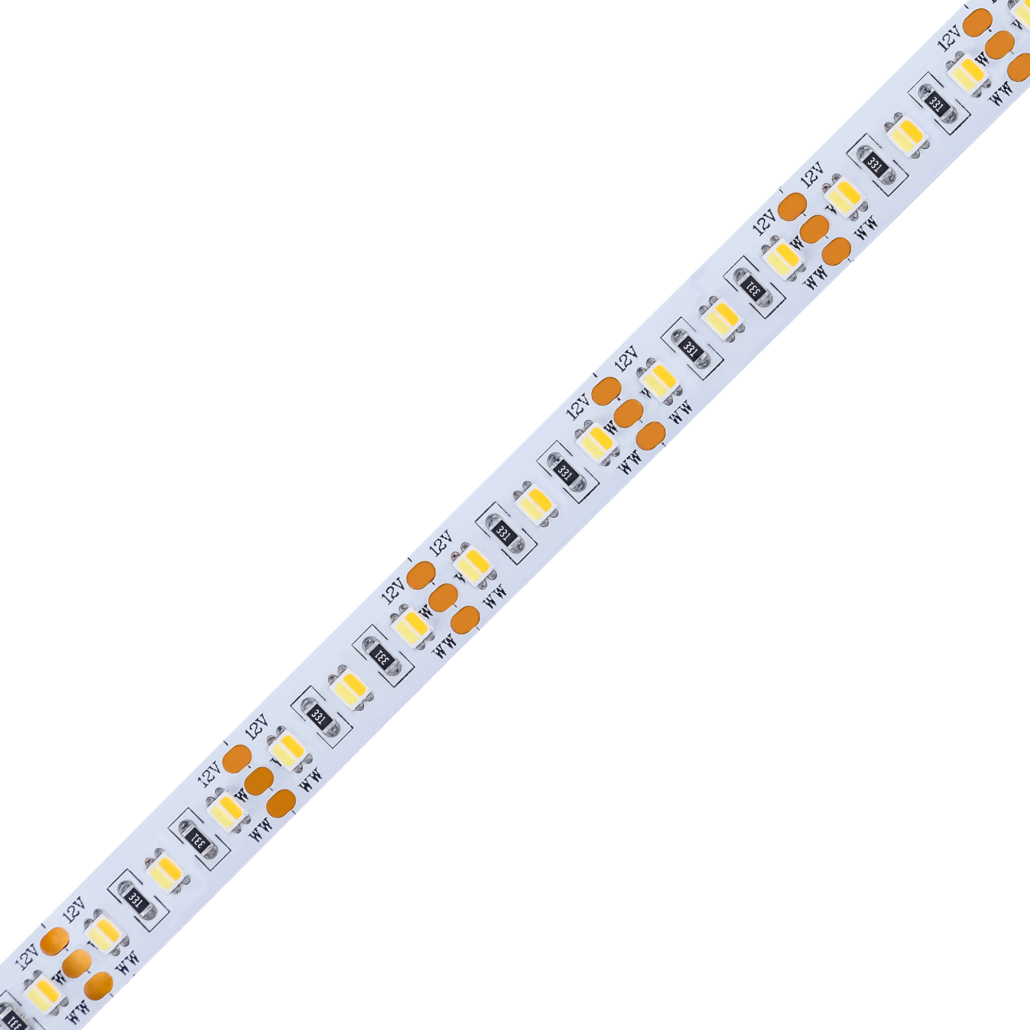

2110 SMD 224/308Leds 12/8mm
The 2110 constant current color temperature light strip uses high CRI LED chips to support precise adjustment of color temperature (2700K-6500K), achieving a smooth transition from warm light to cold light.
Built-in voltage regulator driver, single ended power supply with consistent brightness from beginning to end, no flicker to protect eyesight.
High-density lamp bead layout, uniform light effect and no dark areas, suitable for home, commercial and creative lighting scenes.
Support customized length and control schemes, and compatible with a variety of intelligent dimming systems.
Specification:
- 3.6W/FT(12W/M)
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- IP20/65/ 67/IP68 rating
- 24V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | Max Power(w/m) |
PCB Width(mm) |
Color Luminous Temperature efficacy(LM/W) |
Voltage(V) | Cut Length(mm) |
CRI | |
| WP-2110-224D-12 | 224 | 10.56 | 12 | 2700K-6500K | 80-100 | 24 (Constant voltage and current) |
62.25 | 90/95+ |
| WP-2110-308D-8 | 308 | 10.56 | 8 | 2700K-6500K | 80-100 | 24 | 45.45 | 90/95+ |
