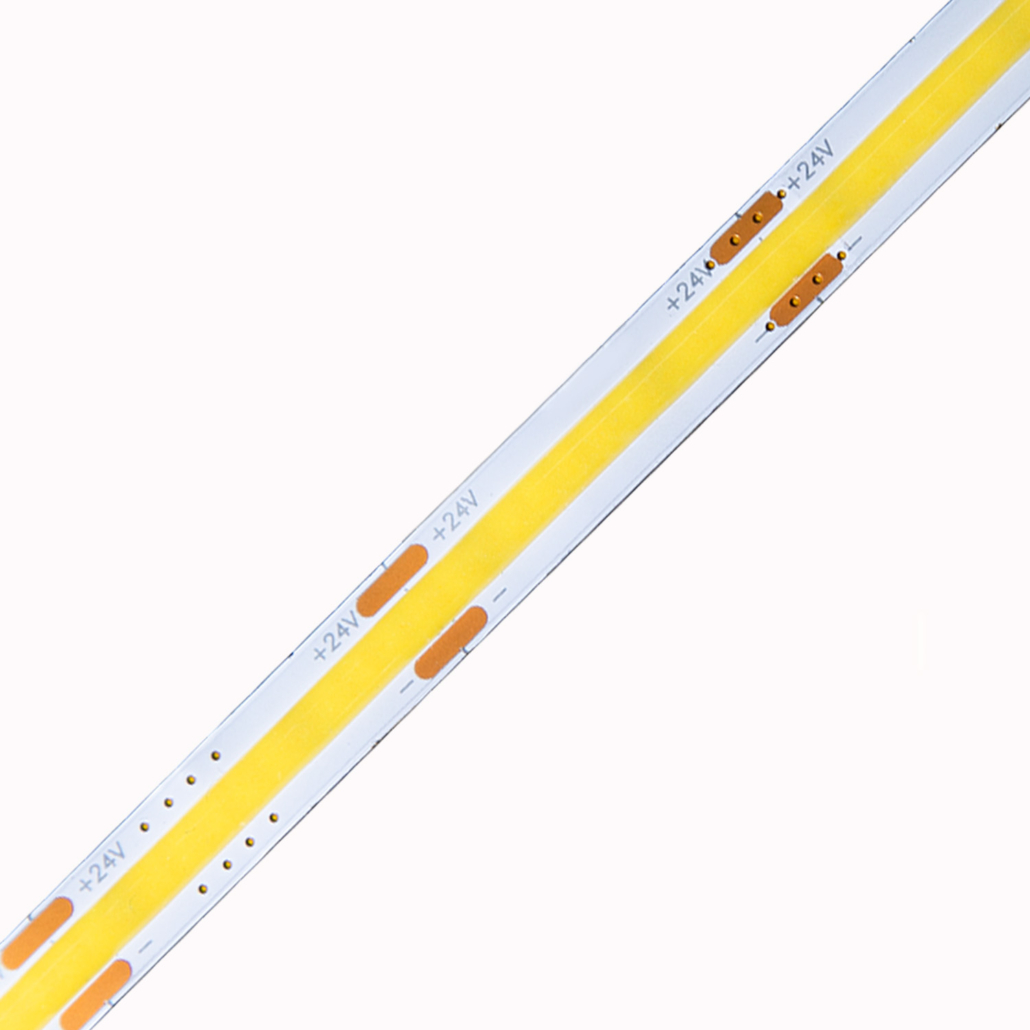

12V 24V High Quality COB White Color High Brightness Cuttable LED Strip with 528 LEDs per Meter 10mm Width
COB (Chip on Board)single color strip light uses high density chips with glue to achieve uniform light emission, and no light spots. It has features of energy saving,heat dissipating and can be cuttable. More than 90 Ra shows realistic color of items, SDCM<3 ensures the light consistency.
- 4.62W/FT(15.4W/M)528 LED Chip/M
- 32.8ft(10m) max.run length
- 180 degree beam angle
- Cut Length: 45.45MM
- IP20/65/67/68rating
- 4V input
- Ambient Temperature-25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| LEDs/m | Max Power(w/m) | PCB Width(mm) | Color Temperature | Luminous Efficacy(LM/W) | Voltage（V） | Cut Length(mm) | CRI |
| 528 | 15.4 | 10 | 2600-2800K | 81-99 | 12/24 | 45.45 | 90+ |
| 528 | 15.4 | 10 | 2900-3100K | 81-99 | 12/24 | 45.45 | 90+ |
| 528 | 15.4 | 10 | 3900-4100K | 90-110 | 12/24 | 45.45 | 90+ |
| 528 | 15.4 | 10 | 6000-6500K | 99-121 | 12/24 | 45.45 | 90+ |
