WS2812B

WS2812B RGB Addressable led light strip

WS2812B RGB Addressable led light strip

WS2812 LEDs are particularly popular in Led panel  projects. It make a lot of sense. Your first project is “Blink LED”, so it only makes sense to blink LEDs in a more interesting way!

This is why I am really excited about this particular product.WS2812 LEDs, also known as Rainbow Bits or NeoPixels, are available in many places. You will find many variations across the board, but they all operate basically the exact same way.  You can get these either as stand-alone chips in different lengths, densities, or combinations. For example, you can get them 72 pixels to a strip, 60 pixels, or 30 pixels.

How do I know I have a WS281x LED?

Because there are so many versions out there in the wild, you will need to be able to identify the LEDs, even if they are marked differently.

Most of the time you will find these LEDs in strip form (attached to a flexible PCB). You can get these LED strips in black PCBs or white PCBs, with or without a waterproof coating.

Here show you our ws2812b led strip. We have 30led/60led/72led/84led/96led/144led per meter.

ws2812b





There are three ways for the LEDs to be waterproofed — either with a plastic sleeve or an epoxy coating you scrape off. Ours have a plastic sheath over the strip.



These LEDs look similar to the RGB LEDs (used in the Basic I/O Shield product highlight), which you can also use a controller to change to whatever color/ brightness/ intensity you wish. However, the entire strip changes together, as opposed to being able to have multiple colors on one strip (you can still achieve really neat effects this way, and oftentimes the RGB LEDs are a good deal cheaper than the WS281x ones). If you haven’t used the RGB strips before, I would recommend you to learn how to use those before moving to these LEDs.

How can I tell the difference?

You can tell the difference between these two types of LEDs in a few ways (just check that you bought the right ones!).

  1. WS281x LEDs will have break off points between every LED versus the RBG LED strip has break off points at every three LEDs.
  2. There are also three lines (power, data, ground) for the WS2812, whereas the RGB LED strip has four  (power, R, G, B, and ground)
  3. If you get close to the actual LED pixel, you will see that there is a small square dot in the center of the WS281x LED and not in the RGB one. This little square dot is the semiconductor chip that is wire-bonded to the individual LED segments. It’s this chip that makes the LED addressable.
  4. If you see a strip of LEDs where break off points are at every LED (instead of every three) and there are three input/ouput lines and looks to have a small chip in the center of the pixel… then you probably have a WS281x LED.



What makes these LEDs work?

Ws2812b Led

If you geek out on knowing how something works, then this section is for you. If you want just want to get to using the LEDs, skip ahead to the next section.



The best place to learn about these LEDs is to read the data sheet.

From the DataSheet- WS2812 internal circuitry

Each pixel is a small system .

There are lots of functions crammed onto one chip. Inside of the SMD (surface mount) 5050 package are several things:

Features

1、an internal oscillator for timing and changing states

a signal reshaping and amplification circuit to make sure the signal is passed to the next LED in the chain

2、a data latch — this holds the state of the particular LED

3、channel programmable constant output drives (constant current) to control each of the LEDs (red, blue, and green)

4、digital ports/serial in and serial out to receive and transmit information.



Learn more please contact us.



cs2803 ws2812b led strip

CS2803 VS SK6812 VS WS2812B Addressable Led Strip

There are several kinds of inbuilt IC chip set, such as ws2812s, ws2812b, sk6812. now there comes a new one–CS2803.

The biggest difference is that CS2803 with a new technology–breakpoint transmission, this feature ensures that the rest of the LEDs in a strip still work even if one or more pixels develop a bad IC. like the pictures:

cs2803 led strip

CS2803 addressable led strip picture as below:

cs2803 ws2812b led strip

Ws2812b sk6812 addressable led strip as below:

sk6812 vs ws2812b vs sk6812 rgbw





Witop Sk6812 vs Ws2812b vs Sk6812 Rgbw Addressable Led Strip

Let we see the clear ws2812b and sk6812 sk6812rgbw addresable led strip first!



sk6812 vs ws2812b vs sk6812 rgbw

SK6812 RGB VS SK6812 RGBW:

sk6812 5050 rgbw(RGBWW= RGB + Warm White (2800-3200k),RGBNW= RGB + Natural White (4000-4500k),RGBCW = RGB + Cold White (6000-6500K) ,we can see,it have one more white color than sk6812 5050 rgb led strip,When we do not need rgbw color,it can show white color,However,for,sk6812 5050 rgb,when it show the white color it is red green blue color mix together,so,it is not really white color!

SK6812 VS WS2812B addressable led strip,

The SK6812 is very similar to the WS2812B, and can be used as a drop-in replacement in most applications because it features the same interface and color order (so LED strips based on the SK6812 and WS2812B can be chained together). The main difference between the two drivers is that the SK6812 has voltage-independent color and brightness over a wide voltage range, which means that the colors of the LEDs should not be affected by a drop in the supply voltage as much as they are on the WS2812B.

Looks like sk6812 is a direct clone of ws2812b with some improvements made. LED is driven at higher PWM frequency and some variants have separate white die, instead of running RGB channels simultaneously. All existing ws2812 libraries are compatible (commonly refered as ‘NeoPixel’). Sk6812 and ws2812 are actually controler chips, and LEDs you are interested in have chip integrated.

Normally,we can not distinguish it well,but through the IC shape,we can see it is ws2812b or sk6812.



WS2812B RGB Led Ring

WS2812B /Sk6812 RGB Led Ring

WS2812B /Sk6812 RGB Led Ring



WS2812B Module use the FR4 (Glass fiber board) to be assembly circuit boards, use SMD LED lights and components to be assembled,

Products using DC5V voltage to power supply high safety factor using the import led chip to be the light source high  brightness light fade is small maintenance free long lifespan energy saving and environmental protection based on the

above characteristics More and more peopel choose led strip as lighting decoration product so that the thickness of the product only just like,LED Chip is built-in IC, then the components is less , pixels can be high,can make

attractive appearance, and so on.

IC is designed with one data line, two power lines, 256 gray scale, high brightness, fast data transfer, fast screen refresh, etc.

As in all WS2812B RGB LED products, all the LEDs on board are individually addressable. Each individual LED carries a 20mA constant-current driver that guarantees consistency of the displayed color under voltage variations. Although we recommend using a 5VDC supply, we’ve successfully tested their operation in the 4~6.5VDC range!

Detail Size



Ws2812B

led ring

Product Show

24Led RGB Led Ring

WS2812B Led Ring

Application

  • Led outdoor or indoor decoration
  • party decoration
  • KTV or night club decoration and so on
  • Bus and  car light
  • Toy for Kids to play
  • Small toy and air plane



we have 1led/8led/16led/24led and 32led. can work with the SD card/remote/bluetooth /online controller.





WS2812B Addressable RGB Led Strip Light

WS2812B Addressable RGB Led Strip Light

WS2812B LED strip, which is an addressable RGB LED strip. The information in this post also works with other similar LED strips, such as strips of the WS28XX family, Neopixel strip and others.

In the following figure you can see my WS2812B LED strip. It is 5 meters long and the LEDs are enclosed in a weatherproof silicone. So, they can be left outside at the rain and dust without any problem.

Ws2812B addressable led strip

WS2812B 60led

In my opinion, this is the coolest type of LED strips. You can control the brightness and the color of each LED individually, which allows you to produce amazing and complex effects in a simple way.

This LED strip is made by WS2812B LEDs wired in series. These LEDs have a IC built right into the LED. This allows a communication via a one-wire interface. This means that you can control lots of LEDs using just one digital pin of your Arduino.

In the following figure you can see the chip inside the LED. The LED is an RGB LED and works like so

This kind of strips are very flexible and can be cut to any length you want. As you can see, the strip is divided into segments, and each segment contains one RGB LED

You can adjust its size by cutting the strip with a scissors in the right place (the proper places to cut the strip are marked).

These strips come with  connectors  at each end . I’ve decided to cut the connectors, and solder header pins. It’s more handy if you want to connect the strip to an Arduino or to a breadboard

The LED strip should be powered using a 5V power source. At 5V, each LED draws about 50mA, when set to its full brightness.  This means that for every 30 LEDs, the strip may draw as much as 1.5 A. Make sure you select a power source that matches the strip’s needs.

Connection

If you end up using an external supply, don’t forget to connect the power supply ground to the Arduino ground



In this example, the WS2812B LED strip will be powered using the 5V Arduino pin. In my case, I’m controlling 14 LEDs. Bear in mind that if you want to control many LEDs, you’ll need to use an external power supply.

At present. we have the 30led/60led/144led per meter. also can  do 72/84led, and you can cut your want.of course. if 12V DC. you will Cut by 50MM.

Cutting the strip



Ws2812B Led panel light

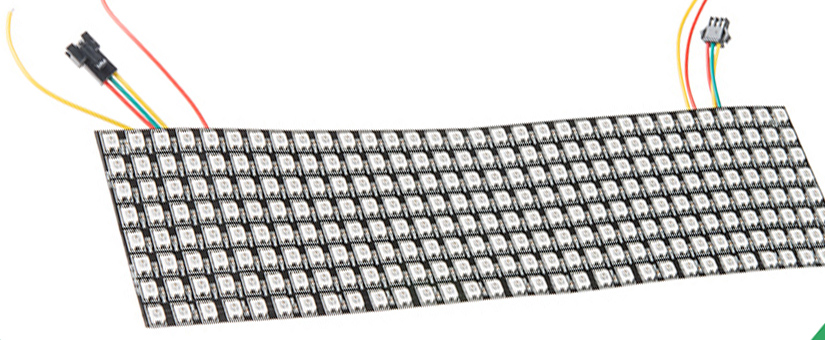

Ws2812B/sk6812 8X8/16×16 Led panel light

Ws2812B/sk6812  8X8/16×16 Led panel light

ws2812B 8X8 led panel light

LED Quantity: 64

IC Type WS2812 (IC Built in LED)

Wattage: 19.2W

Pixel/m: 8*8

PCB Width: 9*9cm

Length of cable: 100mm

Working Voltage: DC 5V

PCB Color: black

Features.

  1. Control IC SK6812/ws2812b  inserted in 5050 RGB LED diode , supporting numerous color-change effects .
  2. White PCB and black PCB optional .
  3. It comes in one piece separated by a 3Pin JST SM connector and extra Power /Ground Wires .
  4. Flexible PCB material . This matrix has a thick flexible PCB backing that can

be gently bent and curved around surfaces

  1. This matrix with 256 leds, you could use over 15A of current if you turn on all the LEDs on to white (which we really do not recommend because we don’t think the flex PCB can handle that much current in a long time ). Try to keep the current draw at under 5A.

These are awesome 8×8 individually addressable RGB matrix panels. Composed of 8 columns x 8 rows of WS2812B (WS2812/WS211 protocol) individually addressable LEDs on a flexible PCB, these panels have 64 LEDs and they can be daisy-chained to make bigger signs or panels! You can create animations, games, or even incorporate them into a fun e-textiles project. On top of all that, thanks to its flexible backing, this LED Matrix can be bent and bowed to fit onto almost any curvy surface.

These panels require a 5V low voltage input for power which needs to be able to source a good amount of current – up to 3.8A in most uses (3.8A if all LEDs are set to bright white, which is NOT recommended). Attached to each flexible LED matrix are two 3-pin JST SM connectors and two sets of bare power cables (input / output), which provide you connections for DC5V+, COM-, DAT, and GND.

Pls note that WS2812B are a bit different than the standard WS2801 ICs, these do not use separate clock and data lines.

Some Picture Show

ws2812b led panel light (1)

Learn more please contact Us



ws2812b ws2813

What’s The Difference? WS2812 VS WS2813

WS2812B  VS  WS2813

ws2813 led is ws2812 update version,dual-signal wires , signal break-point continuous transmission ,the ws2812b is regular addressable with one data wire, V+&V-.

WS2813 VS WS2812B LED Strip
The image is mainly about the difference between the work principle of WS2812 and WS2813 LED strip. The most obvious difference is: when the led one of the WS2812 was broken, it will affect the other led working, but the WS2813 will not appear above situation.

If you don’t know the WS2812 or WS2813, please allow me to introduce them to you.

Generally speaking, WS2812 has two versions: WS2812 and WS2812B. WS2812B is an upgraded version of WS2812. They are an integrating control circuit and the intelligent external control LED source of the light-emitting circuit, which looks similar to the 5050LED. It internal included intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent. They can be applied to the full-color module, full color soft lights a lamp strip, led decorative lighting and the indoor/outdoor led video irregular screen. The features and benefits between WS2812 and WS2812B is the WS2812B has intelligent reverse connect protection and the power supply reverse connection does not damage the IC.

Nowadays it comes to the latest version of the WS2812, which is WS2813
Compare with the former, WS2813 both have some places similar to WS2812, and have its own unique features:

Common:

1) The control circuit and the LED share the only power source.

2) Built-in electric reset circuit and brown-out reset circuit.

3) The color of the light was highly consistent, cost-efficient.

4) WS2813 LED can use same controller as WS2812B LED.

5) When the refresh rate is 30fps, cascade numbers are not less than1024 points.

6) Send data at speeds of 800Kbps and so on.

Difference:

1) WS2812 only one data signal when one led broken may affect the other led working, which only die is package in 5050 RGB LED Chip. But WS2813 led have 2 data signal, any pixel’s failure won’t affect signal transfer and its total emitting effect, unless two consecutive adjacent LED are Broken. WS2813 adopted the upgraded chips led so WS2813 led make digital led project is more reliable than before.

WS2812B

ws2812b

Ws2813

ws2813



Learn more details please contact us.



ws2813 cs2803 ws2812B led strip

What’s The Difference? WS2812 vs SK6812 VS WS2813 vs CS2803 LED Strip

The image is mainly about the difference between the work principle of WS2812 and WS2813 LED strip. The most obvious difference is: when the led one of the WS2812 was broken, it will affect the other led working, but the WS2813 will not appear above situation.

ws2813 ws2812b addressable led strip

Generally speaking, WS2812 has two versions: WS2812 and WS2812B. WS2812B is an upgraded version of WS2812. They are an integrating control circuit and the intelligent external control LED source of the light-emitting circuit, which looks similar to the 5050LED. It internal included intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent. They can be applied to the full-color module, full color soft lights a lamp strip, led decorative lighting and the indoor/outdoor led video irregular screen. The features and benefits between WS2812 and WS2812B is the WS2812B has intelligent reverse connect protection and the power supply reverse connection does not damage the IC.

Now WS2813/cs2803 LED come out ,you can think it is ws2812b updated version , WS2813 LED can use same controller as WS2812B LED , WS2813 led have 2 data signal ,so when you use those led chip to make led strip , one led broken will not affect another led unless two consecutive led is broken , so WS2813 led make digital led project is more reliable than before .The capatior and die is packaged in 5050 RGB LED chip , then it will not need another capatior to make led strip again.

ws2813 addressable rgb led strip

But for the cs2803 addressable led strip,the capatior is outside and the die is packaged in 5050 RGB LED chip,and same function with ws2813.and the price will be more reasonable than ws2813 led strip.

cs2803 addressable breakpoint continue led strip



WS2812B only one data signal when one led broken may affect another led working . Only die is pacakge in 5050 RGB LED Chip

ws2812b addressable rgb led strip

In summary Compare WS2812B LED chip,



Common:

1) The control circuit and the LED share the only power source.

2) Built-in electric reset circuit and brown-out reset circuit.

3) The color of the light was highly consistent, cost-efficient.

4) WS2813 LED can use same controller as WS2812B LED.

5) When the refresh rate is 30fps, cascade numbers are not less than1024 points.

6) Send data at speeds of 800Kbps and so on.

Difference:

1) WS2812 only one data signal when one led broken may affect the other led working, which only die is package in 5050 RGB LED Chip. But WS2813 led have 2 data signal, any pixel’s failure won’t affect signal transfer and its total emitting effect, unless two consecutive adjacent LED are Broken. WS2813 adopted the upgraded chips led so WS2813 led make digital led project is more reliable than before.

2) Integrated circuit chips enable the circuit control simpler, neater and more reliable without any extra components.

3) 250us or more of reset time, it won’t cause wrong reset while interruption, it work on the lower frequency and inexpensive MCU.

4) Refresh Frequency updates reach to 2 KHz, Low Frame Frequency and no Flicker appear in HD Video Camera, improving excellent display effect.

WS2813 /cs2803 LED have the following advantage:

Any pixel’s failure won’t affect signal transfer and its total emitting effct. Unless two consecutive adjacent LED is Broken l

Integrated capatior and resistance enable the circuit of pcb is more simple ,easy to make .

250us or more of reset time, it won’t cause wrong reset while interruption, it work on the lower frequency and inexpensive MCU. l Refresh Frequency updates reach to 2KHz, Low Fram Frequency and no Flicker appear in HD Video Camera, improving excellent display effect.

Compare with the former, WS2813 both have some places similar to WS2812, and have its own unique features:

Here is their PIN configuration and physical map:

WS2813:

ws2813-led-chip

Here is their PIN configuration and physical map:

ws2812 vs ws2812b vs ws2813

ws2812b:

ws2812b addressable led chip
