WS2815/SK6813HVIRT1809 RGBW 30- 144Leds 10-12mm

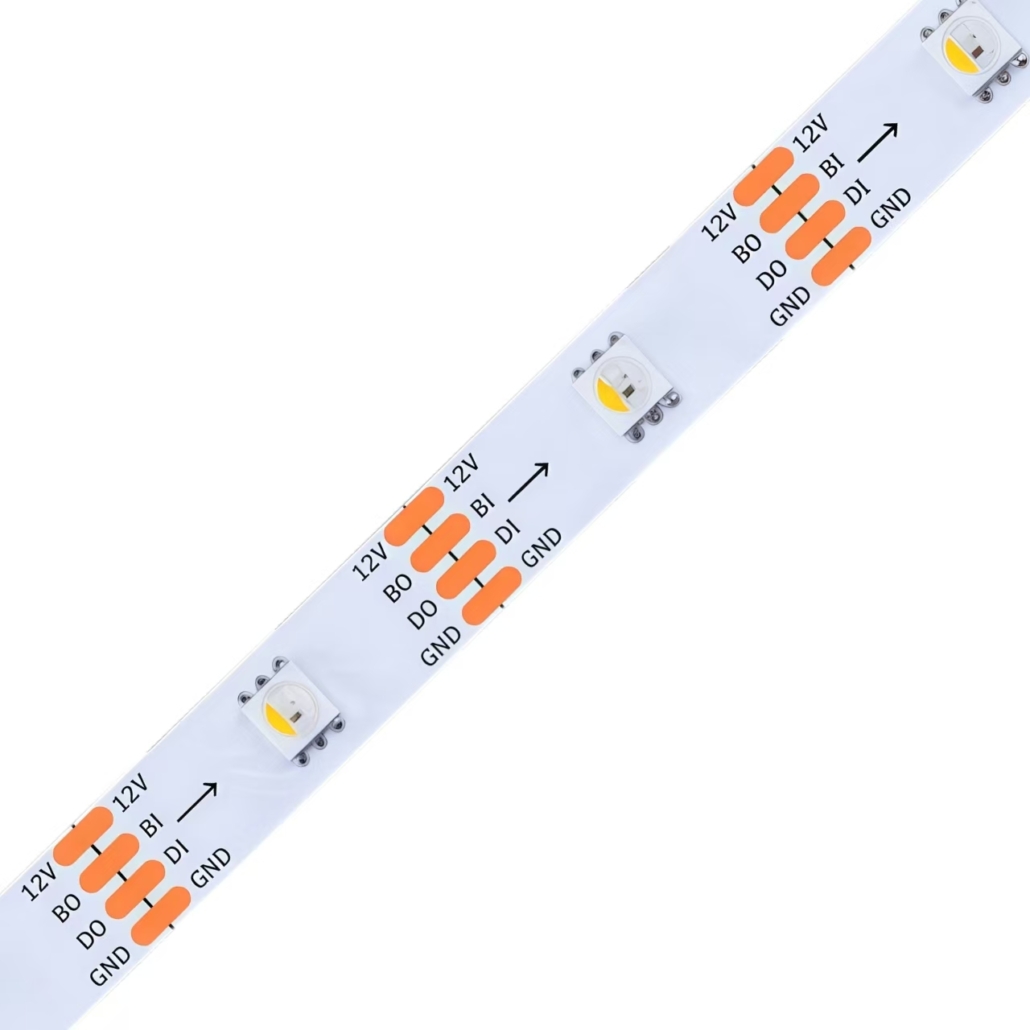

S2815 individually smart LED strip light with built-in lC, 12VDC Input ,Dual Data Signals,break-point transmission.
If any single LED is damaged, it will not affects the overall operation. lt has high brightness and many colors, and can achieve a variety of dynamic lighting effects through the controller.
Extensively suitable for scenarios such as indoor and outdoor decoration,stage lighting, advertising signs, and creative lighting projects,with high reliability and flexibility strip light S2815, SK6813HV and RT1809IC optional.
Specification:
- 2.5W/FT(8.4W/M)
- 1LEDs per pixel(18 LEDs/ft,60 LEDs/m)
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- Controlled with WS2815/SK6813HV/RT1809
- IP20/65/ 67 /68 rating
- 12V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Protocol | Pixels/m | Voltage(V) | Max Power(w/m) |
PCB Width(mm) |
Cut Length(mm) |
| WP-H5050RGBW-30D-10 | 30 | WS2815/SK6813HV/RT1809 | 30 | 12 | 4.2 | 10 | 33.3 |
| WP-H5050RGBW-60D-10 | 60 | WS2815/SK6813HV/RT1809 | 60 | 12 | 8.4 | 10 | 16.6 |
| WP-H5050RGBW-96D-10 | 96 | WS2815/SK6813HV/RT1809 | 96 | 12 | 13.44 | 10 | 10.4 |
| WP-H5050RGBW-144D-10 | 144 | WS2815/SK6813HV/RT1809 | 144 | 12 | 20.16 | 12 | 6.9 |
