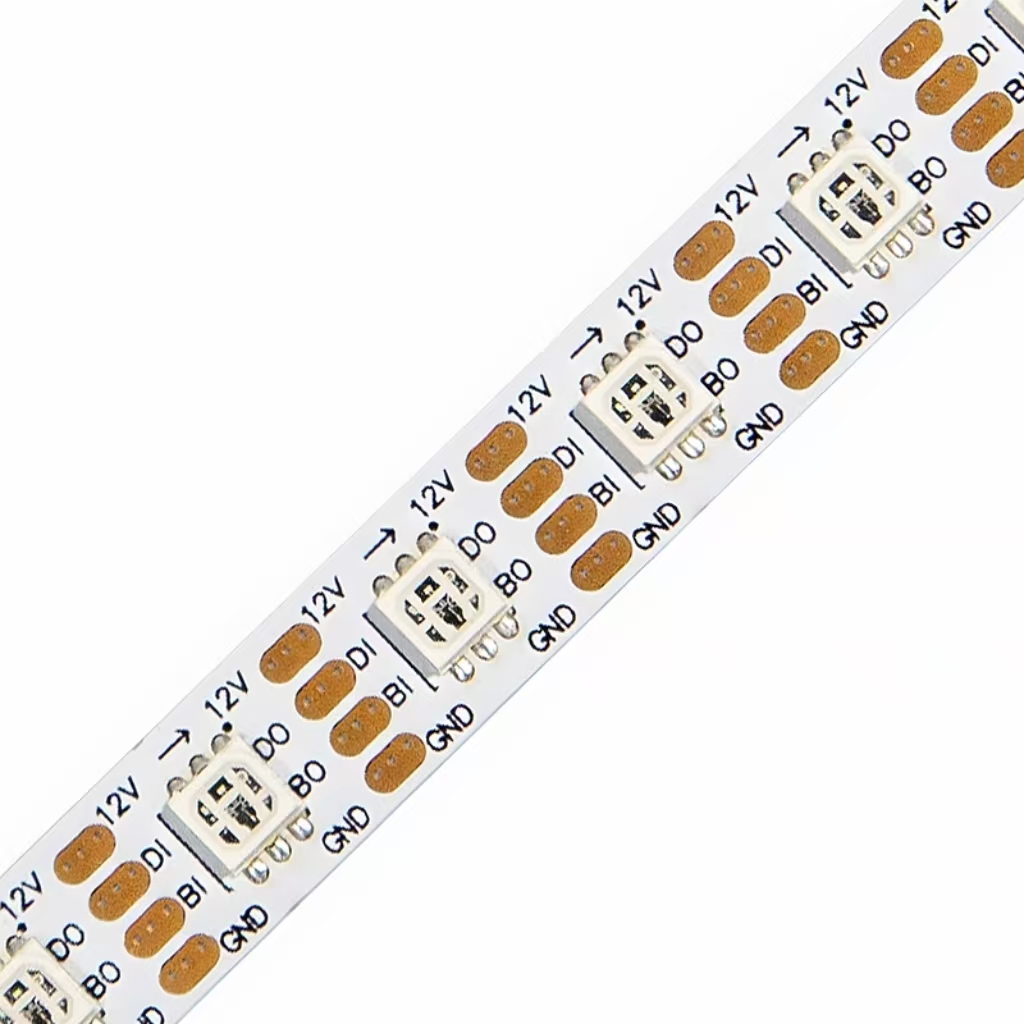

WS2815/SK6813HV/RT1809/CS8812 30-144Leds 10-12mm
WS2815individually smart LED striplight with built-in IC. 12V DC Input ,Dual Data Signals,break-point transmission.
Support any single LED damage does not afect the overall operation.
It has high brightness and many colors, and can achieve a variety of dynamic lighting effects through the controller.
Extensively suitable for scenarios such as indoor and outdoor decoration, stage lighting, advertising signs, and creative lighting projects,with high reliability and flexibility.
WS2815, SK6813HV and RT1809 IC optional
Specification:
- 4.3W/FT(14.4W/M)
- 1LEDs per pixel(18 LEDs/ft,60 LEDs/m)
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- Controlled with WS2815/SK6813HV/RT1809/CS8812
- IP20/65/ 67 /68 rating
- 12V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Protocol | Pixels/m | Voltage(V) | Max Power(w/m) |
PCB Width(mm) |
Cut Length(mm) |
| WP-H5050RGB-30D-10 | 30 | WS2815/SK6813HV/RT1809 | 30 | 12 | 3.5 | 10 | 33.3 |
| WP-H5050RGB-60D-10 | 60 | WS2815/SK6813HV/RT1809 | 60 | 12 | 7 | 10 | 16.6 |
| WP-H5050RGB-96D-10 | 96 | WS2815/SK6813HV/RT1809 | 96 | 12 | 12 | 10 | 10.4 |
| WP-H5050RGB-100D-10 | 100 | CS8812/RT1809 | 100 | 12 | 15 | 10 | 10 |
| WP-H5050RGB-144D-10 | 144 | WS2815/SK6813HV/RT1809 | 144 | 12 | 16.8 | 12 | 6.9 |
