TM1934/TM1935/TM1914/WS2818/ GS8206 5050RGB 30-72Leds/

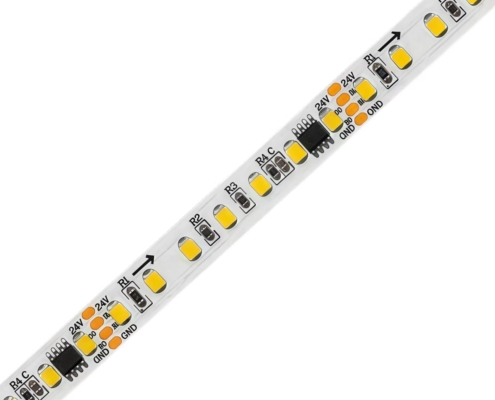

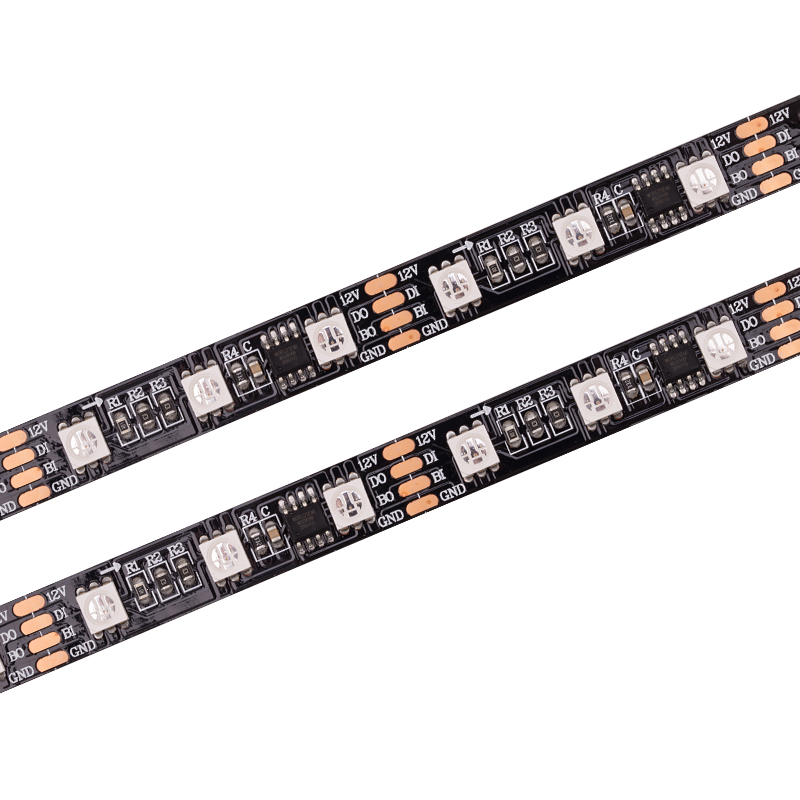

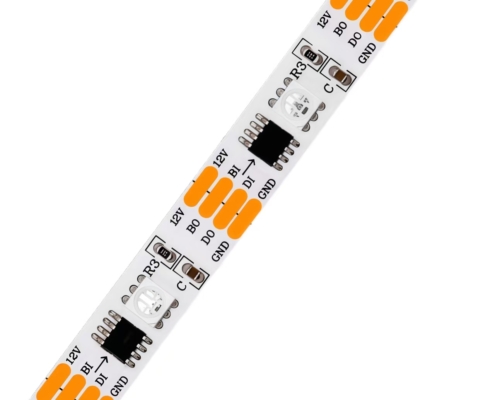

TM1934 smart LED strip light is a type of external IC LED tape light, for the DC12V model, each IC control 3LEDs, and for the DC24V model, each IC control 6 LEDs. Breakpoint Transmission External IC Pixel LED Strip, TM1934 GS8206 WS2818 TM1914 IC optional.
Specification：
- 4.3W/FT(14.4W/M)
- 6LEDs per pixel ,60 LEDs/m
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- Controlled with TM1934
- IP20/65/ 67 /68 rating
- 24V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Protocol | Pixels/m | Voltage(V) | Max Power(w/m) |
PCB Width(mm) |
Cut Length(mm) |
| WP-H5050RGB-30D-10 | 30 | TM1934/TM1935/TM1914/ WS2818/GS8206 |
6 | 12 | 7.2 | 10 | 100 |
| WP-H5050RGB-30D-10 | 30 | TM1934/TM1935/TM1914/ WS2818/GS8206 |
10 | 24 | 7.2 | 10 | 100 |
| WP-H5050RGB-60D-10 | 60 | TM1934/TM1935/TM1914/ WS2818/GS8206 |
20 | 12 | 14.4 | 10 | 50 |
| WP-H5050RGB-60D-10 | 60 | TM1934/TM1935/TM1914/ WS2818/GS8206 |
10 | 24 | 14.4 | 10 | 100 |
| WP-H5050RGB-72D-10 | 72 | TM1934/TM1935/TM1914/ WS2818/GS8206 |
12 | 24 | 17.2 | 10 | 83.3 |
