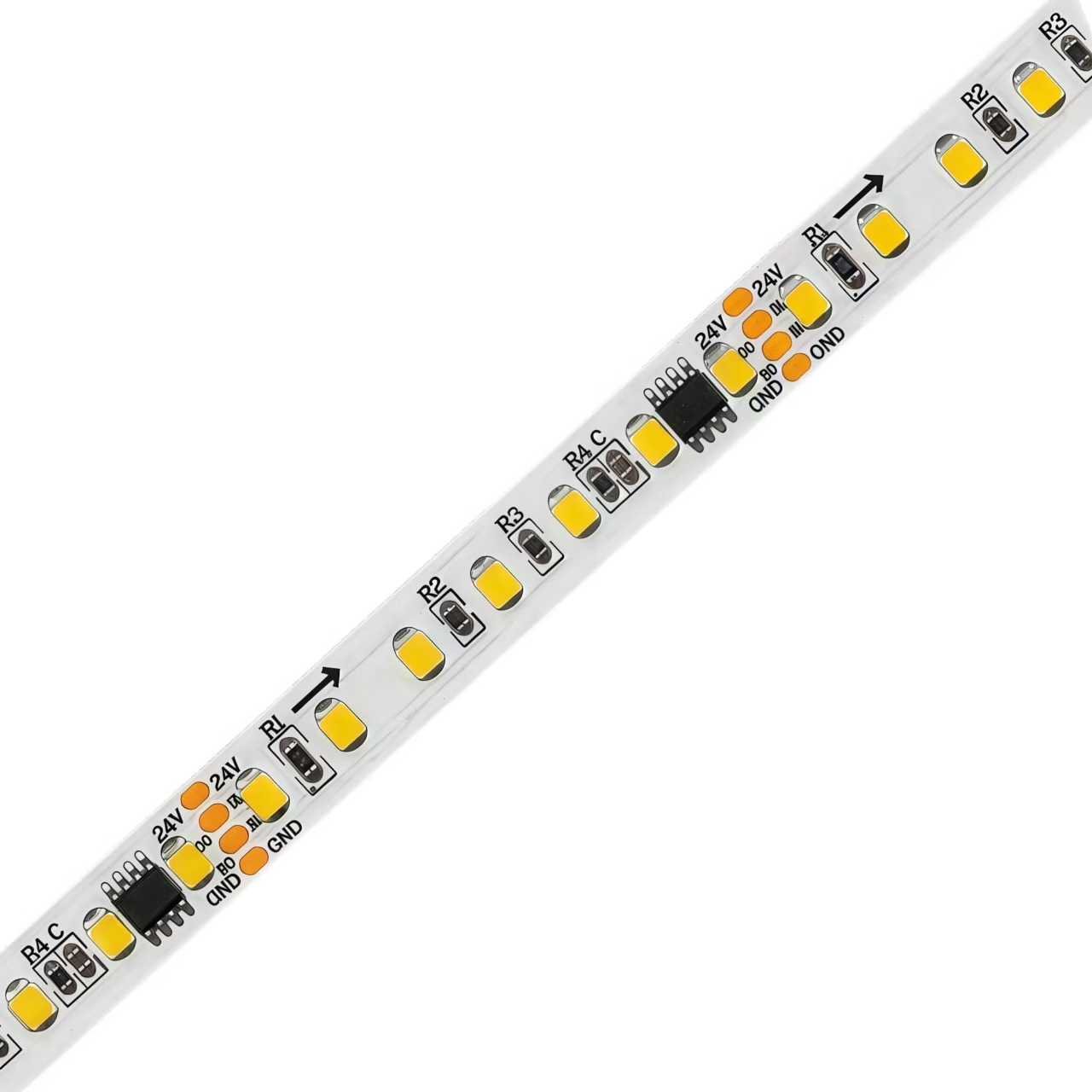

TM1934/TM1935/TM1914/WS2818/ GS8206 2835W 112Leds/m
TM1934 breakpoint transmission white smart LED strip light is a high-performance smart light strip, 2835SMD, 112LEDs per meter, supports breakpoint transmission function.
Even if the light strip is partially damaged, other LEDs can still work normally.
It uses TM1934 and WS2818 chips and has the characteristics of high brightness, low power consumption and rich colors.
It is widely used in architectural decoration, stage lighting, smart home and other scenarios to meet diverse lighting design needs.
Specification:
- 4.6W/FT(15.36W/M)
- 7LEDs per pixel,112LEDs/m
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- Controlled with TM1914/WS2818
- IP20/65/ 67 /68 rating
- 24V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Protocol | Pixels/m | Voltage(V) | Max Power(w/m) |
PCB Width(mm) |
Cut Length(mm) |
| WP-H2835W-112D-10 | 112 | TM1934/TM1935/TM1914/ WS2818/GS8206 |
16 | 24 | 15.36 | 10 | 62.25 |
