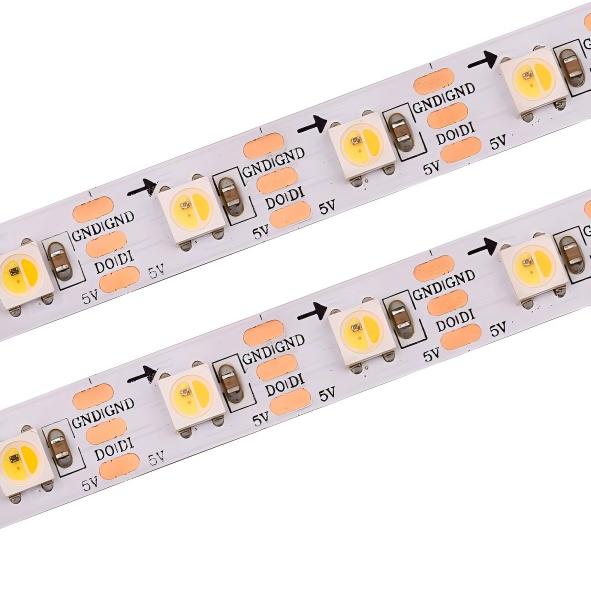

SK6812/WS2812B 5050WWA 30-144Leds
SK6812WWA light strip is a high-performance smart light strip.
Each LED has a built-in SK6812 chip, which supports a variety of white light color temperature adjustments, with richer colors and higher brightness.
Through single-line protocol control, a variety of dynamic lighting effects can be achieved.
The light strips are soft, cuttable and easy to install, suitable for decorative lighting, creative design and atmosphere creation.
Specification:
- 3.6W/FT(12W/M)
- 1 LEDs per pixel,60 LEDs/m
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- Controlled with SK6812/WS2812
- IP20/65/ 67 /IP68 rating
- 5V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Protocol | Pixels/m | Voltage(V) | Max Power(w/m) |
PCB Width(mm) |
Cut Length(mm) |
| WP-H5050WWA-30D-10 | 30 | SK6812/WS2812B | 30 | 5 | 6 | 10 | 33.3 |
| WP-H5050WWA-60D-10 | 60 | SK6812/WS2812B | 60 | 5 | 12 | 10 | 16.6 |
| WP-H5050WWA-72D-10 | 72 | SK6812/WS2812B | 72 | 5 | 14.4 | 10 | 13.8 |
| WP-H5050WWA-96D-10 | 96 | SK6812/WS2812B | 96 | 5 | 19.2 | 10 | 10.4 |
| WP-H5050WWA-144D-12 | 144 | SK6812/WS2812B | 144 | 5 | 28.8 | 12 | 6.9 |
