SK6805 2427RGB 60Leds 6mm

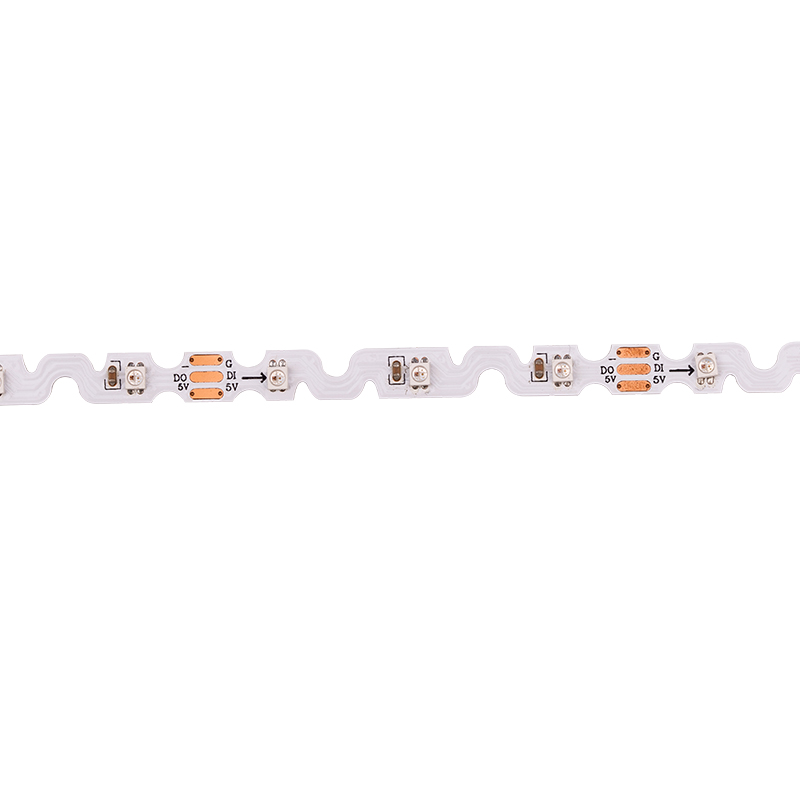

This pixel multicolored RGBIC Zigzag LED strip is an smart LED strip light (built-in SK6805 IC,with Clock and Data signal wire).Great flexibility to be bent, twisted and folded to form irregular shapes. It can be used for signage industry and consumer electronics to create vivid animation effect.
Specification:
- 1.3W/FT(4.5W/M)
- 1LEDs per pixel,60 LEDs/m
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- Controlled with SK6805
- IP20/65/ 67 /68 rating
- 5V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Protocol | Pixels/m | Voltage(V) | Max Power(w/m) |
PCB Width(mm) |
Cut Length(mm) |
CRI |
| WP-H2427RGB-60D-10S | 60 | SK6805 | 60 | 5 | 4.5 | 6 | 16.6 | / |
Application
