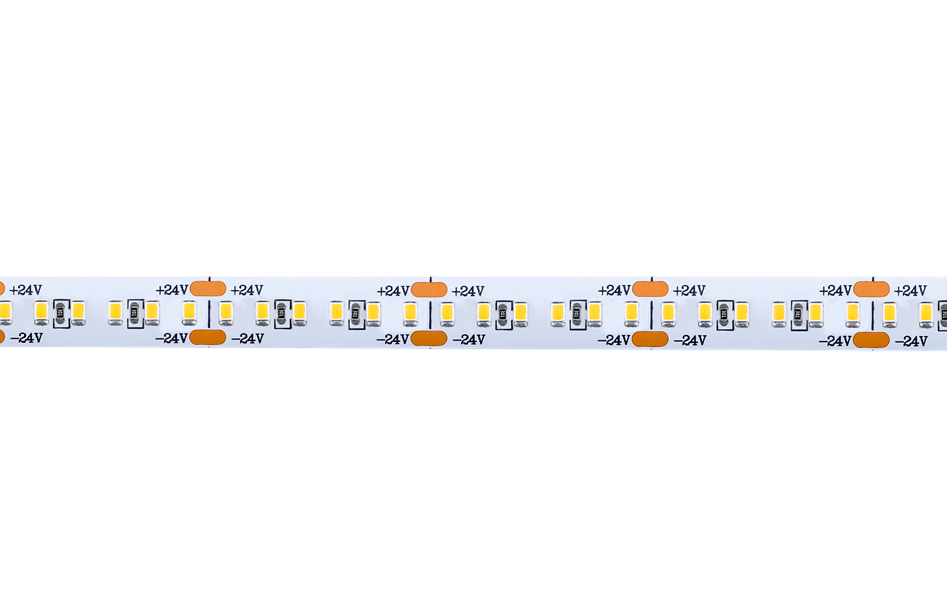

2216 SMD 240-300Leds/m 4-10mm

With bright 22160 LED chips, the ultra-thin LED tape light is available in various density from 240 LEDs to 300 LEDs.

High Density 2216 LED Tape Light creates an even light output with no darkspots, perfect for applications that require bright and dynamic illumination.

The LED tape is best installed in aluminum channel.

Specification:

  • 3.6W/FT(12W/M)
  • 32.8ft(10m) max.run length ( standard model)
  • 120 degree beam angle
  • IP20/65/ 67/68 rating
  • 24V input
  • Ambient Temperature -25℃~+45℃
  • Storage Temperature -25℃~+60℃
Product ModelLEDs/m    Max
Power(w/m)
   PCB
Width(mm)
Color
Temperature
   Luminous
efficacy(LM/W)
Voltage(V)   Cut
Length(mm)
CRI
WP-2216-240D-82401282700K/4000K/6500K90-120242580/90/95+
WP-2216-240D-1024012102700K/4000K/6500K90-120242580/90/95+
WP-2216-280D-42801242700K/4000K/6500K90-120242580/90/95+
WP-2216-280D-62801262700K-6500K90-120242580/90/95+
WP-2216-300D-1030012102700K/4000K/6500K90-120242080/90/95+
