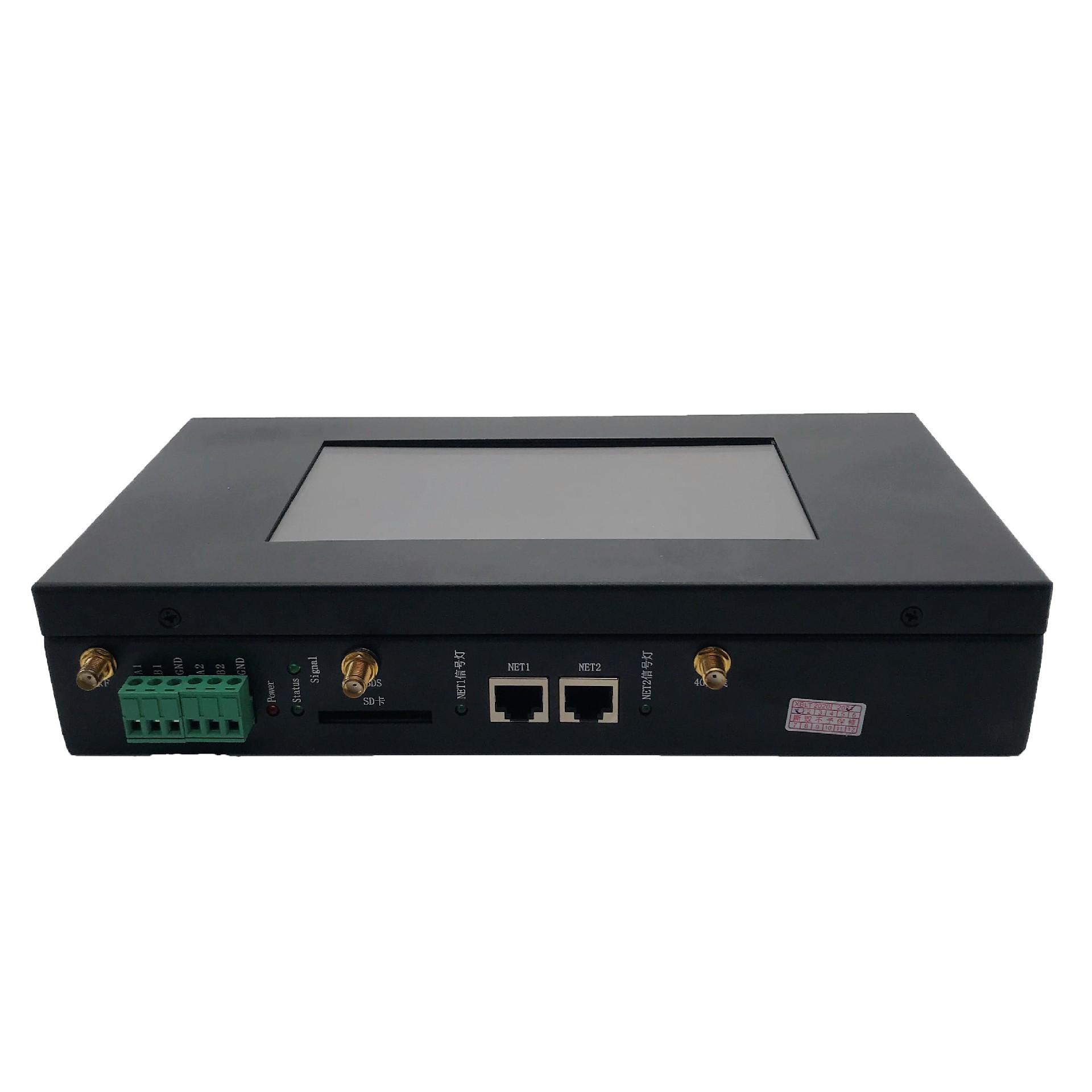

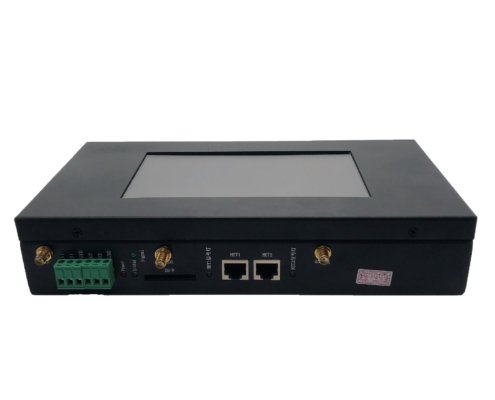

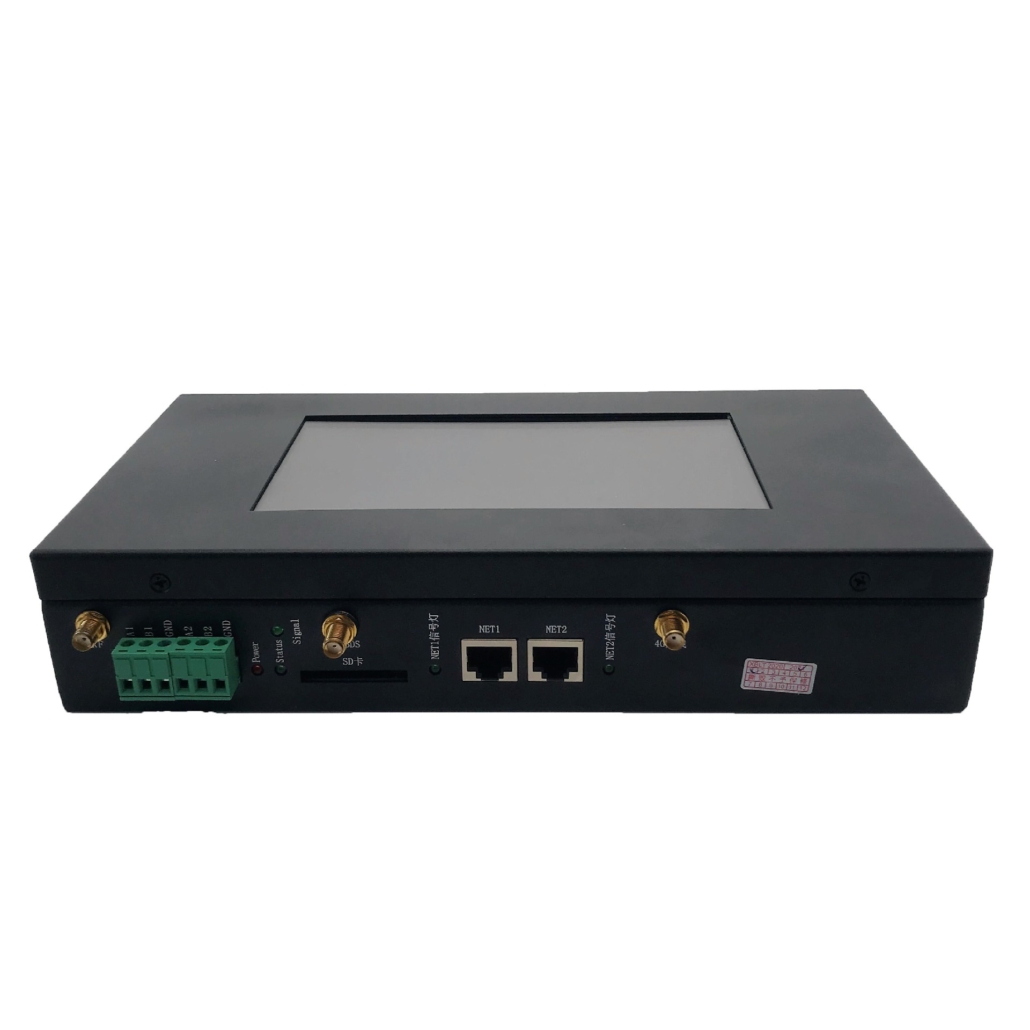

The XB-809 LED controller is a powerful lighting control system device. Its extra-large touch screen facilitates intuitive operation and enables real-time monitoring of the controller status. With strong performance, it can support a maximum of 160,000 pixels or 80 sub-controllers, making it suitable for large-scale lighting display venues such as urban landmark buildings and large parks.

• Playback content is stored in the SD card. A maximum of 32 effect files can be stored in the SD card. The SD card capacity supports 4G – 32GB, and single – effect playback, effect loop playback, and effect acceleration/deceleration are supported.
• The main controller can automatically/manually number sub – controller IDs, and multiple controllers can be numbered together or a single controller can be numbered.
• The main controller has multiple built – in effects and dimming functions, and can test multi – channel lamps under load.
• The controller has DMX512 addressing function and address testing. A single port or all ports can carry DMX512 IC for addressing, and address testing can be performed on lamps.
• The controller adopts the standard TCP/IP network protocol, and the signal transmission is more stable; 100M/1000M transmission rate is optional.
• It can be used offline with our T – 730/T – 790, and can carry a maximum of 160,000 pixels or 80 controllers.
• Supports GPS/BDS dual – mode satellite synchronization, supports wireless radio frequency synchronization, and supports GPS/BDS dual – mode loop synchronization.
• For IC controllers of DMX lamps, the built – in address writing function is available.
