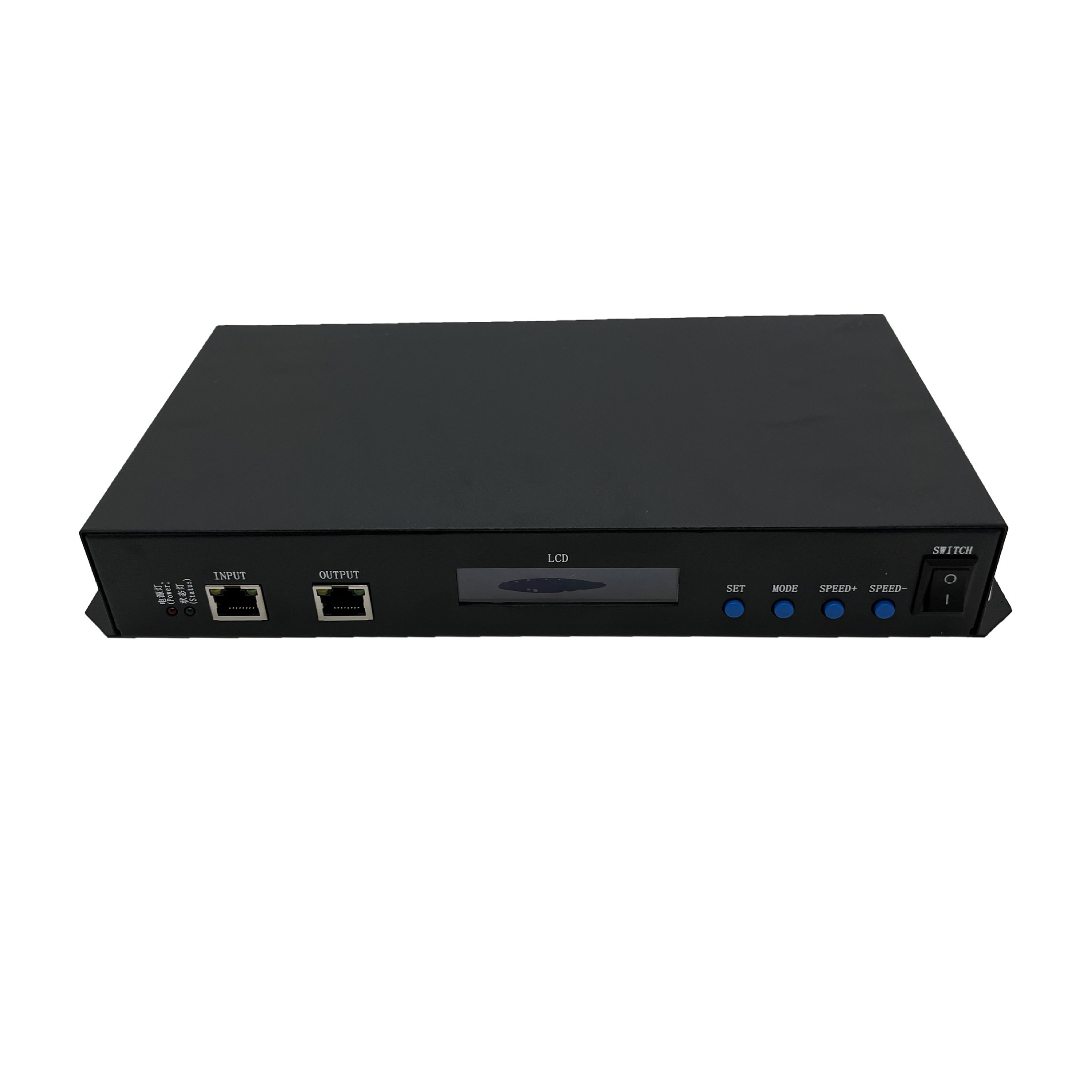

The T – 760 LED controller is mainly used in lighting control systems. It supports multiple signal protocols such as DMX512, can control DMX512 lamps, and can be applied in the fields of stage lighting and commercial lighting to realize the presentation and adjustment of different lighting effects. It has functions such as multi – port output, pixel carrying, address writing and testing, and can accurately control a large number of lamps. It can also cooperate with related software (such as Madrix and LedPlayer) to realize rich operations such as scheduled program playback, segment selection, brightness adjustment, and cyclic playback of text and pictures.

•  Output ports feature three-way protection, preventing damage from lamp short circuits or reverse connections.
•  Supports automatic/manual ID numbering, applicable for multiple or single controllers.
• Built-in test effects, compatible with RGB/RGBW lamps for loaded lamp testing.
• Supports DMX512 addressing and address testing; enables single/all-port address writing to DMX512 ICs and lamp address testing.
• Uses TCP/IP protocol; 100M/1000M auto-adaptive transmission, stable and fast. Max cascading distance between two controllers is 100m; switches or fibers extend longer distances.
• Equipped with LCD screen, displaying controlled model, ID and working status.
• Cooperates with LedPlayer software for PC control: real-time connection monitoring, scheduled playback, segment selection, brightness/white balance/speed adjustment, text/picture cyclic playback. Built-in Gamma correction for delicate colors.
• IP address settable for network design; supports linked/standalone control (linked priority). Automatically switches to standalone effects without linked signals.
