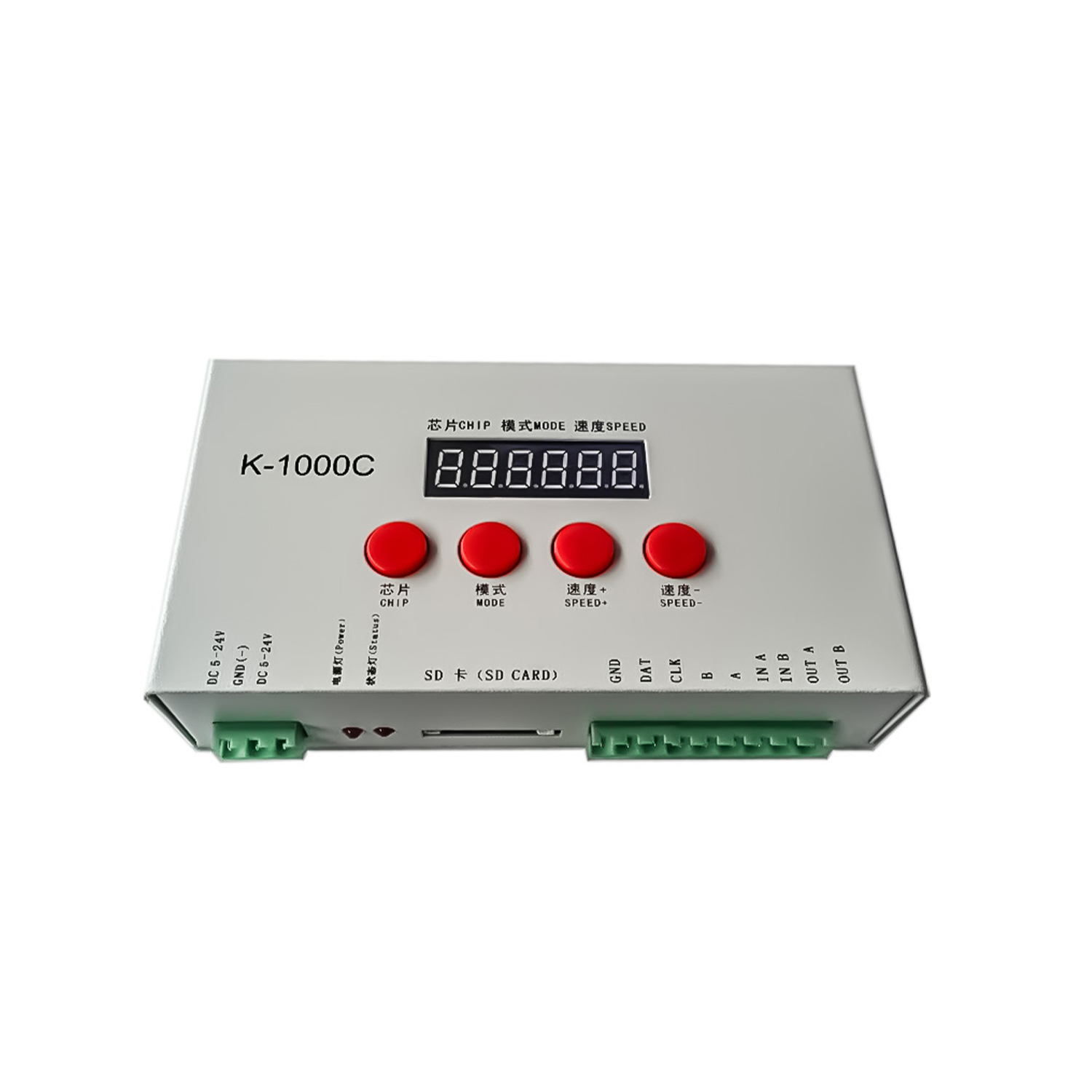

The K – 1000C LED controller is applied in the lighting control system. It supports single – machine operation and can also be cascaded with multiple machines. Moreover, the cascading adopts photoelectric isolation technology, which has strong anti – interference ability and good stability. It is suitable for some projects that require large – scale lighting control, such as the facade light show of large buildings. Through the cascading of multiple controllers, a large number of lamps can be controlled to achieve complex lighting change effects.

• 1. 32 – 65536 – level gray control, with software gamma correction.
• 2. Supports various point, line, and area light sources, as well as regular and special – shaped processing.
• 3. The single – port output of the controller can reach up to 512/2048 pixels (the DMX luminaire can have a maximum of 512 pixels via three channels).
• 4. Playback content is stored in an SD card, which can hold up to 32 effect files and supports a capacity of 128MB – 32GB.
• 5. The controller can be used alone or in multiple cascades. Cascading uses photoelectric isolation, with strong anti – interference ability and good stability. The cascading distance between two units can reach 150 meters, and a 0.5 – square – meter pure copper power cord is required.
• 6. The controller with a loaded chip can lock the loaded IC in software or not. By adjusting the controller’s chip button to select the loaded IC, this scheme is more flexible and convenient.
• 7. The IC controller for DMX luminaires has a write – address function; in addition, with our 2016 LedEdit – K V3.26 or higher software, a one – click address function can be set.
• 8. Supports on – board luminaires with 4 – channel (RGBW) pixels or split into single – channel point pixels.
• 9. Enhanced TTL and 485 differential (DMX) signal output.
• 10. Comes with 22 test effects and a DMX512 test function.
