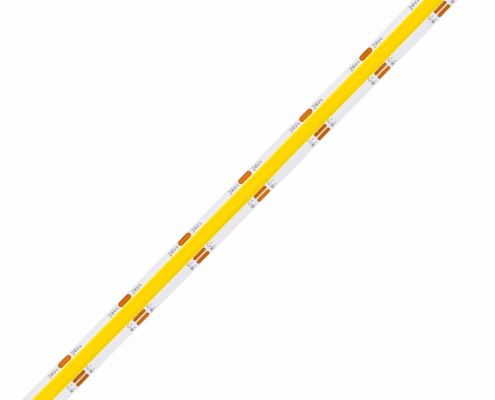

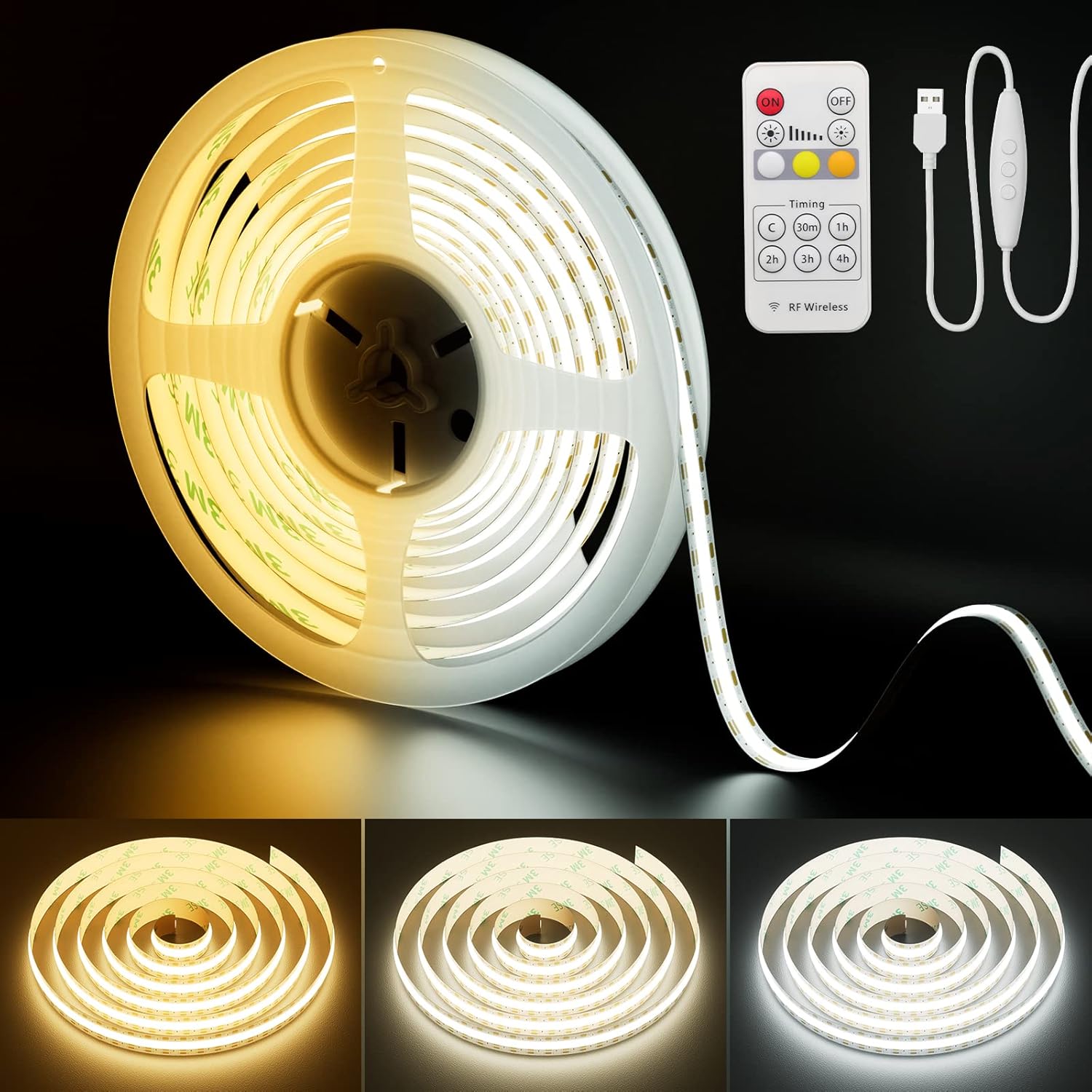

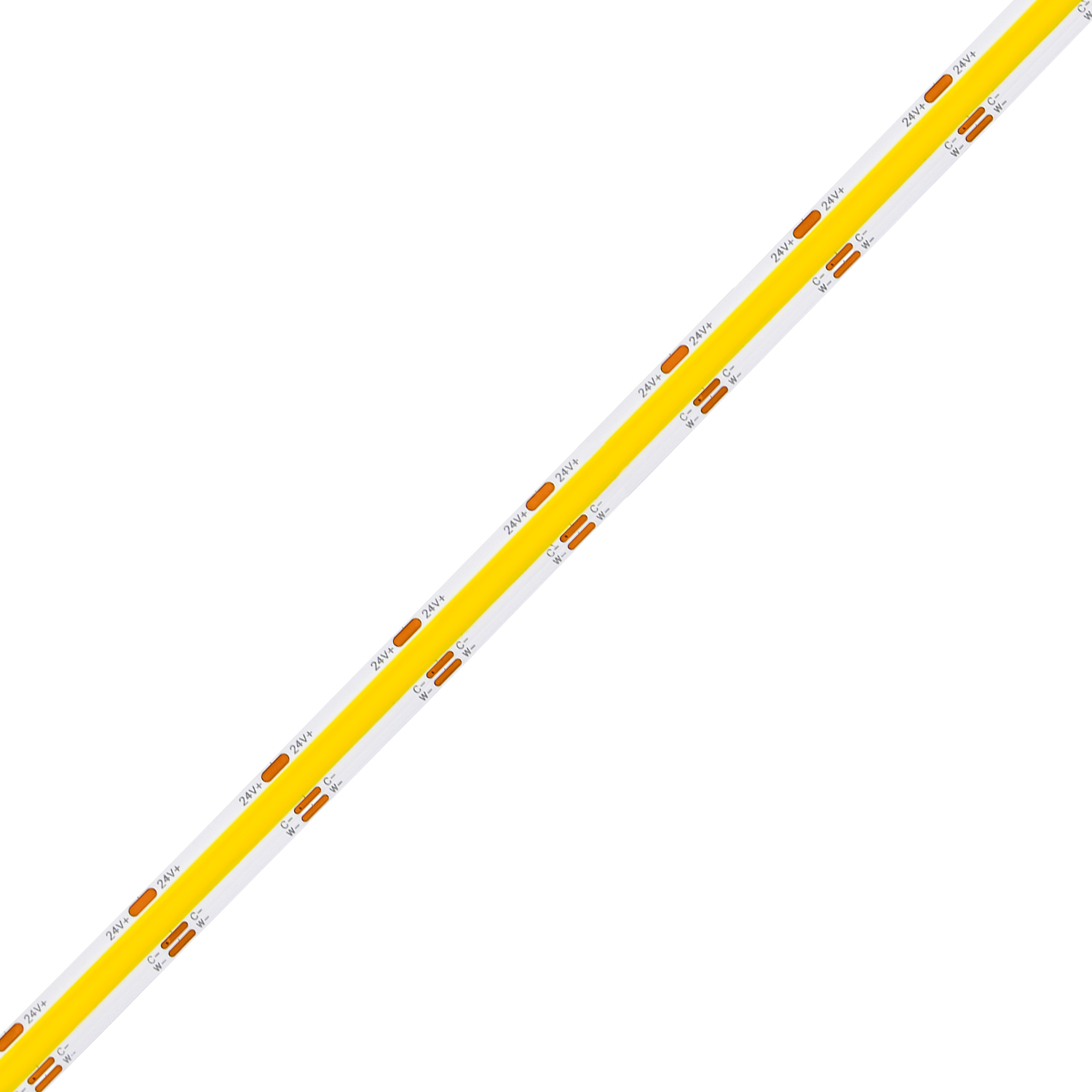

High Quality COB Tunable White Strip Light with 624 Chips/m10/8mm Width
COB(Chip on Board) tunable white strip light uses high density chips with glue and 180 degree beam angle to achieve uniform light emission.
Except normal feature like CRI>90,SDCM<3, tunable CCT the color temperature can be easily adjusted from warm to cool white(2600K-6500K).
It can meet different atmosphere requirement.
- 4.62W/FT(15.4W/M)
- 624 LED Chip/M
- 32.8ft(10m) max.run length
- 180 degree beam angle
- Cut Length: 19.23MM
- IP20/65/67/68rating
- 24V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| LEDs/m | Max Power(w/m) | PCB Width(mm) | Color Temperature | Luminous Efficacy(LM/W) | Voltage（V） | Cut Length(mm) | CRI |
| 624 | 15.4 | 8/10 | 2600-2800K | 72-88 | 24 | 19.23 | 90+ |
| 624 | 15.4 | 8/10 | 6000-6500K | 81-99 | 24 | 19.23 | 90+ |
