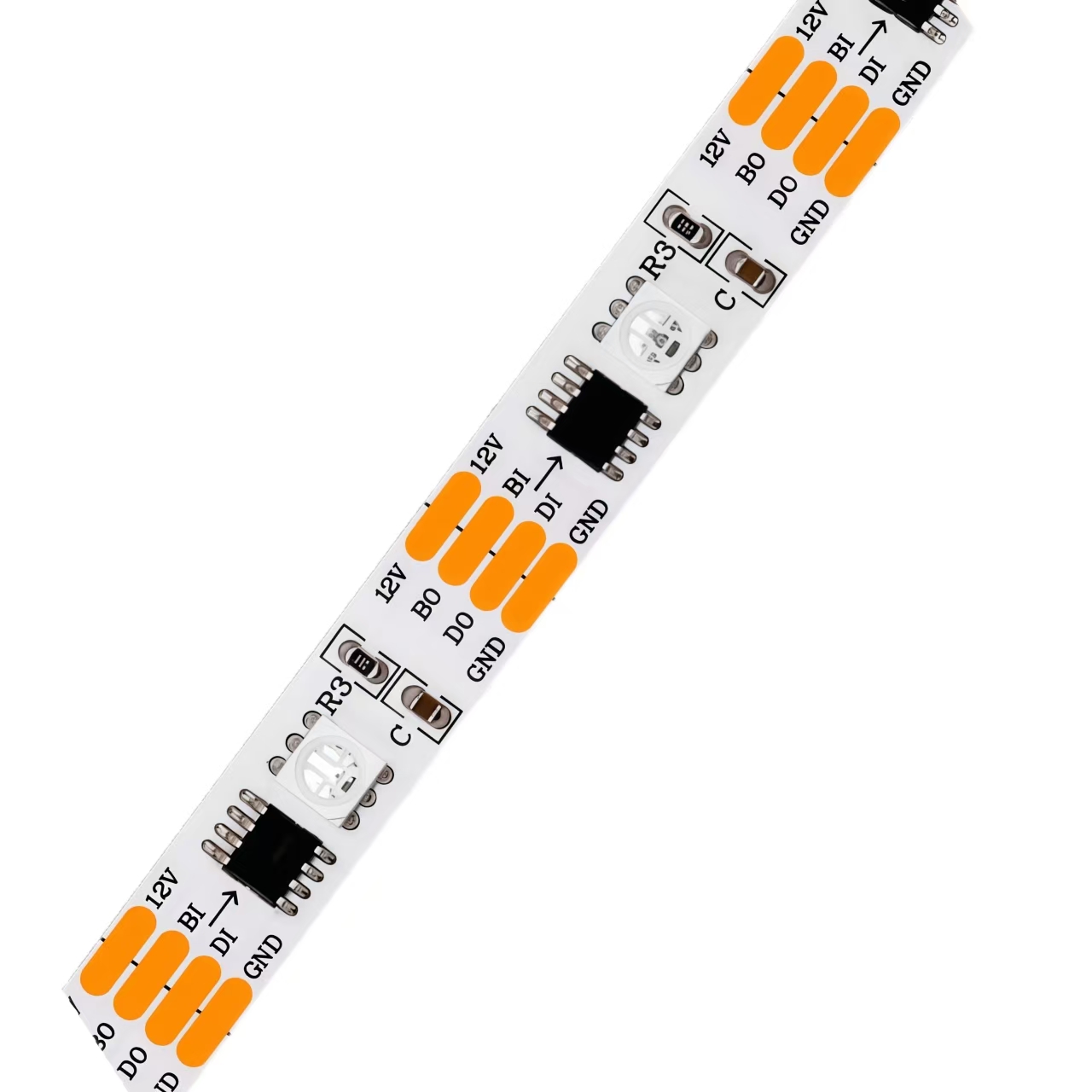

GS8208/TM1908 5050RGB 30-60Leds/m
GS8208 smart LED strip light with double data line DATA1 DATA2, signal break-point continuous transmission, individually controllable.
RGB LEDs , External IC with gamma scaling makes dimming curves more smooth.
Higher PWM rate,8KHZ PWM rate allows for filming pixels with around 260fps.
When we make electrostatic interference test, GS8208 work regularly when we put mobile near to it.
Specification:
- 4.3W/FT(14.4W/M)
- 1LEDs per pixel,60 LEDs/m
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- Controlled with GS8208
- IP20/65/ 67 /68 rating
- 12V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Protocol | Pixels/m | Voltage(V) | Max Power(w/m) |
PCB Width(mm) |
Cut Length(mm) |
| WP-H5050RGB-30D-10 | 30 | GS8208/TM1908 | 30 | 12 | 7.2 | 10 | 33.3 |
| WP-H5050RGB-48D-10 | 48 | GS8208/TM1908 | 48 | 12 | 11.5 | 10 | 20.8 |
| WP-H5050RGB-60D-10 | 60 | GS8208/TM1908 | 60 | 12 | 14.4 | 10 | 16.6 |
