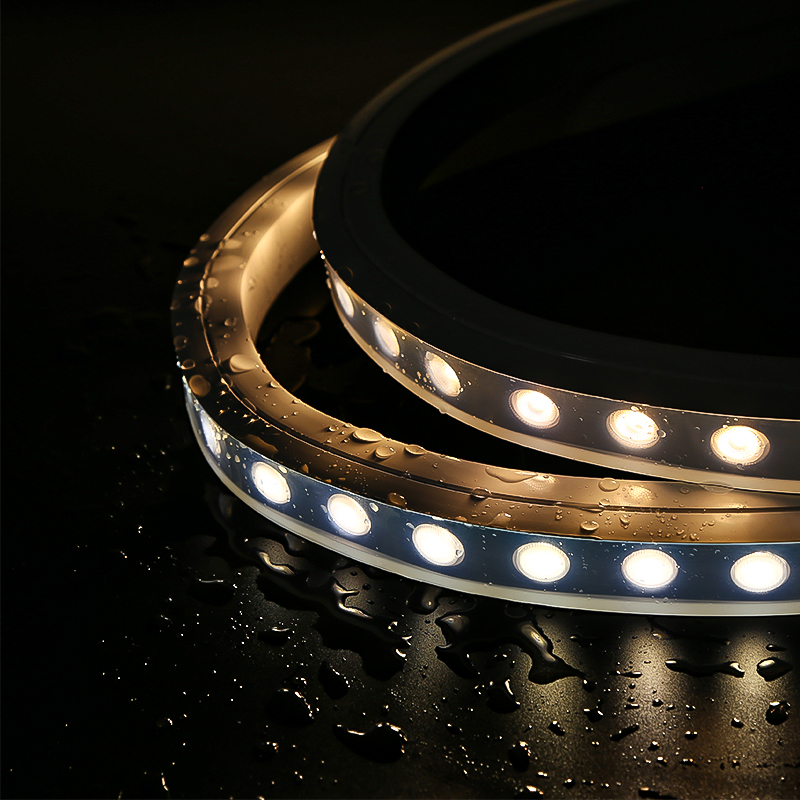

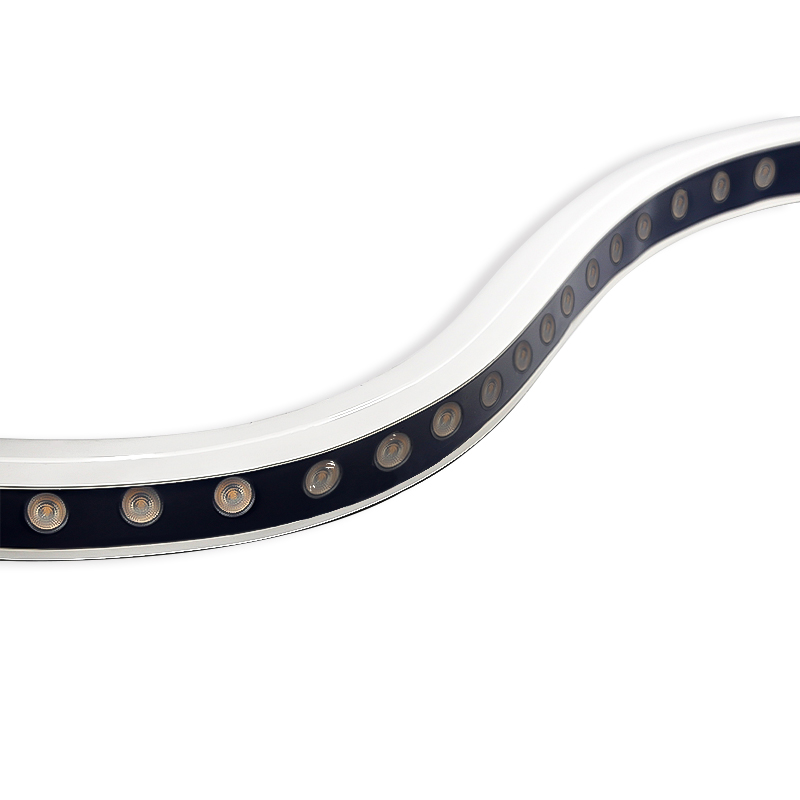

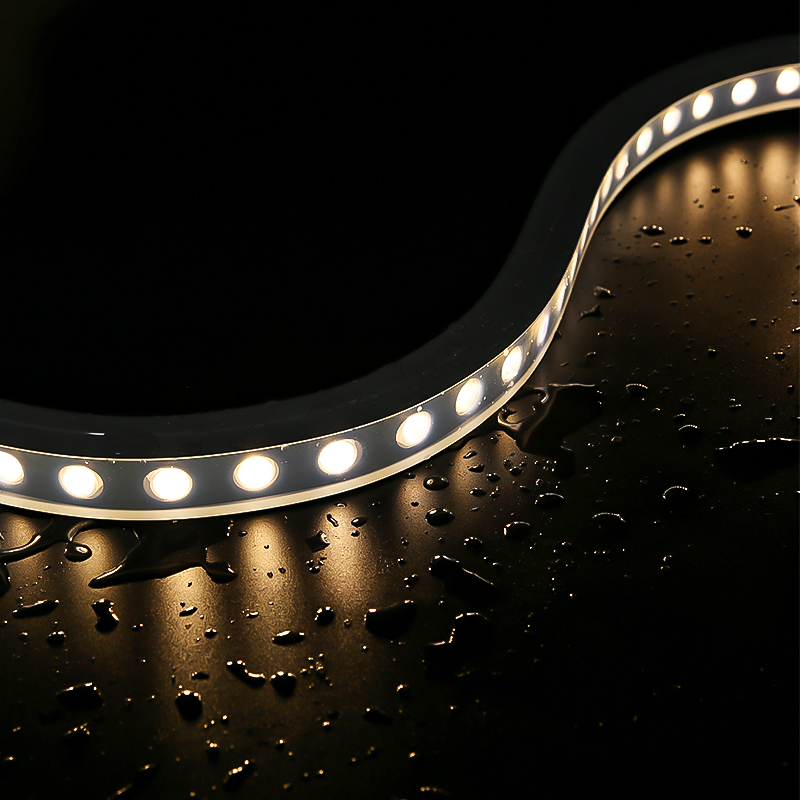

Flexible Led Wall Washer 2523
The flex LED wall washer light is designed to illuminate a large vertical surface such as a wall or a facade. The external coating is made of anti-UV, food grade silicone, extremely flexible and suitable for a wide range of applications
Specification：
- Voltage: 24V
- Wattage: 14.4W Per Meter
- IP Rating: IP67
- Beam Angle: 30°/45°/60°/25*45°
- Dimension: 25x23mm
- Storage temperature: -25 – 60°C
- Ambient temperature: -25 – 50°C
- Standard Packaging: 5M/Roll
- Accessories: Mounting clips, aluminum profile
Specifications
| Product Model | CCT/Color | IC Protocol | Pixels/m | Max Power(w/m) | Luminous Efficacy(LM/W) | Cut Length (mm)@24V | Beam Angle | CRI |
| WTP – FW2523 – S | Red,Green,Blue,etc | DMX512 | / | 18 | 15 – 35 | 166.66 | 30°,45°,60°,25*45° | Single color |
| WTP – FW2523 – W | 3000K/4000K/6500K | DMX512 | / | 18 | 90 – 110 | 166.66 | 30°,45°,60°,25*45° | 80+,90+,95+ |
| WTP – FW2523 – RGBW | RGBW | DMX512 | 6 | 20 | 15 – 35 | 166.66 | 30°,45°,60°,25*45° | 80+,90+,95+ |
