CS8805 2020RGB 96Leds/m

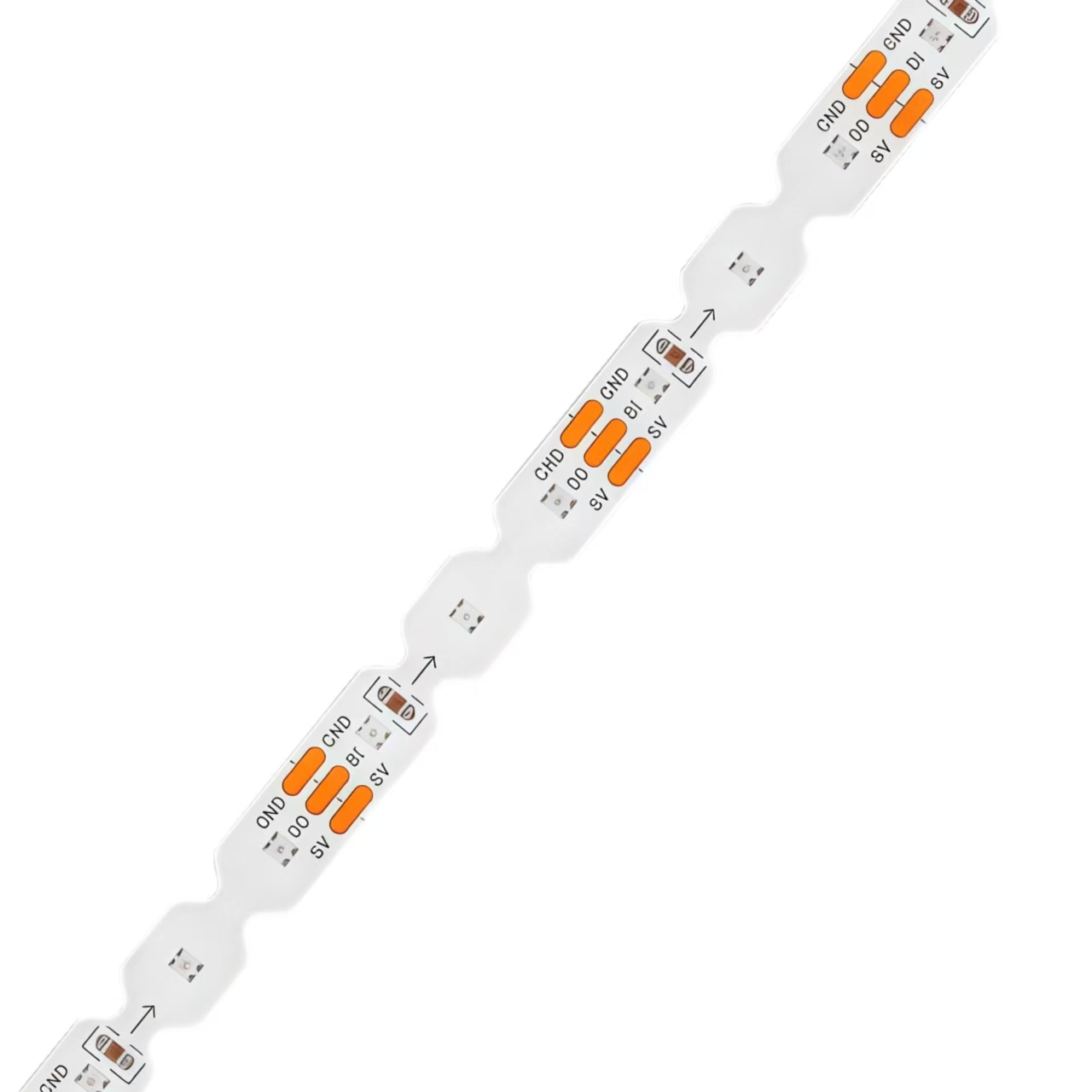

This pixel multicolored RGBIC Zigzag LED strip features a serrated design with greater flexibility to be bent, twisted and folded to form irregular shapes.It can be used for signage industry to create vivid animation effect.
Specification:
- 2.8W/FT(9.6W/M)
- 1LEDs per pixel,96 LEDs/m
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- Controlled with CS8805
- IP20/65/ 67 /68 rating
- 5V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | IC Protoco | l Pixels/m | Voltage(V) | Max Power(w/m) |
PCB Width(mm) |
Cut Length(mm) |
CRI |
| WP-H2020RGB-96D-10S | 96 | CS8805 | 96 | 5 | 9.6 | 10 | 10.4 | / |
