5050RGB/RGBW 42-48Leds/m

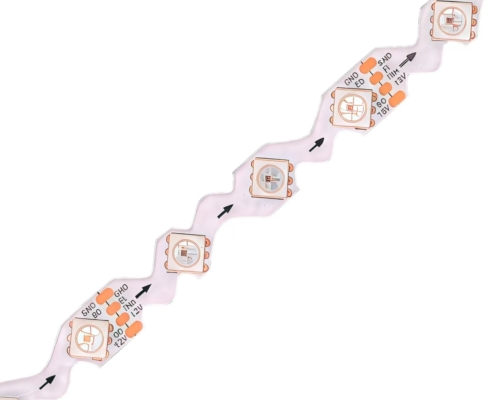

This RGB/RGBW zigzag LED strip features a serrated design with greater flexibility to be bent, twisted and folded to form irregular shapes.
Specification:
- 4.5W/FT(15W/M)
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- IP20/65/ 67/IP68 rating
- 24V input
- Ambient Temperature -25℃ ~+45℃
- Storage Temperature -25℃ ~ +60℃
Specifications
| Product Model | LEDs/m | Max Power(w/m) |
PCB Width(mm) |
Color Temperature |
Luminous efficacy(LM/W) |
Voltage(V) | Cut Length(mm) |
CRI |
| WP-5050RGBW-48D-12S | 48 | 15 | 12 | RGBW | 55 | 12 | 62.5 | 90+ |
| WP-5050RGB-42D-12S | 42 | 10.08 | 12 | RGB | 35 | 12 | 71.4 | / |
