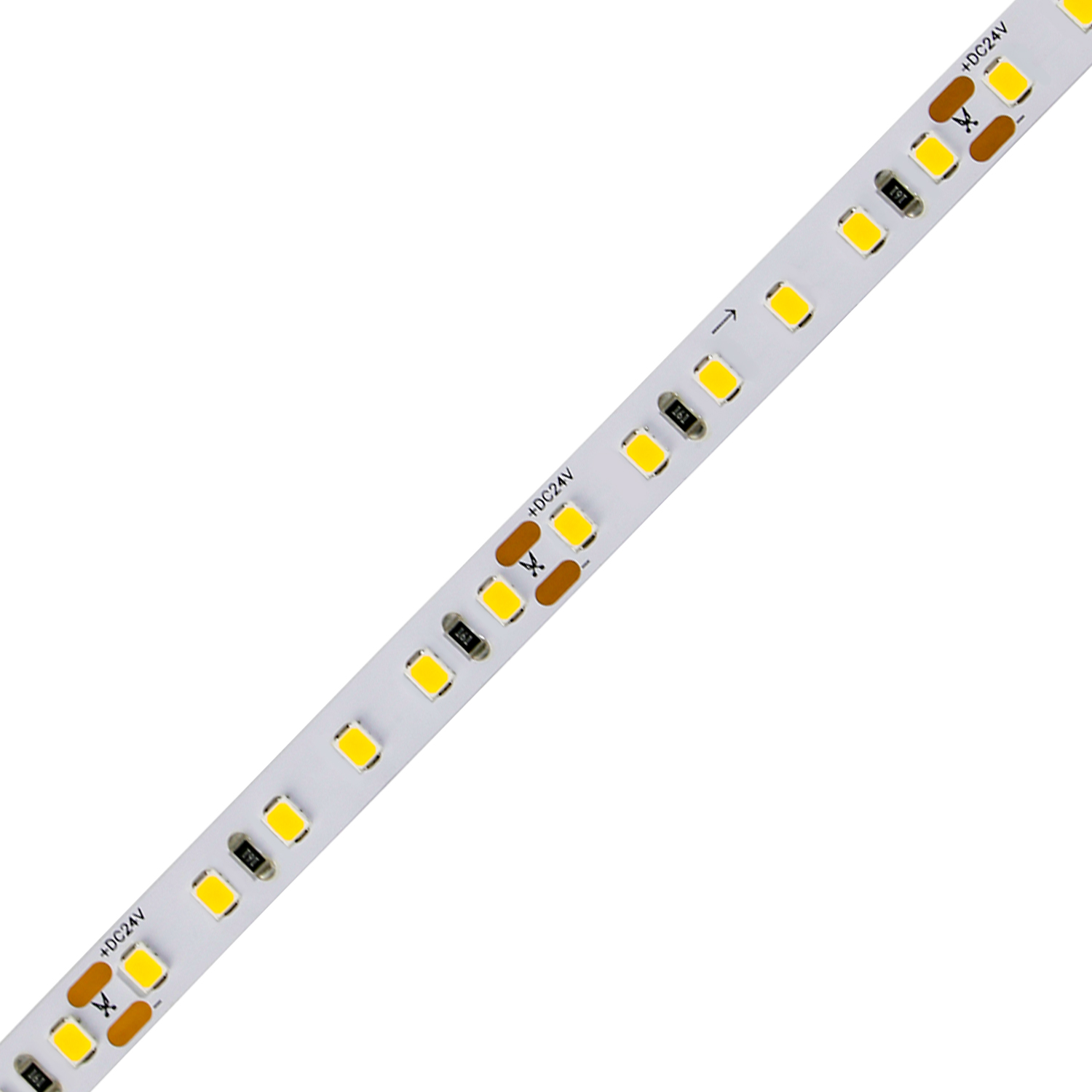

2835 SMD 60Leds/m 10mm/8mm/5mm
2835 single color light strips have the characteristics of high brightness, low power consumption, and long life. 2835 single color light strips usually have higher brightness and are suitable for occasions that require stronger light.
It can be used for homes, commercial displays, and billboards. Installation is flexible in display windows and other places, and the protection levelm can be selected according to needs.
Specification:
- 3.6W/FT(12W/M)
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- IP20/65/ 67/IP68 rating
- 24V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | Max Power(w/m) |
PCB Width(mm) |
Color Temperature |
Luminous efficacy(LM/W) |
Voltage(V) | Cut Length(mm) |
CRI |
| WP-2835W-60D-5 | 60 | 12 | 5 | 2700K/4000K/6500K | 100-110 | 12 | 50 | 80/90/95+ |
| WP-2835W-60D-5 | 60 | 12 | 5 | 2700K/4000K/6500K | 100-110 | 24 | 100 | 80/90/95+ |
| WP-2835W-60D-8 | 60 | 12 | 8 | 2700K/4000K/6500K | 100-110 | 12 | 50 | 80/90/95+ |
| WP-2835W-60D-8 | 60 | 12 | 8 | 2700K/4000K/6500K | 100-110 | 24 | 100 | 80/90/95+ |
| WP-2835W-60D-10 | 60 | 12 | 10 | 2700K/4000K/6500K | 100-110 | 12 | 50 | 80/90/95+ |
| WP-2835W-60D-10 | 60 | 12 | 10 | 2700K/4000K/6500K | 100-110 | 24 | 100 | 80/90/95+ |
