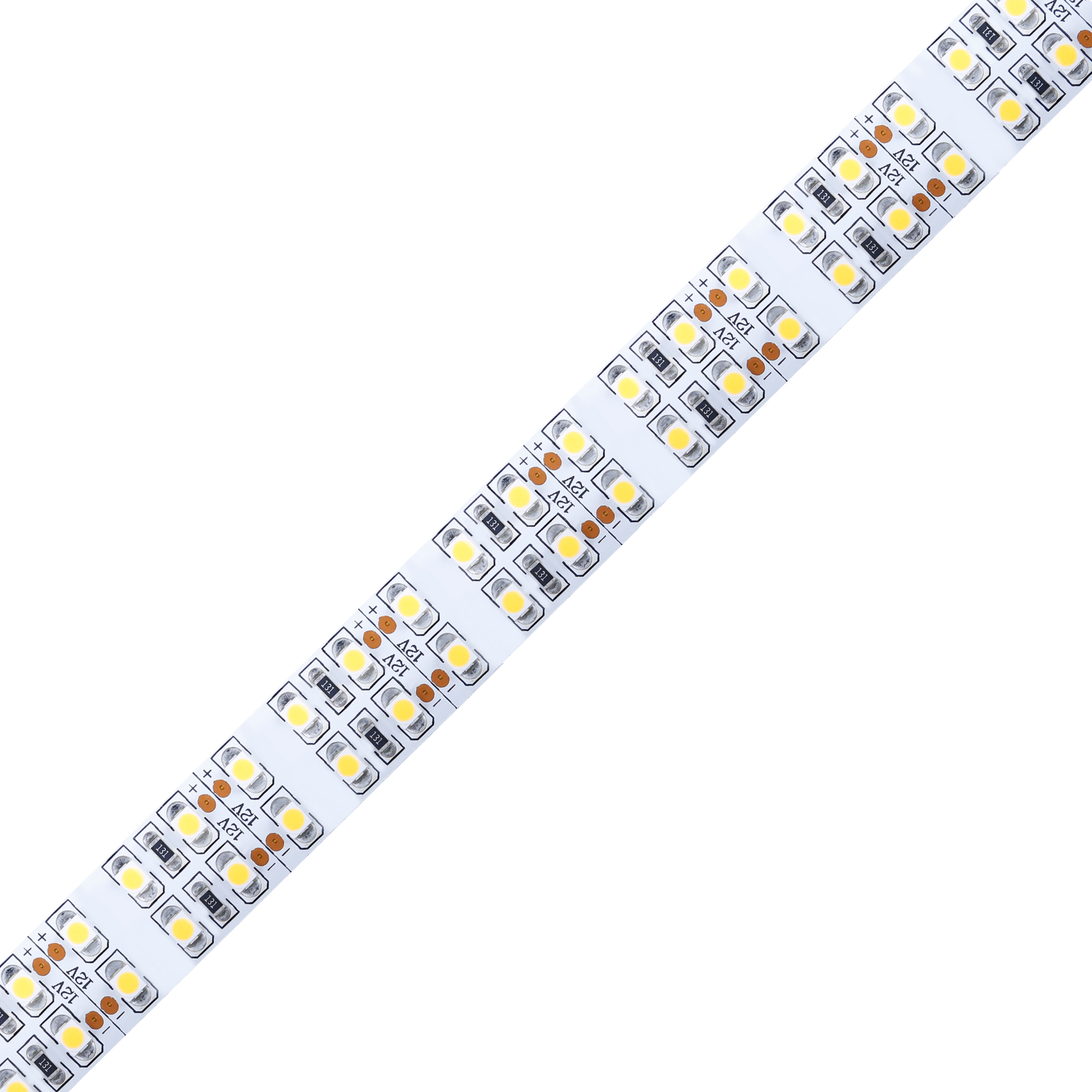

2835 SMD 240LEDs 10mm/15mm ( Double Row)
The 2835 SMD Double Row LED Strip at 240 LEDs per meter, it Specially designed for wide profiles, the 2835 Double Row LED Strip allows you to incorporate more lighting elements into your decor.
Specification:
- 6W/FT(18W/M)
- 32.8ft(10m) max.run length ( standard model)
- 120 degree beam angle
- IP20/65/ 67/IP68 rating
- 24V input
- Ambient Temperature -25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| Product Model | LEDs/m | Max Power(w/m) |
PCB Width(mm) |
Color Temperature |
Luminous efficacy(LM/W) |
Voltage(V) | Cut Length(mm) |
CRI |
| WP-2835-240D-10 | 240 | 18 | 10 | 2700K/4000K/6500K | 100-110 | 24 | 25 | 80/90/95+ |
| WP-2835-240D-15 | 240 | 18 | 15 | 2700K/4000K/6500K | 100-110 | 24 | 25 | 80/90/95+ |
