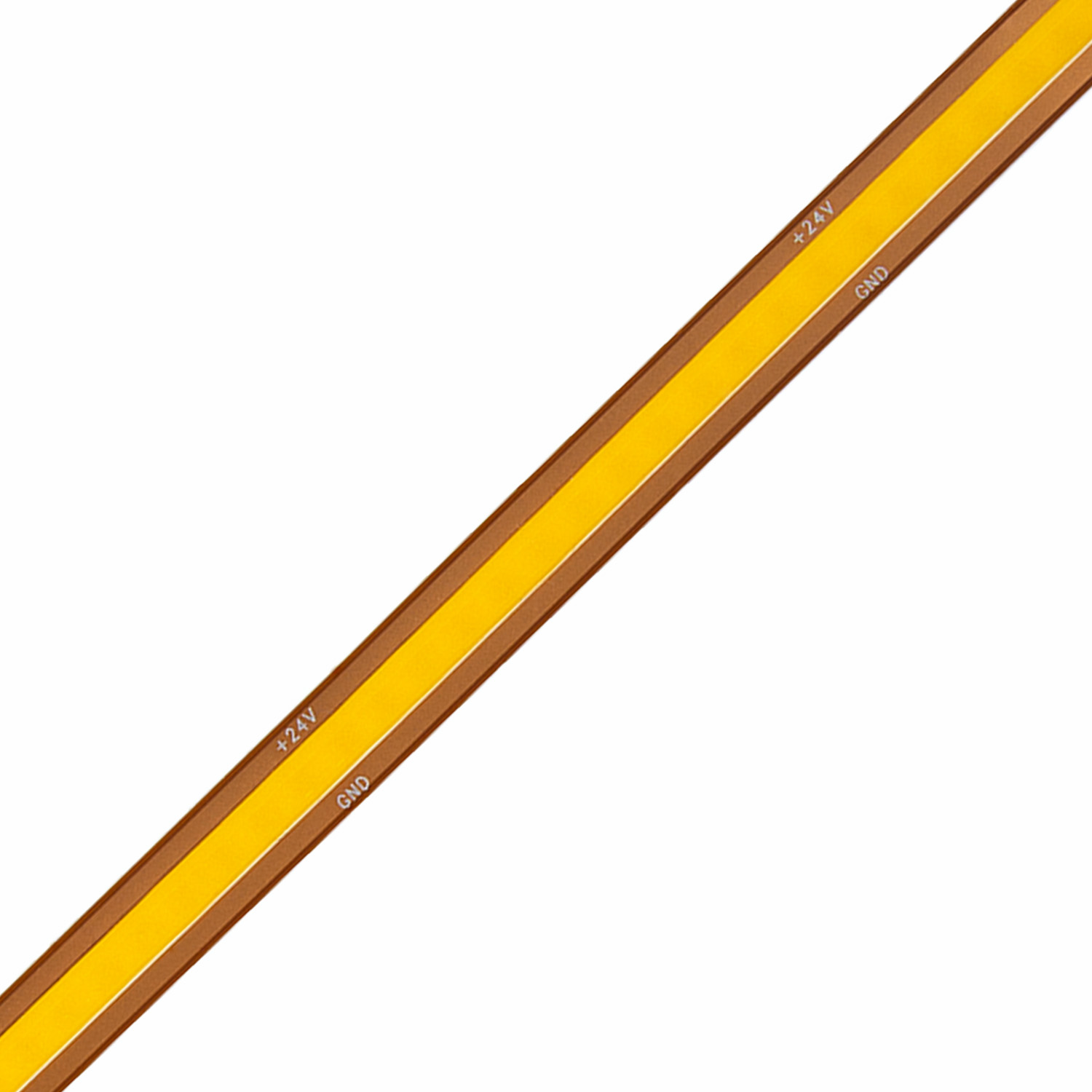

24V Free Cut Flexible COB LED Strip Light with 528chips/m 8mm Width
COB(Chip on Board) free cut led strip light features high density chips and 180 degree beam angle to achieve uniform light emission. While it has normal feature CRI>90,SMCM<3, it also adopts newest advantage with full copper FPCB.The minimum cutting length is 1MM, which greatly increases the cutting flexibility.
- 4.3W/FT(14.3W/M)
- 528 LED Chip/M
- 32.8ft(10m) max.run length(standard model)
- 180 degree beam angle
- Cut Length: 1MM
- IP20/65/67/68rating
- 24V input
- Ambient Temperature-25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| LEDs/m | Max Power(w/m) | PCB Width(mm) | Color Temperature | Luminous Efficacy(LM/W) | Voltage（V） | Cut Length(mm) | CRI |
| 528 | 14.3 | 8 | 2900-3100K | 63-77 | 12/24 | 1 | 90+ |
| 528 | 14.3 | 8 | 3900-4100K | 72-88 | 12/24 | 1 | 90+ |
| 528 | 14.3 | 8 | 6000-6500K | 81-99 | 12/24 | 1 | 90+ |
