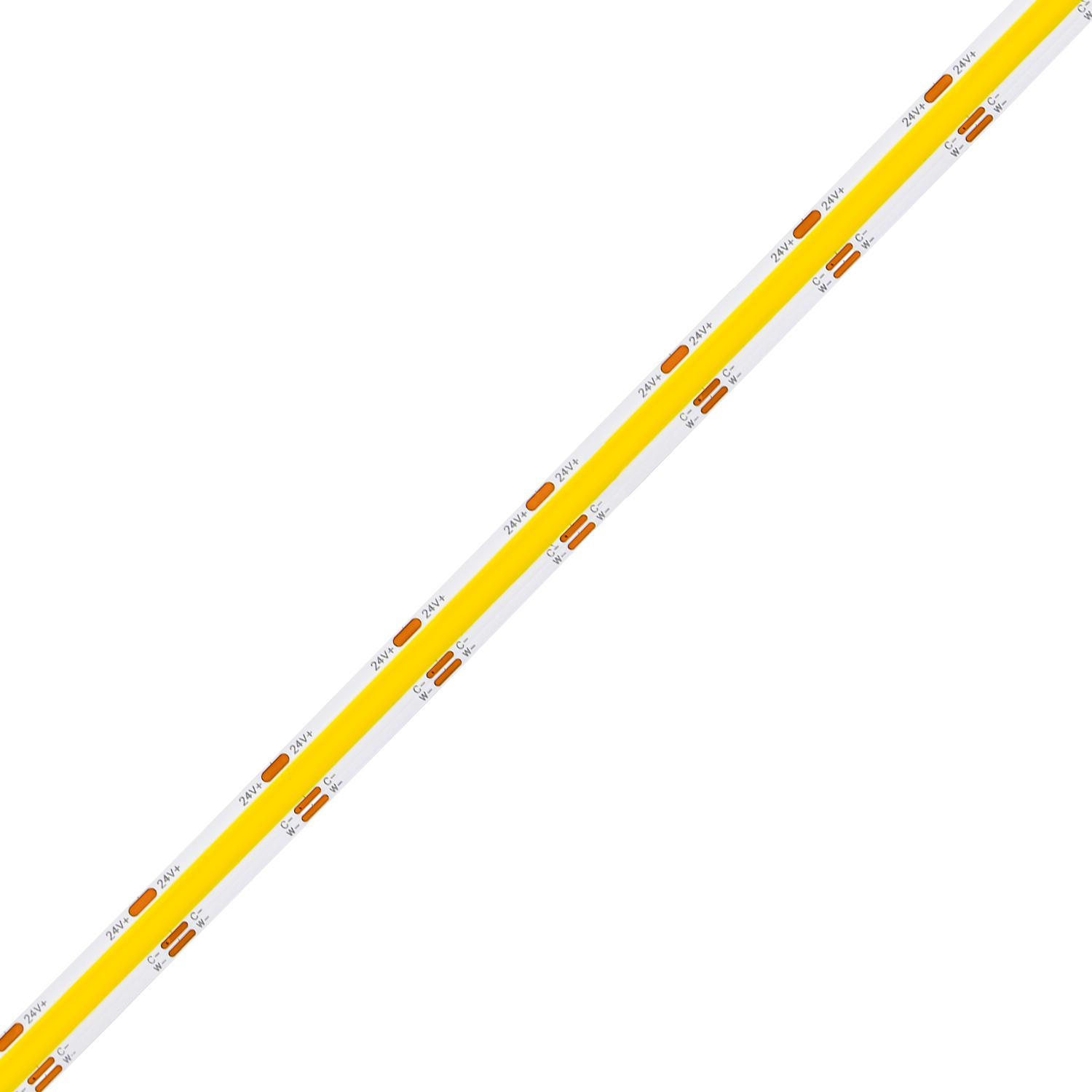

12V 24V High Quality COB tunable White Strip Light with 608 Chips/m 10/8/5mm Width
COB(Chip on Board)tunable white strip light uses high density chips with glue and 180 degree beam angle to achieve uniform light emission. Except normal feature like CRI>90,SDCM<3, tunable CCT the color temperature can be easily adjusted from warm to cool white(2600K-6500K). It can meet different atmosphere requirement.
- 4.62W/FT(15.4W/M)
- 608 LED Chip/M
- 32.8ft(10m) max.run length
- 180 degree beam angle
- Cut Length: 26.31MM
- IP20/65/67/68rating
- 24V input
- Ambient Temperature-25℃~+45℃
- Storage Temperature -25℃~+60℃
Specifications
| LEDs/m | Max Power(w/m) | PCB Width(mm) | Color Temperature | Luminous Efficacy(LM/W) | Voltage（V） | Cut Length(mm) | CRI |
| 608 | 13.2 | 5 | 2600-2800K | 72-88 | 12/24 | 26.31 | 90+ |
| 608 | 13.2 | 5 | 6000-6500K | 81-99 | 12/24 | 26.31 | 90+ |
| 608 | 13.2 | 8 | 2600-2800K | 72-88 | 12 | 13.16 | 90+ |
| 608 | 13.2 | 8 | 6000-6500K | 81-99 | 24 | 26.31 | 90+ |
| 608 | 15.4 | 10 | 2600-2800K | 72-88 | 12/24 | 26.31 | 90+ |
| 608 | 15.4 | 10 | 6000-6500K | 81-99 | 12/24 | 26.31 | 90+ |
