TM1814 Programmable RGBW/WW/NW/CW LED Strip

TM1814 RGBW Digital LED Strip

High quality 12v 5050 RGBW flexible TM1814 IC programmable strip led

RGBW = RGB +White (6000-65000k),RGBWW= RGB + Warm White (2800-3200k),RGBNW= RGB + Natural White (4000-4500k),RGBW = RGB + Cold White ( above 7000k),

Share This Product

Product Details

Features

TM1814 programmable rgbw led strip

  • 1, TM1814 LED strip, Tube waterproof IP67, white PCB, R/G/B/W 4 color in 1LED.

    2, 256 brightness display and 32-bit color display. Three pixel can have its own color and brightness. You can control them  and set them to any color or animation you want.

    3, Works great with ready-to-go library & example code for the Arduino UNO/Duemilanove/Diecimila, Flora/Micro/Leonardo, Trinket/Gemma, Arduino Due & Arduino Mega/ADK, FastLED library and Raspberry Pi.

    4,Comes with 3pin JST-SM connectors and separated power/ground wires on both ends. Three LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.

    5,Covered with clear silicone weatherproof sheathing, which protects it very well and makes it easy to clean. It also comes with some silicone clips and screws for easy installation.

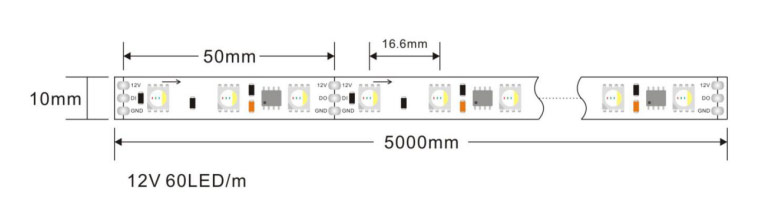

Dimension and conenct way

The diamension specific:

TM1814 Digital rgbw led strip

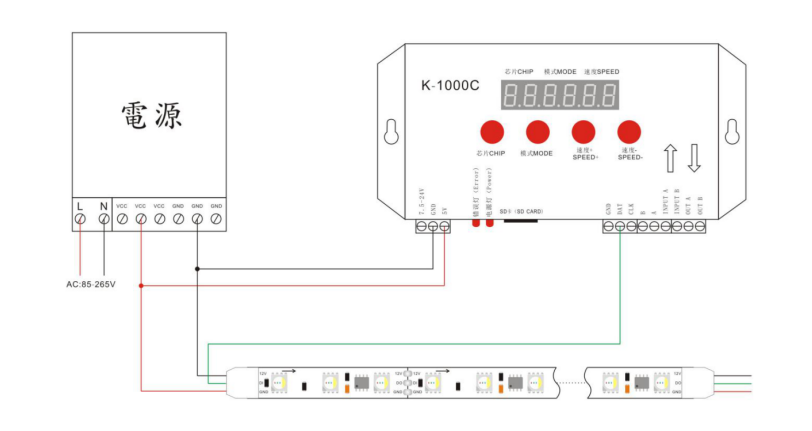

TM1814 connenct the K1000c controller

TM1814 digtal rgbw led strip connect way

Specifications

The product description :

Model number
WTP-TM1814 RGBW-60LED
 LED TYPEE
TM1814 5050 SMD LEDS
PCB color
white/black PCB
PCB Width
10mm
View angle
120 degree
LED QTY
60LEDS/M
POWER
19.2W/M
Voltage
DC12V
Installation
wiht 3M adhesive back ,easy for installation
IP rate
IP20(non -waterproof /IP67(Silicon tube  waterproof )
Package
5M/reel .with anti-static bag  ,or customized

specifications-1a

Note, the above optical parameters, models X represents optionally, color, water level, the index display. Etc., please indicate clearly when ordering.

Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees

testing time light fades rate
500H 0%
1000H 0%
2000H 0.5%
4000H 1.2%
6000H 2%

Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters

Diagram

Strip cut schematic

diagram_02

LED strip wiring diagram

diagram_04
diagram_05
diagram_06
diagram_07

LED strip wiring diagram

diagram_09
diagram_10
diagram_11
diagram_12

Installation wiring diagram

diagram_14
diagram_15
diagram_16

IP62,IP65 the installation diagram

diagram_18
diagram_19
diagram_20

IP67,IP68 the installation diagram

diagram_23 diagram_24

Applications

application

  • City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
  • Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
  • establishments ceiling cavity design)
  • Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
  • Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
  • Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
  • Please read the specifications and precautions carefully before installation
  • Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
  • Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
  • This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
  • correct or not , so that avoid the product been burned
  • This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
