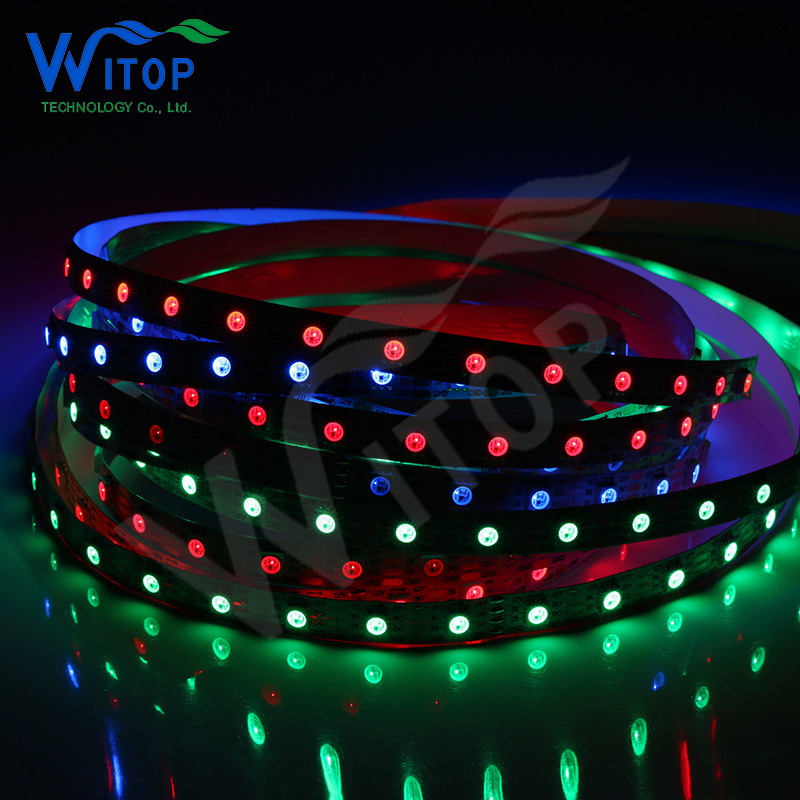

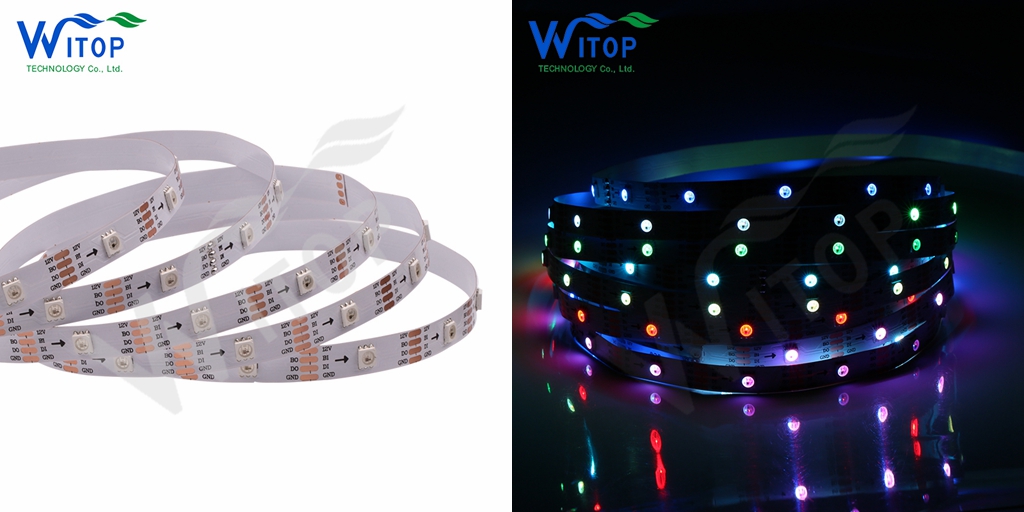

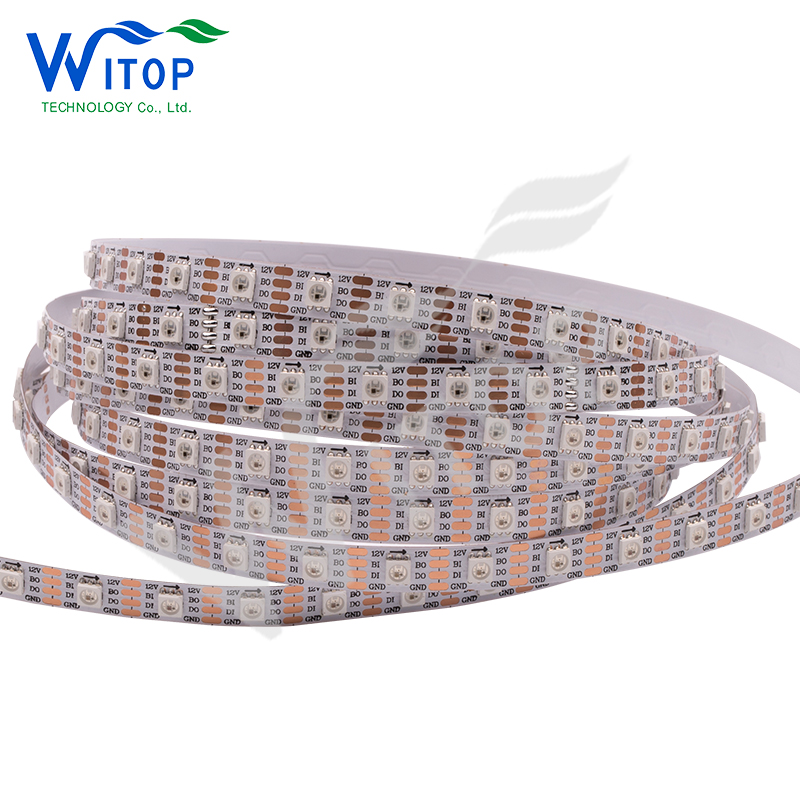

Updated 12V Individually Addressable RGB Led Strip–WS2815B

WS2812B LED STRIP

  • WS2815 is DC12V power supply,one IC with one led,individually addressable controlled
  • High brightness SMD5050 RGB led chip,and work 50000 hours

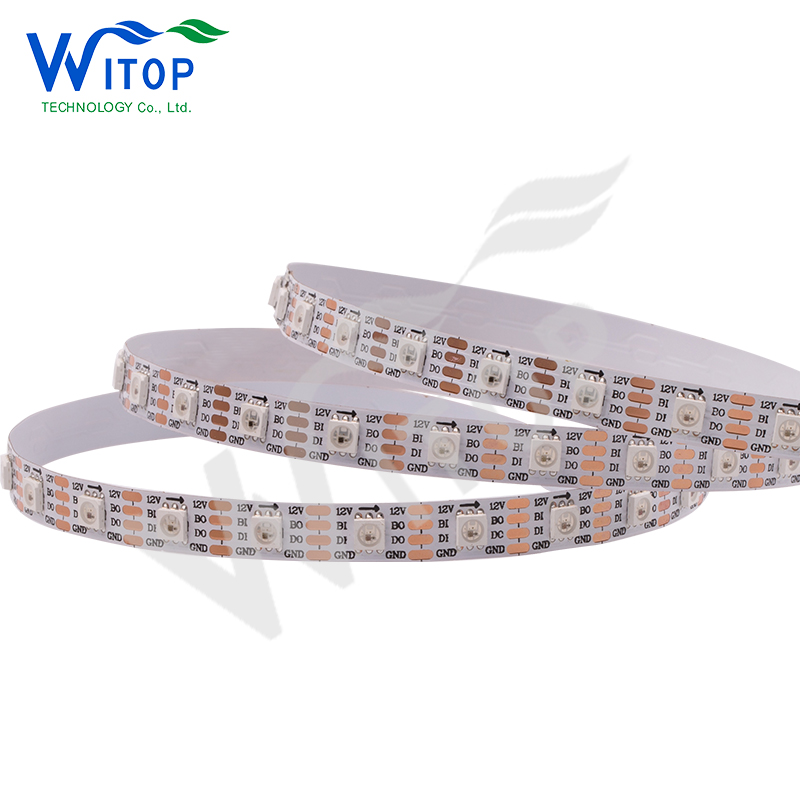

  • WS2815 had 4 wires:two power wires(12V and GND),two data wires(BI and DI)

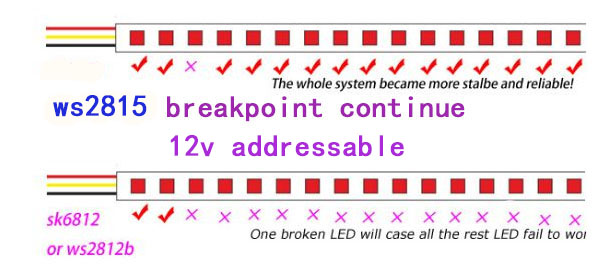

  • WS2815 is breakpoint continute led strip,one led broken and other still can work
  • WS2815 IC:PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect
Share This Product

Product Details

Features

  • WS2815 is the breakpoint continute led strip,one led broken and others still can work.
  • DC12V individually addressable led strip,voltage is different from WS2812B and WS2813.

  • We have 30/60/96/144 leds/M,high density led strip
  • Also IP20/IP65/IP67/IP68 waterproof we can offer too.
Specifications

1 meter led strip Specifications

No Model SMD Type Led QTY IC QTY Pixels Voltage
(DC-V)
Power
(W/M)
Grey
Scale
PCB Width
(mm)
PCB Color Specification
3.1 WS2815-30 5050RGB 30 30 30 12 7.2 256 10 white/black Built-in WS2815 IC
V+,BI,DI,GND(Two datas lines)
Breakpiont,one led broken,other still can work.
3.2 WS2815-60 5050RGB 60 60 60 12 14.4 256 10 white/black
3.3 WS2815-96 5050RGB 96 96 96 12 21.6 256 12 white/black
3.4 WS2815-144 5050RGB 144 144 144 12 34.56 256 12 white/black

Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees

testing time light fades rate
500H 0%
1000H 0%
2000H 0.5%
4000H 1.2%
6000H 2%

Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters

Diagram

Strip cut schematic

diagram_02

LED strip wiring diagram

diagram_04
diagram_05
diagram_06
diagram_07

LED strip wiring diagram

diagram_09
diagram_10
diagram_11
diagram_12

Installation wiring diagram

diagram_14
diagram_15
diagram_16

IP62,IP65 the installation diagram

diagram_18
diagram_19
diagram_20

IP67,IP68 the installation diagram

diagram_23 diagram_24

Applications

application

  • City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
  • Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
  • establishments ceiling cavity design)
  • Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
  • Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
  • Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
  • Please read the specifications and precautions carefully before installation
  • Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
  • Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
  • This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
  • correct or not , so that avoid the product been burned
  • This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
