2110 LED Strip Series

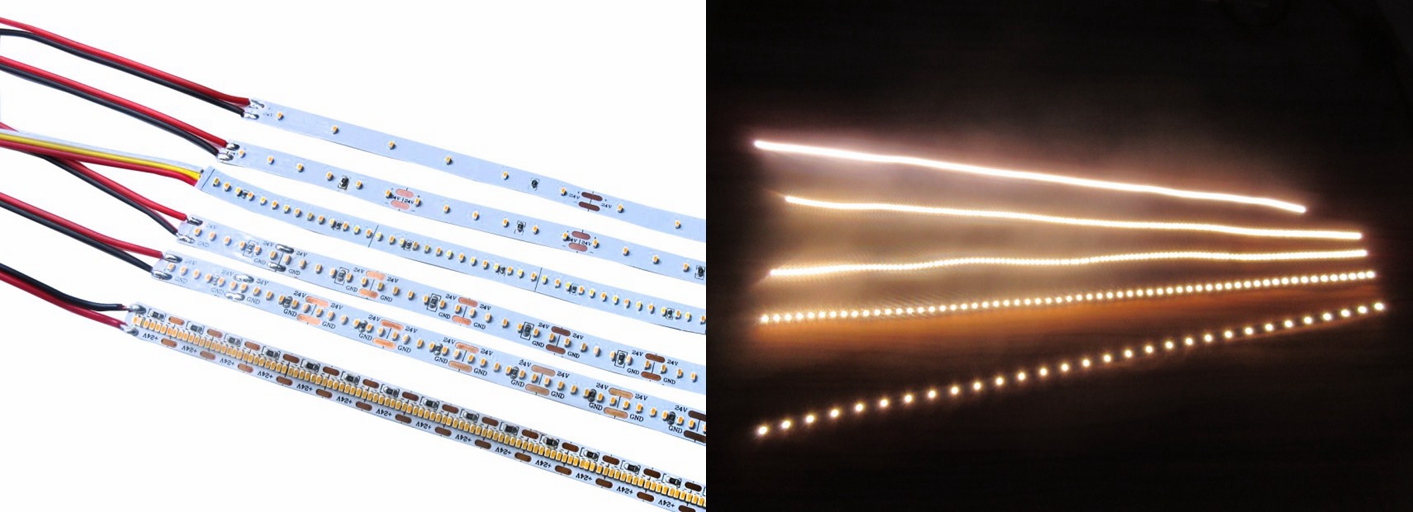

2110 LED Strip-60leds/120leds/240leds/300leds/308leds/700leds
2110 this model only support DC 24V, the led quantity support 60/120/240/280/300/308/700 PCS. And strip supported warm white, nature white and cold white. The color temperature between 2300K to 6500K. It can be replaced with the 2216,2835,3014,3528 like these white color led strips. And the functions more better. CRI 90,one bin only.Maybe some people not very understand what is one bin only, here I can explain. One bin only means the led chip color is only one color. Sometimes the led chips would appear the two bin, three bin that will make the led strip lighting different color temperature.

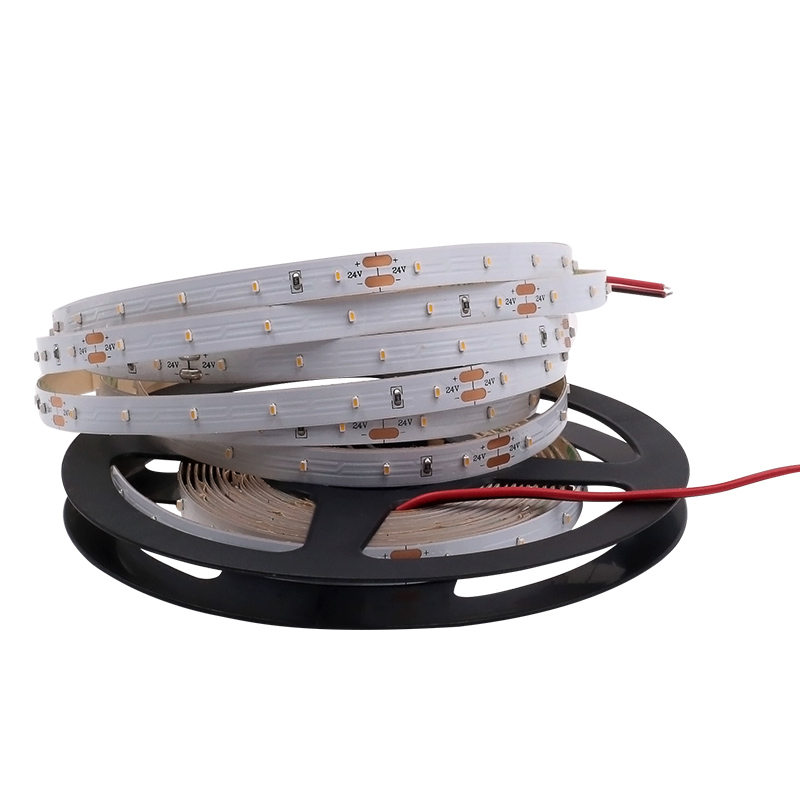

1, 60 LEDS per meter, 5-6 lm per led,300Lm/M,Power 4.8W/M,125 lm/W,PCB Width 8mm.
2, 120 LEDS per meter, 2.5 lm per led,600 lm/M, Power 4.8W/M ,125 lm/W,PCB Width 8mm.
3, 240 LEDS per meter, 2.5 lm per led, 1200 lm/M, Power 9.6W/M, 125 lm/W,PCB Width 8mm.
4, 280 LEDS per meter , 2.5 lm per led, 700 lm/M , Power 9.6W/M, 72.9 lm/W,PCB Width 4mm.
5, 300 LEDS per meter, 2.5 lm per led, 1500 lm/M,Power 12W/M, 125 lm/W ,PCB Width 8mm.
6, 308 LEDS per meter, 2.5 lm per led, 1540 lm/M, Power 10.56W/M, 145.8 lm/W, PCB Width 8mm. This led strip is double temperature , one Warm white led +one Nature white led or Cold white led on the one pcb.

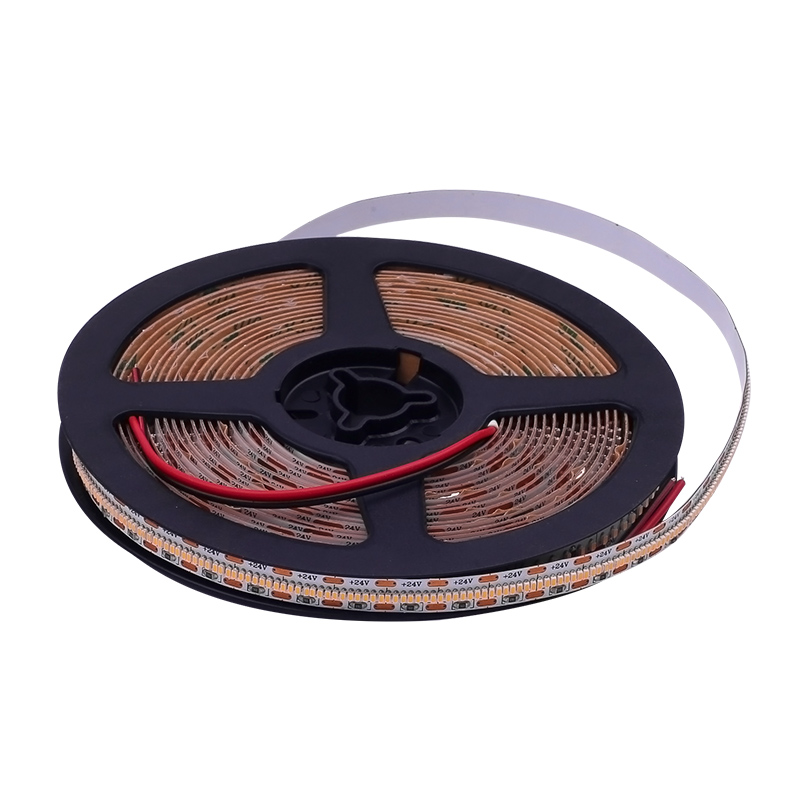

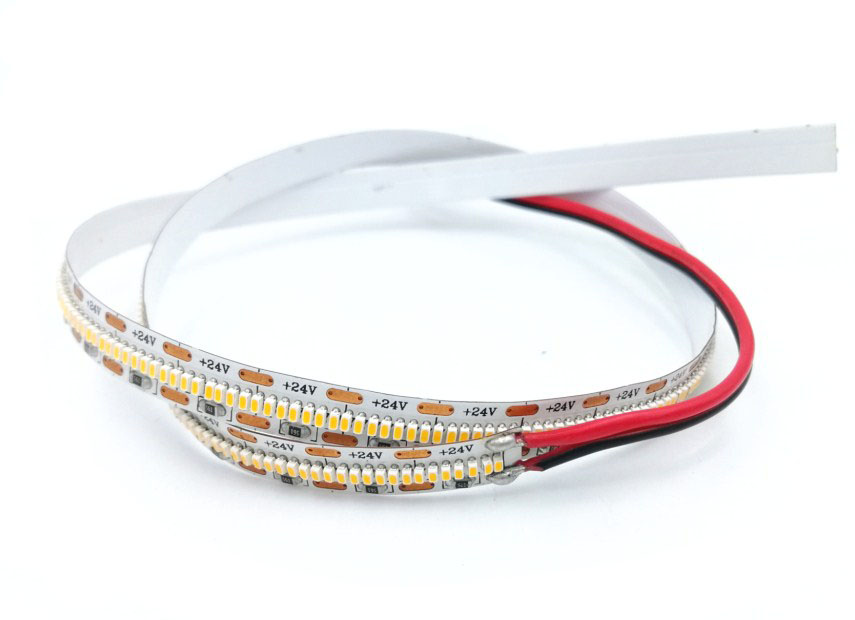

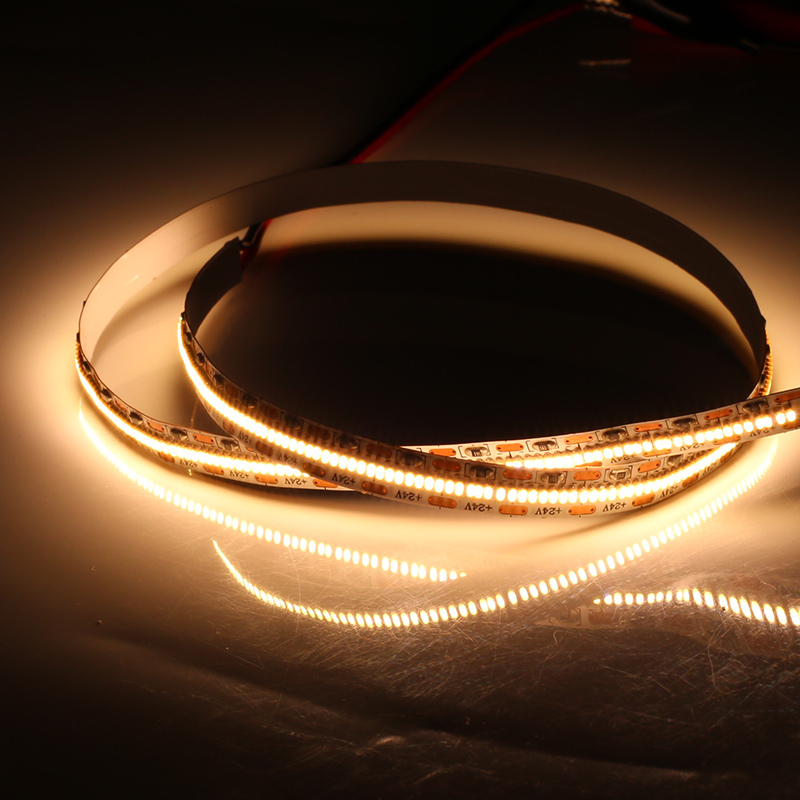

7, 700 LED per meter, 2.5 lm per led, 3500 lm/M, Power 19.2 W/M, 125 lm/W,PCB Width 8mm.
The led strip support waterproof IP20,IP65,IP67,IP68. The materials support silicone glue, silicone tube and NEON tube.
Share This Product
Product Details
Features
2110 this model only support DC 24V, the led quantity support 60/120/240/280/300/308/700 PCS. And strip supported warm white, nature white and cold white. The color temperature between 2300K to 6500K. It can be replaced with the 2216,2835,3014,3528 like these white color led strips. And the functions more better. CRI 90,one bin only.Maybe some people not very understand what is one bin only, here I can explain. One bin only means the led chip color is only one color. Sometimes the led chips would appear the two bin, three bin that will make the led strip lighting different color temperature.
1, 60 LEDS per meter, 5-6 lm per led,300Lm/M,Power 4.8W/M,125 lm/W,PCB Width 8mm.
2, 120 LEDS per meter, 2.5 lm per led,600 lm/M, Power 4.8W/M ,125 lm/W,PCB Width 8mm.
3, 240 LEDS per meter, 2.5 lm per led, 1200 lm/M, Power 9.6W/M, 125 lm/W,PCB Width 8mm.
4, 280 LEDS per meter , 2.5 lm per led, 700 lm/M , Power 9.6W/M, 72.9 lm/W,PCB Width 4mm.
5, 300 LEDS per meter, 2.5 lm per led, 1500 lm/M,Power 12W/M, 125 lm/W ,PCB Width 8mm.
6, 308 LEDS per meter, 2.5 lm per led, 1540 lm/M, Power 10.56W/M, 145.8 lm/W, PCB Width 8mm. This led strip is double temperature , one Warm white led +one Nature white led or Cold white led on the one pcb.
7, 700 LED per meter, 2.5 lm per led, 3500 lm/M, Power 19.2 W/M, 125 lm/W,PCB Width 8mm.
The led strip support waterproof IP20,IP65,IP67,IP68. The materials support silicone glue, silicone tube and NEON tube.

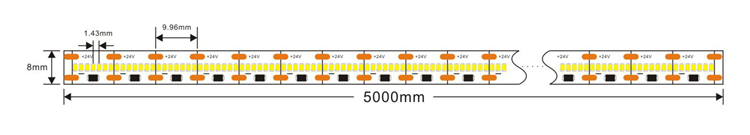

Dimension

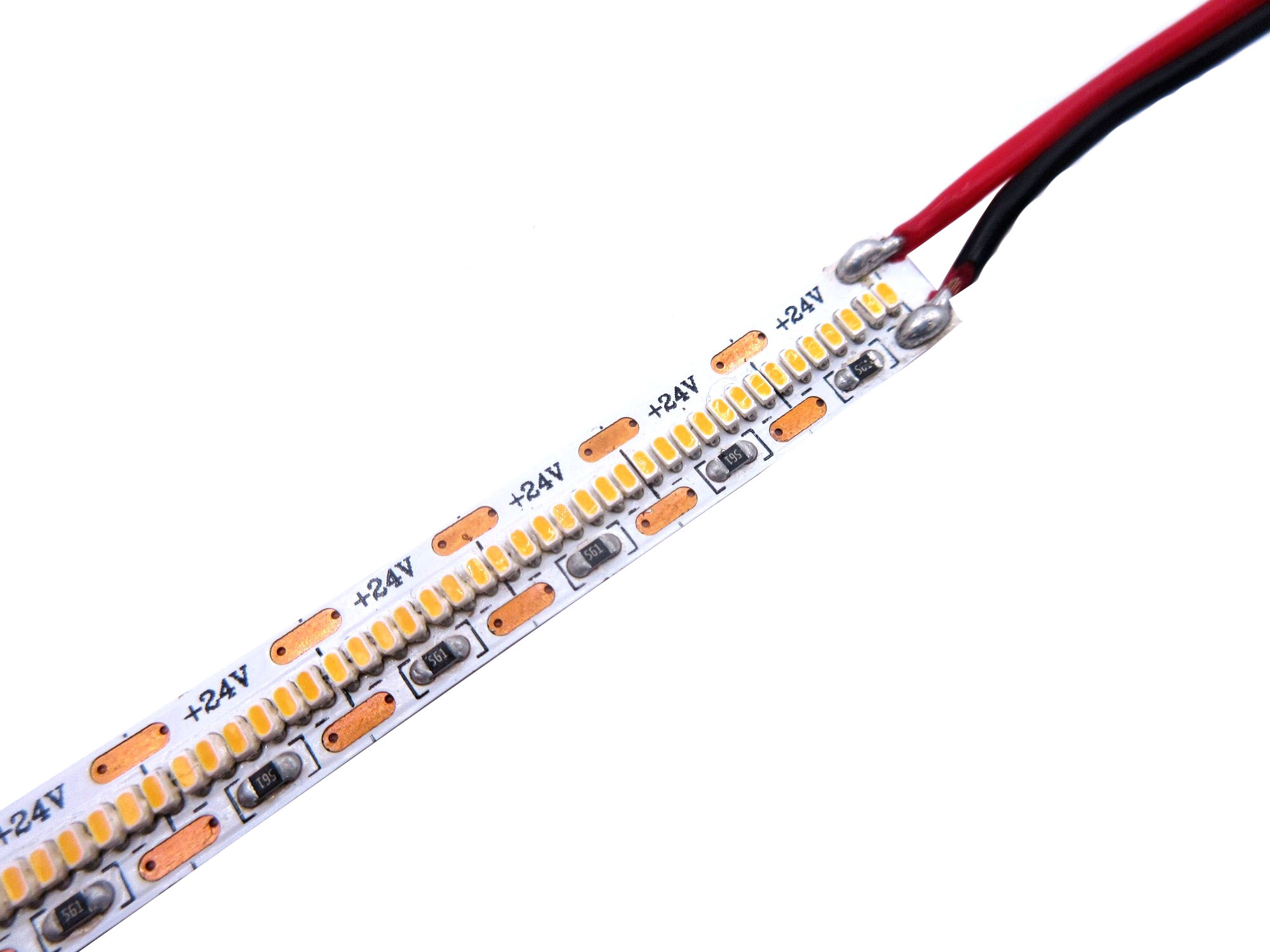

700leds/M,8mm PCB Width,3oz PCB thickness.
Specifications
1 meter led strip Specifications
|
Model number
|
WTP-2110-700leds/M
|
||
|
LED TYPE
|
SMD2110 | ||
|
LM
|
3500lm/M
|
||
|
LED QTY
|
700LEDS/M
|
||
|
PCB Color
|
White
|
||
|
PCB Width
|
8mm
|
||
|
POWER
|
24W/M
|
||
|
Voltage
|
DC24V
|
||
|
Installation
|
With 3M adhesive back ,easy for installation
|
||
|
IP rate
|
IP20(non-waterproof)/IP65(Silicon Glue) /IP67(Silicon Tube)/IP68(Silicon Glue+Tube)
|
||
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
