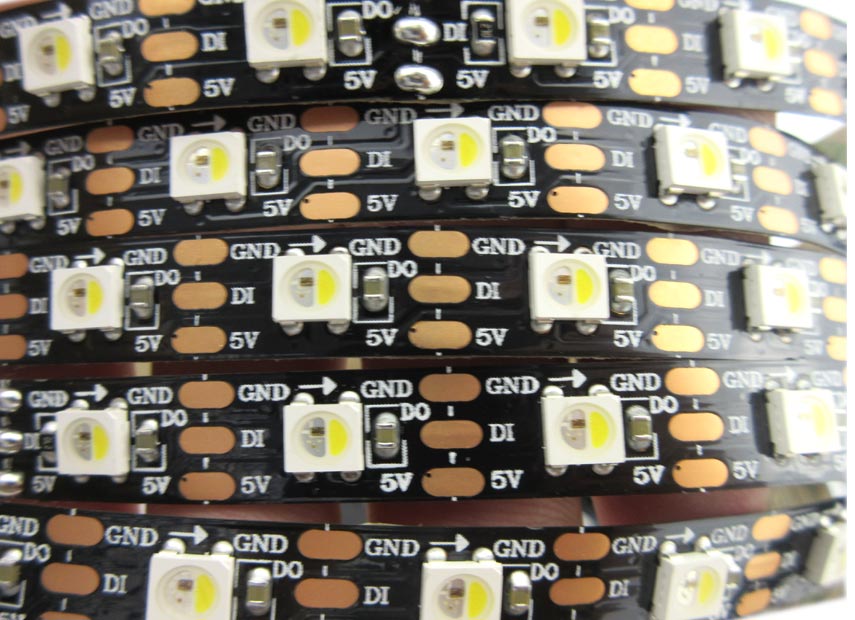

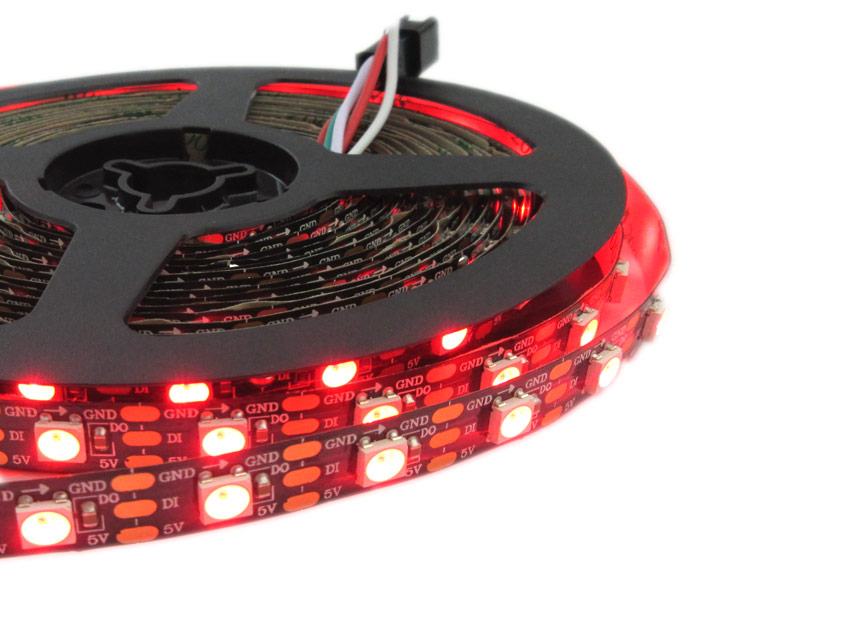

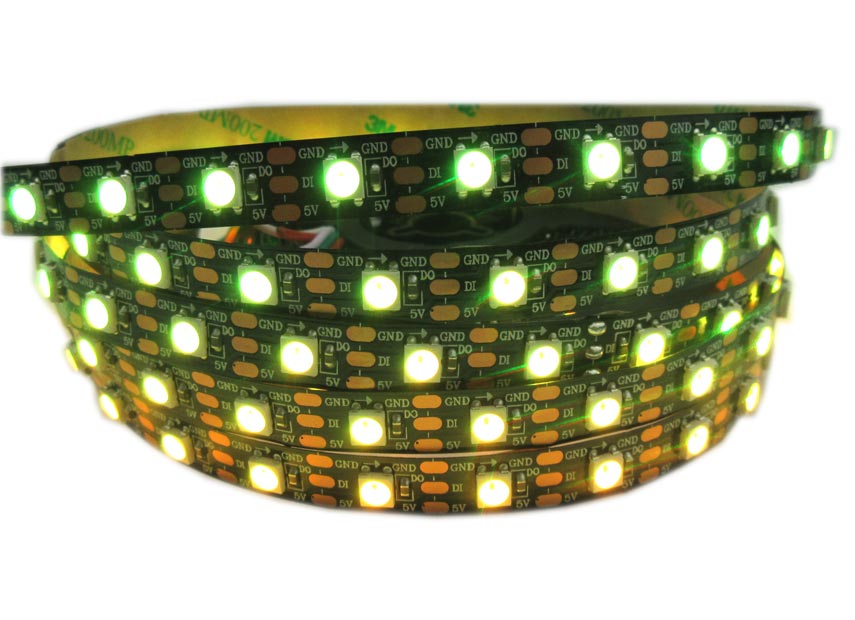

SK6812 RGBW Programmable LED Strip Light
SK6812 rgbw Addressable LED Strip

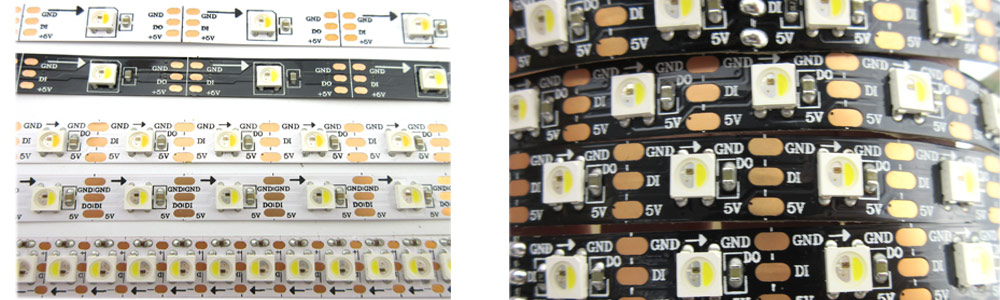

- SK6812 LED strip, 16.4ft 300 LEDs, Tube waterproof IP67, white PCB, R/G/B/W 4 color in 1LED. It is the upgraded version of WS2812B LED.
- 256 brightness display and 32-bit color display. Each pixel can have its own color and brightness. You can control them individually and set them to any color or animation you want.
- Works great with ready-to-go library & example code for the Arduino UNO/Duemilanove/Diecimila, Flora/Micro/Leonardo, Trinket/Gemma, Arduino Due & Arduino Mega/ADK, FastLED library and Raspberry Pi.
- Comes with 3pin JST-SM connectors and separated power/ground wires on both ends. Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.
- Covered with clear silicone weatherproof sheathing, which protects it very well and makes it easy to clean. It also comes with some silicone clips and screws for easy installation.
Share This Product
Product Details
Features
-

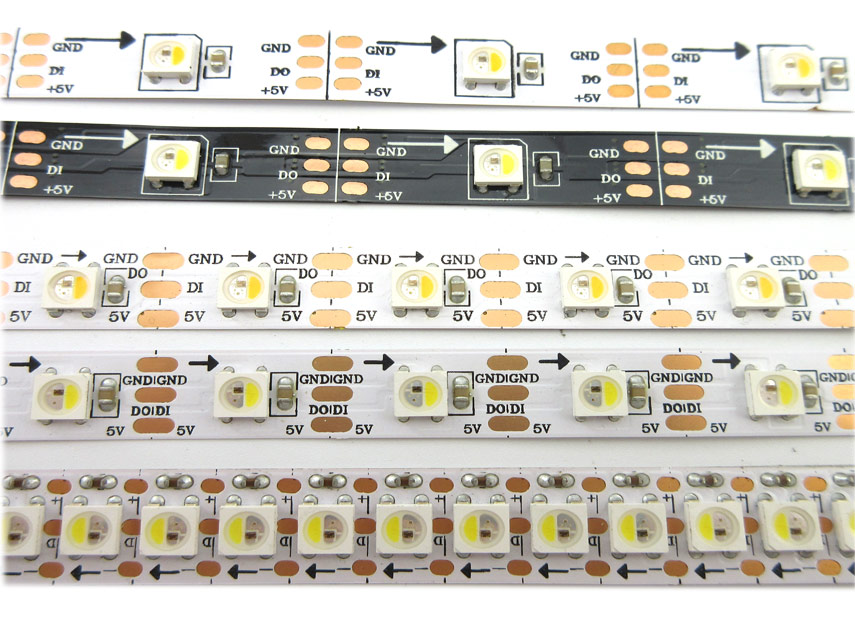

RGBW = RGB + Cold White (6000-7000k),RGBWW= RGB + Warm White (2700-3200k),RGBNW= RGB + Natural White (4000-4500k),RGBW = RGB + Cold White (6000-7000k),WWA = White + Warm White + Amber
-
LED source :5050SMD RGBW/WW/WWA built-in SK6812 chipSK6812RGBW/RGBWW/RGBNW is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of thepixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator. The data protocol being used is unipolar NRZ communication mode. The 32-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed. The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.
Dimension
Specifications
1 meter led strip Specifications
he product description of China supplier 5m/roll 60leds/m 4 colors in 1 Digital SK6812 RGBW RGBWW led strip
|
Model number
|
WTP-SK6812 RGBW-60LED
|
||
|
LED TYPEE
|
sk6812 SMD LEDS
|
||
|
PCB color
|
white/black PCB
|
||
|
PCB Width
|
10mm
|
||
|
View angle
|
120 degree
|
||
|
LED QTY
|
60LEDS/M
|
||
|
POWER
|
18W/M
|
||
|
Voltage
|
DC5V
|
||
|
Installation
|
wiht 3M adhesive back ,easy for installation
|
||
|
IP rate
|
IP20(non -waterproof /IP67(Silicon tube waterproof )
|
||
|
Package
|
5M/reel .with anti-static bag ,or customized
|
||
Note, the above optical parameters, models X represents optionally, color, water level, the index display. Etc., please indicate clearly when ordering.
Light decay parameters test the ambient temperature of 25 degrees plus or minus 3 degrees
| testing time | light fades rate |
| 500H | 0% |
| 1000H | 0% |
| 2000H | 0.5% |
| 4000H | 1.2% |
| 6000H | 2% |
Note, due to the particularity LED product manufacturing process, technical parameters above reflect only the statistics ,do not necessarily correspond to the actual parameters of each product, the product may differ from the actual parameters of the above parameters
Diagram
Strip cut schematic
LED strip wiring diagram
LED strip wiring diagram
Installation wiring diagram
IP62,IP65 the installation diagram
IP67,IP68 the installation diagram
Applications
- City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
- Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
- establishments ceiling cavity design)
- Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
- Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
- Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes
- Please read the specifications and precautions carefully before installation
- Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
- Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
- This product is a constant voltage DC5V, make sure Power is right before installation, after installation, check the wiring is
- correct or not , so that avoid the product been burned
- This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
